Curtain Tracks Functional

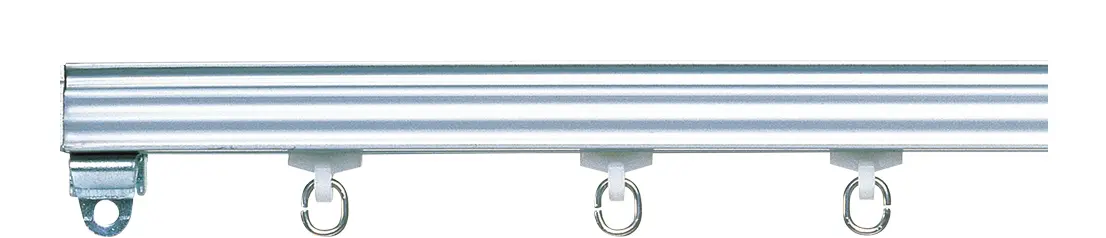

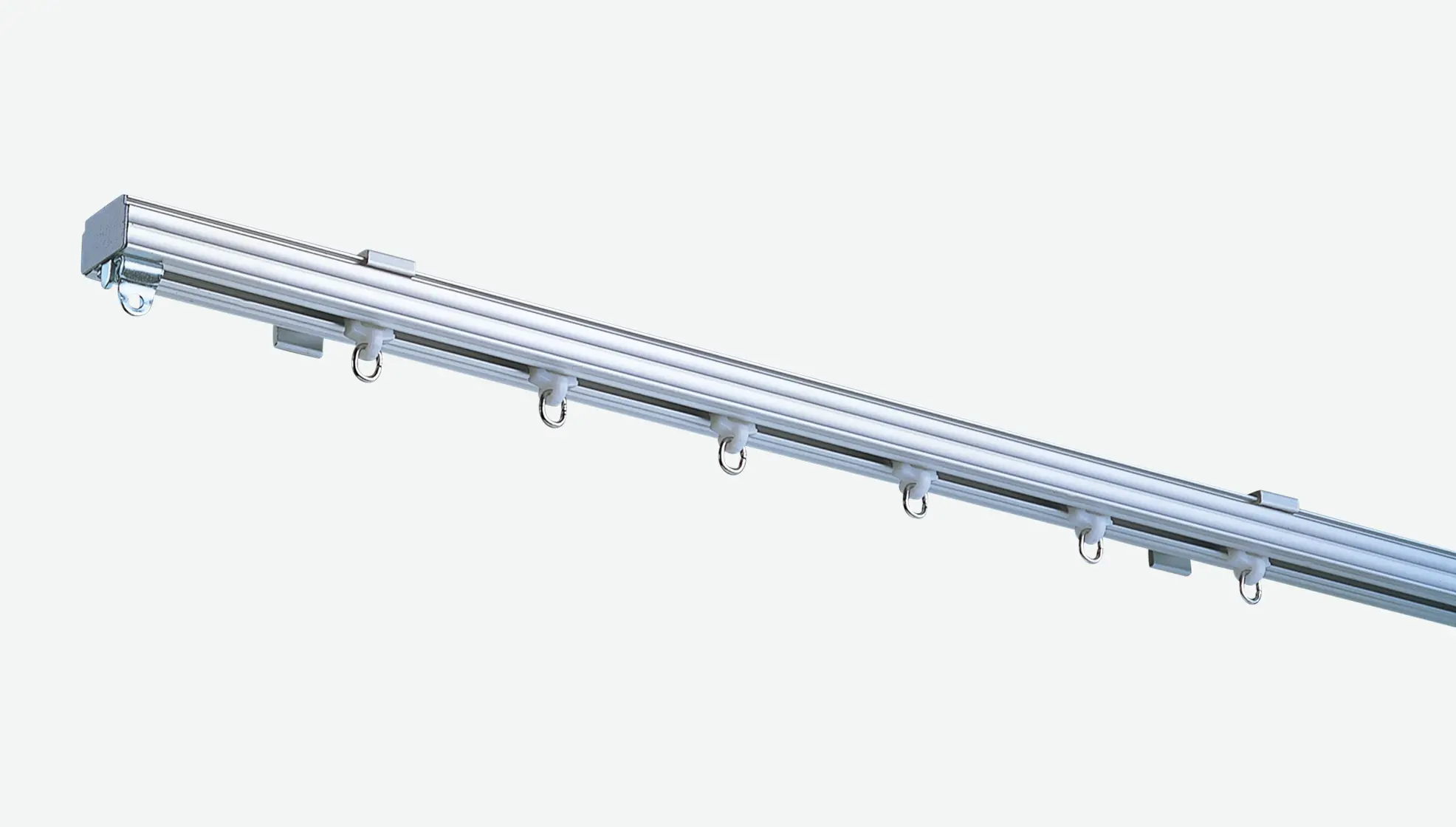

Supertrac

Rollers assure smooth operation even with heavy curtains.
Manual, cord draw and motor operation are possible.
Can also be used for skylights, curved rails, IV bottles and picture rails.

Feature

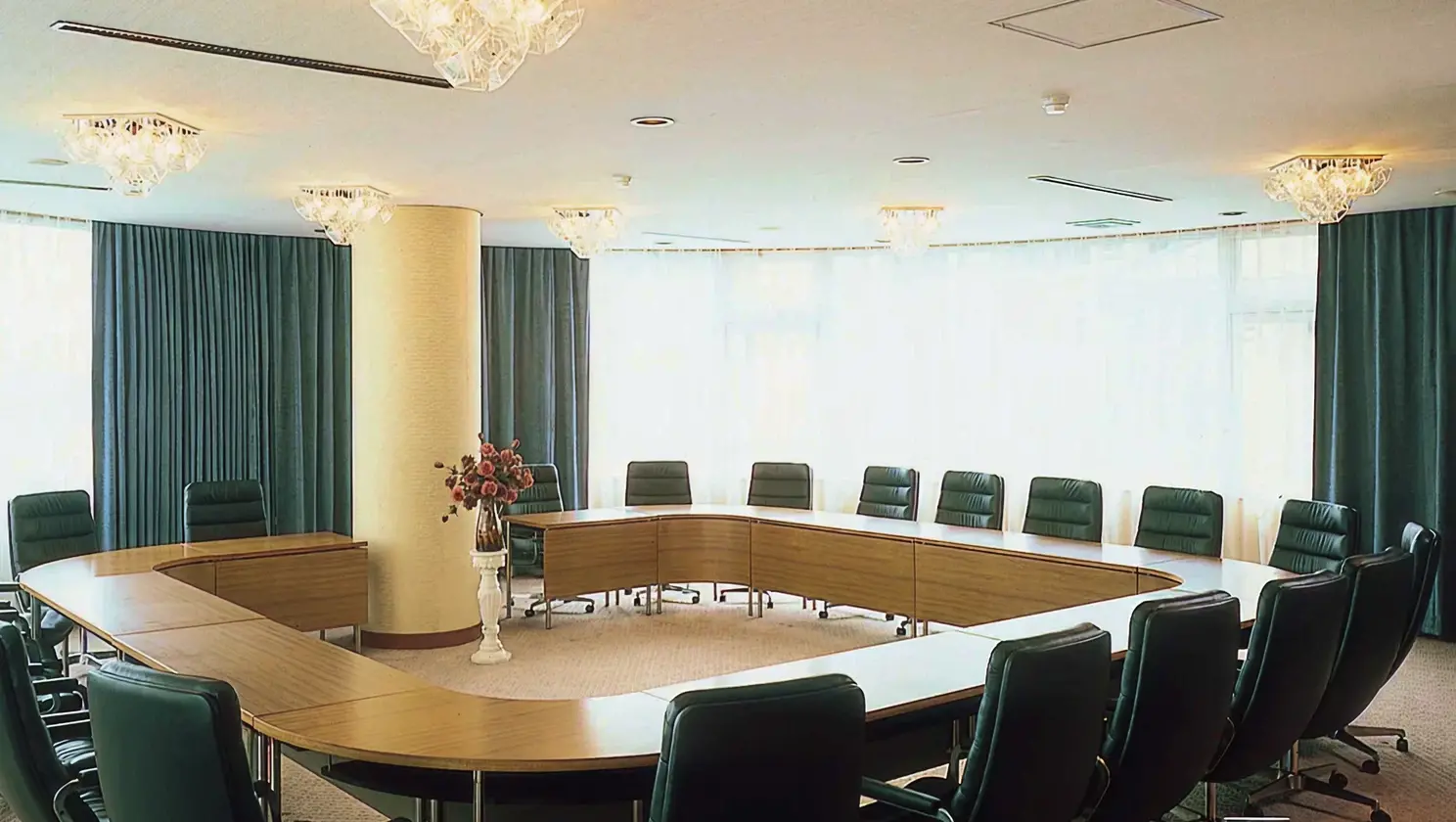

Motor operation using a curtain
motor is another choice.

Extremely convenient for use with wide curtains or curtains located in high positions, and for opening and closing heavy curtains.

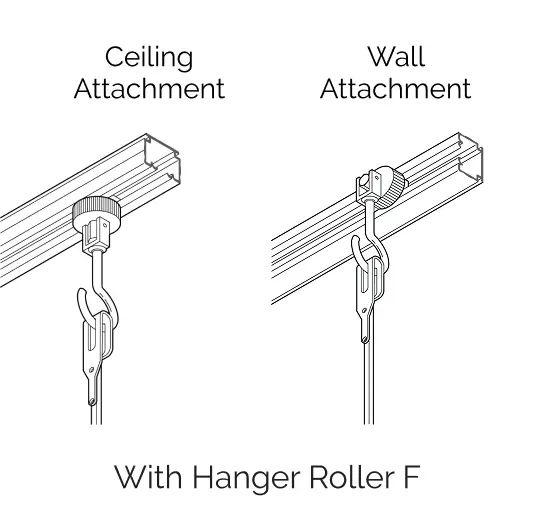

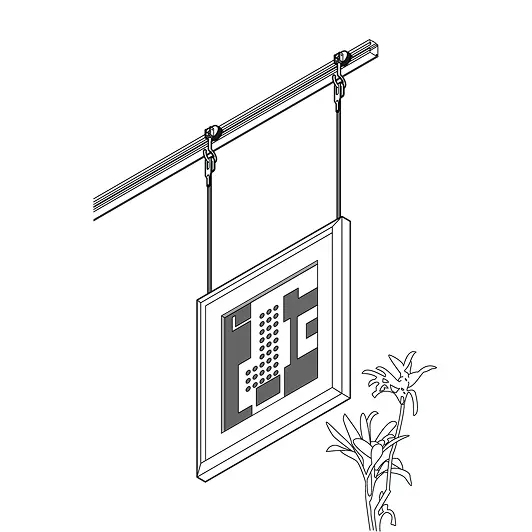

Useful as picture rail.

A wide range of IV rail parts are available.

The Roller is designed to automatically lock with the weight of an IV bottle and to effectively reduce noise.

For Curved Rail

As well as a regular cord draw, cord draws with special specifications can also be installed without any difficulty. Convenient cord-draw parts kits are also available.

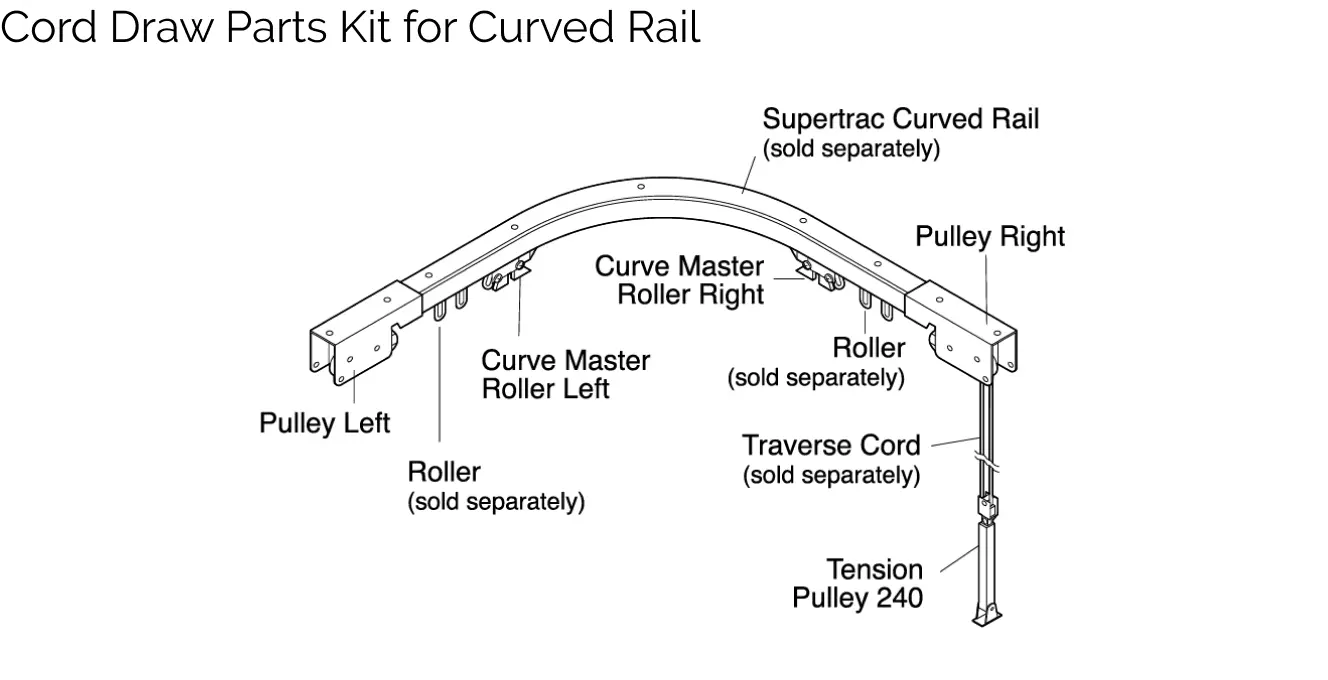

Cord Draw Parts Kit for Curved Rail

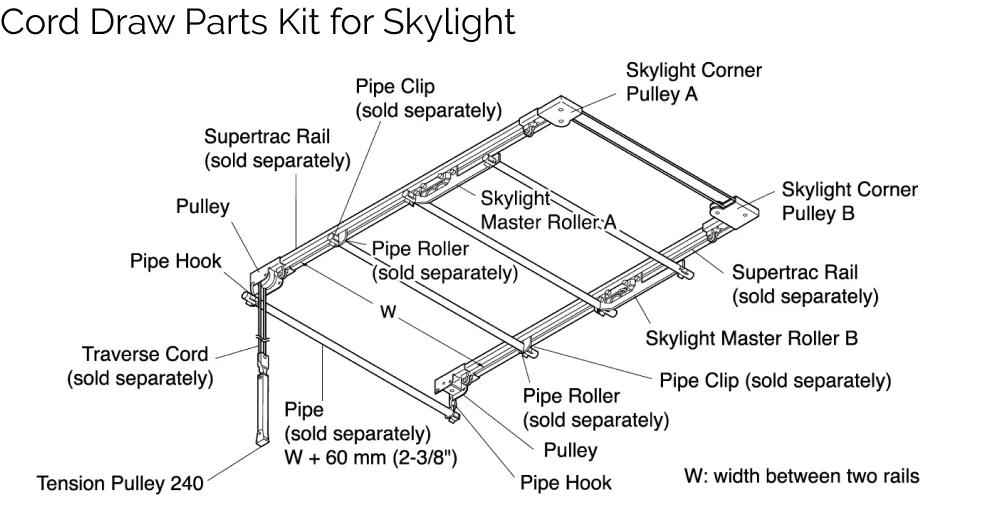

Cord Draw Parts Kit for Skylight

Supertrac Rail, Roller and Traverse Cord (3.5 mm/ 138") are not included.

Cord Draw Parts Kit for Overlap Rail

Supertrac Rail, Roller, Traverse Cord (3.5 mm/ 138"), Tension Pulley and installation screws are not included.

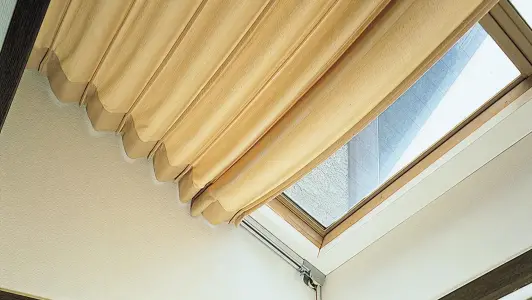

For Skylight

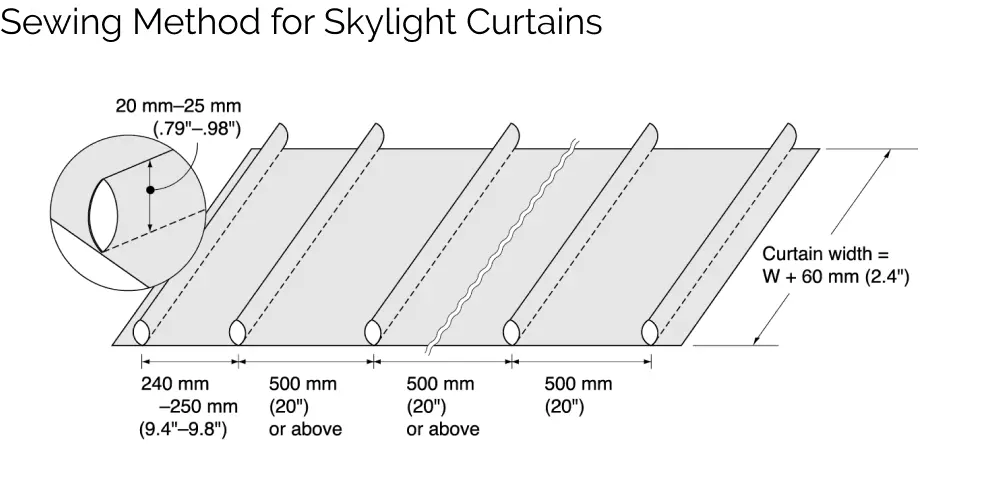

French seams to insert pipes should be 20–25 mm (.79"–.98").
Intervals between rollers should be of equal width and
over 500 mm (20") except for Skylight Master Rollers (240–250 mm/9.4"–9.8").
Curtain width is the same size (Width + 60 mm/2.4") as the pipe.
