Curtain Tracks Decorative

New Delac
with Wave
Style
Components

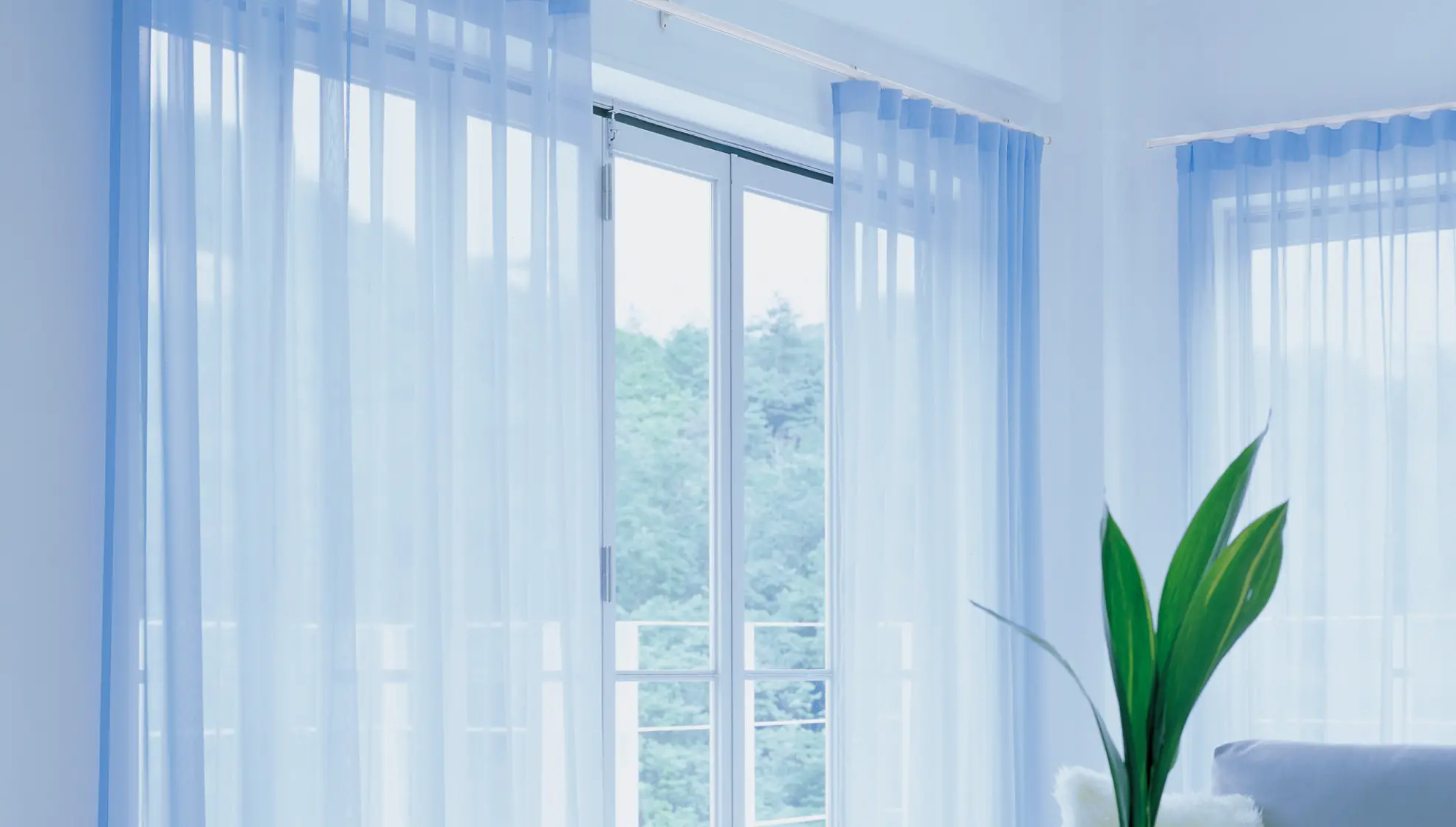

New Delac with Wave Style Components
New Delac with Wave Style Components
  • Feature
  • Structure
  • Details
  • The Wave Style brings out the feeling of naturally fabric.
  • Wheel type Rollers achieve super smooth operation.
  • Exceptional durability satisfying the strict demands of a 10,000 open/ close test.

Feature

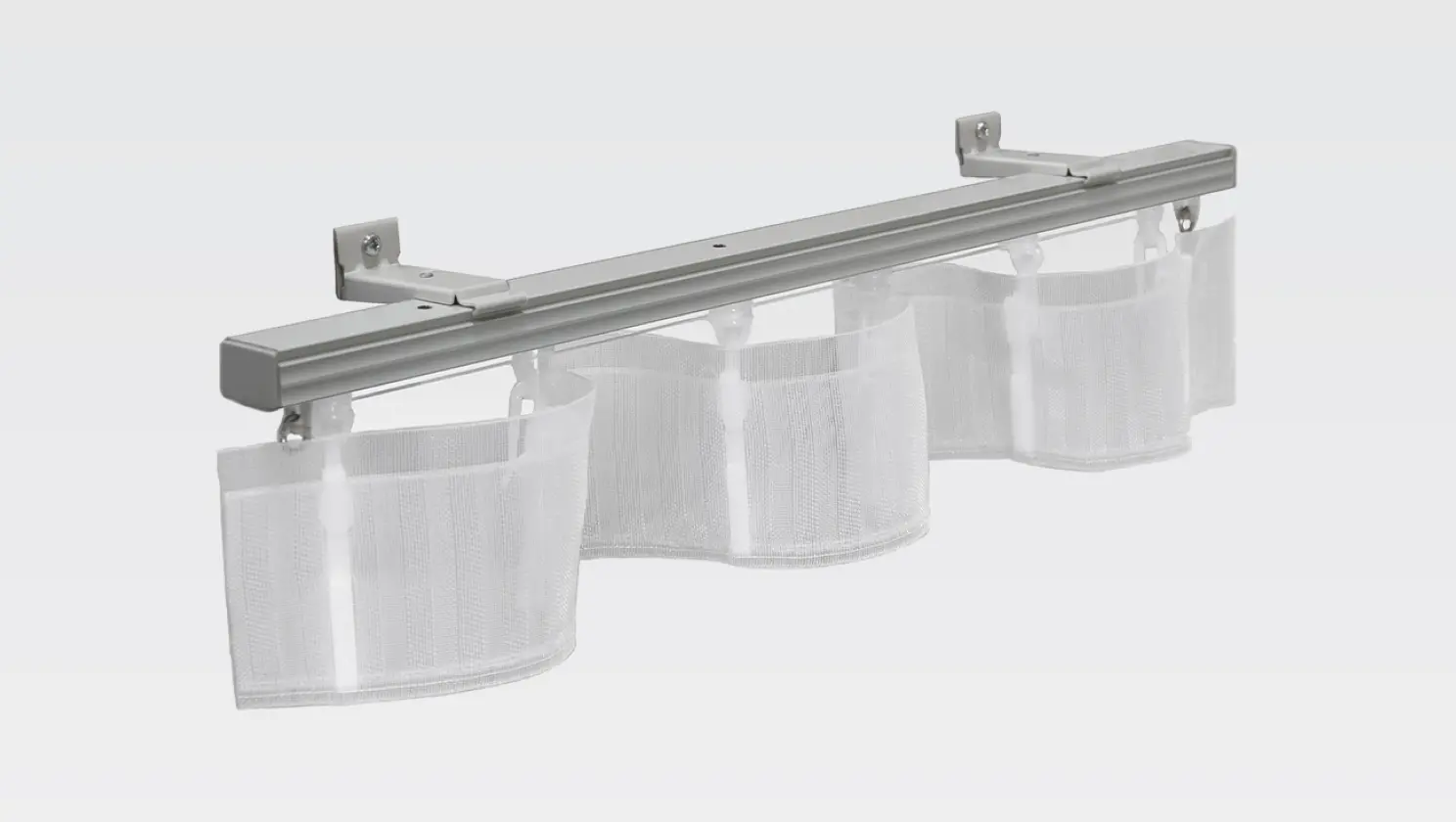

Wave Style Components’ Unique Features

Wave Style Components’ Unique Features
  • The Wave Style creates a feeling of naturally flowing fabric.
  • The curtains are draped in gentle waves about 1.5 times the width of window, resulting in a continuity of pattern and texture.
  • There is a natural wave in the curtains at intervals of 80 mm (3.2").
  • With its tape and accessories, it creates natural, elegant symmetrical waves.
  • Pleating cord keeps waves evenly shaped, making the curtain rich and stylish.

Curtain Baton
(Option)

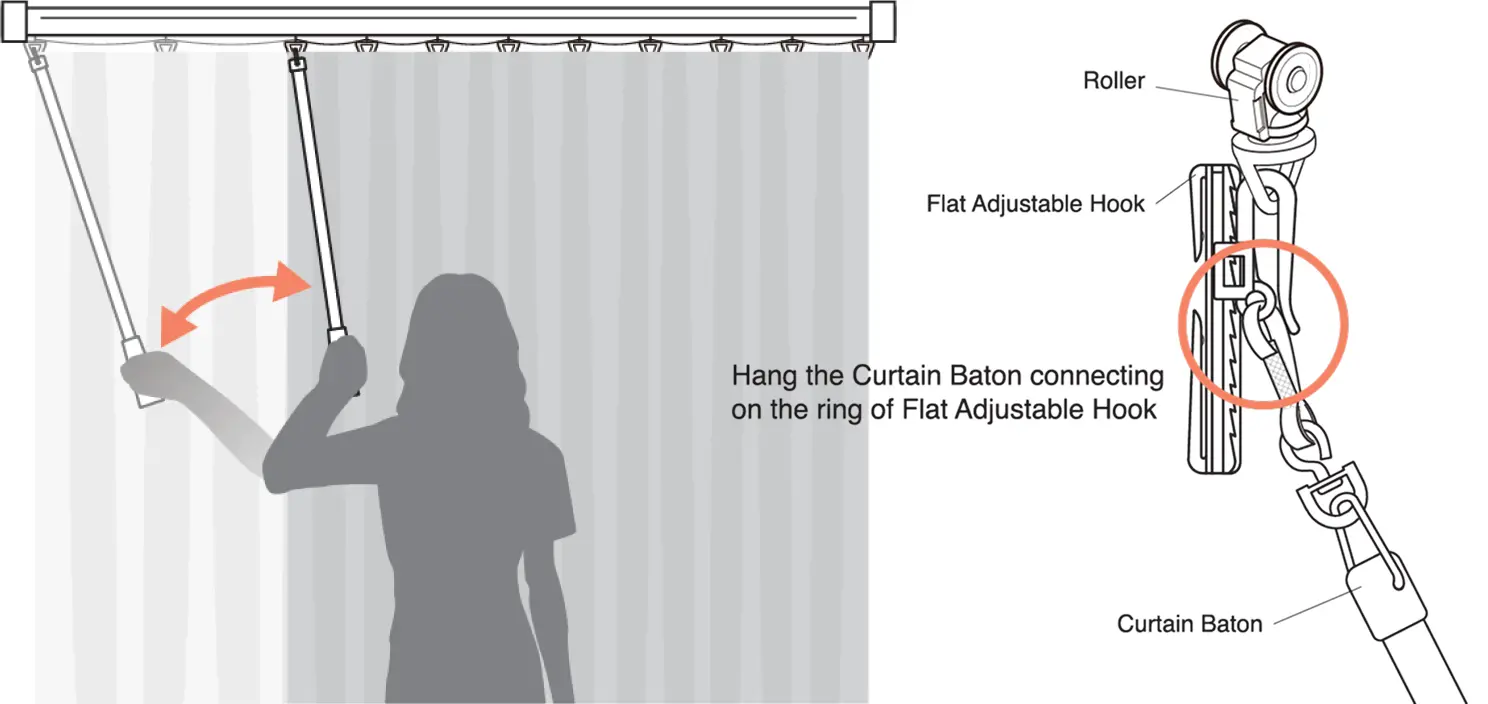

Curtain Baton

Using the Curtain Baton, the curtain opens / closes smoothly.
The Curtain Baton has the following effects, keep the shape of the curtain and prevent dirt.

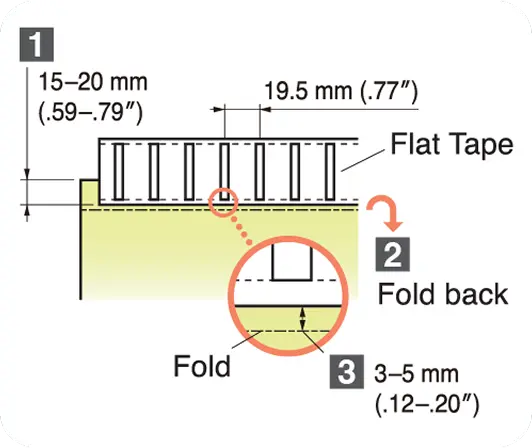

How to Sew Curtain with Flat Tape

How to Sew Curtain with Flat Tape

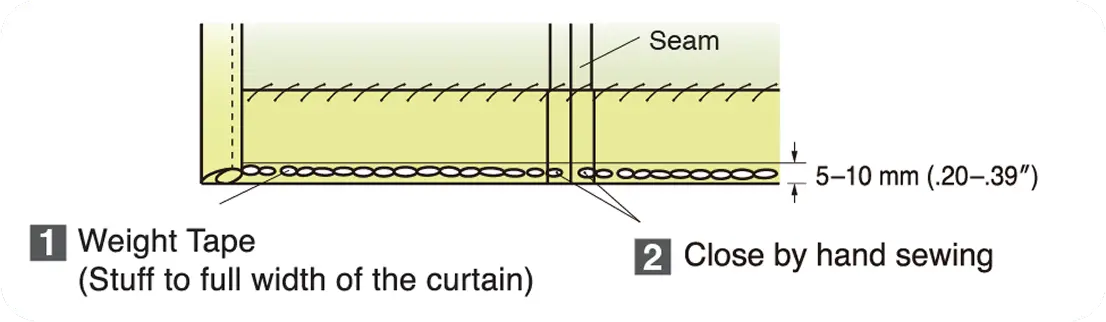

  1. Prepare the weight tape more then the width.
    Put the full width in the folded part of the hem.
  2. Close hand-sewn from the back side for each seam so that the Weight Tape becomes averege.
  3. OL m-prodList

Curtain Stopper

Curtain Stopper
  1. Prepare the weight tape more then the width.
    Put the full width in the folded part of the hem.
  2. Close hand-sewn from the back side for each seam so that the Weight Tape becomes averege.
  3. OL m-prodList

Structure

Wave Style Structure

Wave Style Structure
  • Even number of hooks used in all cases.
  • Rollers spaced at 80 mm (3.2") intervals to produce waves.
  • Both left and right sides of curtains always end in troughs.
  • To make appealing wave style curtains, use Flat Tape and Pleating Cord.
  • Fabrics with soft weft threads and stiff warp threads such as plain weaves are advisable (Blackout fabrics are not recommended).

Wave Style Components

Pleating Cord
Pleating Cord

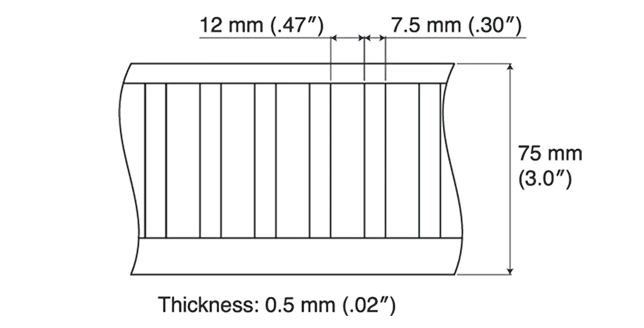

Flat Tape 75 mm
Flat Tape 75 mm

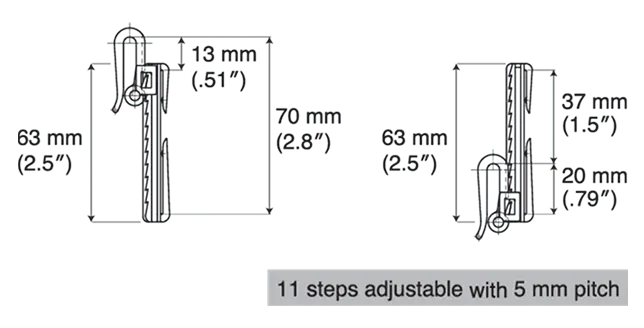

Flat Adjustable Hook 75 mm
Flat Adjustable Hook 75 mm

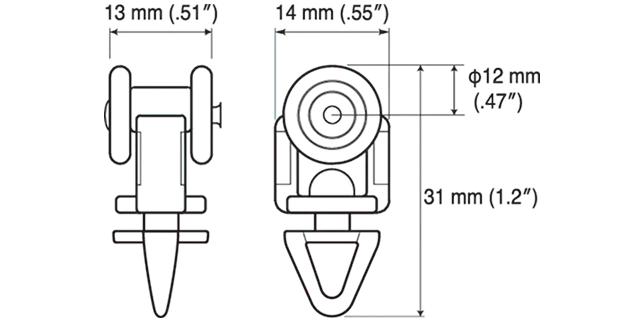

New Delac Wave Style Roller

Details

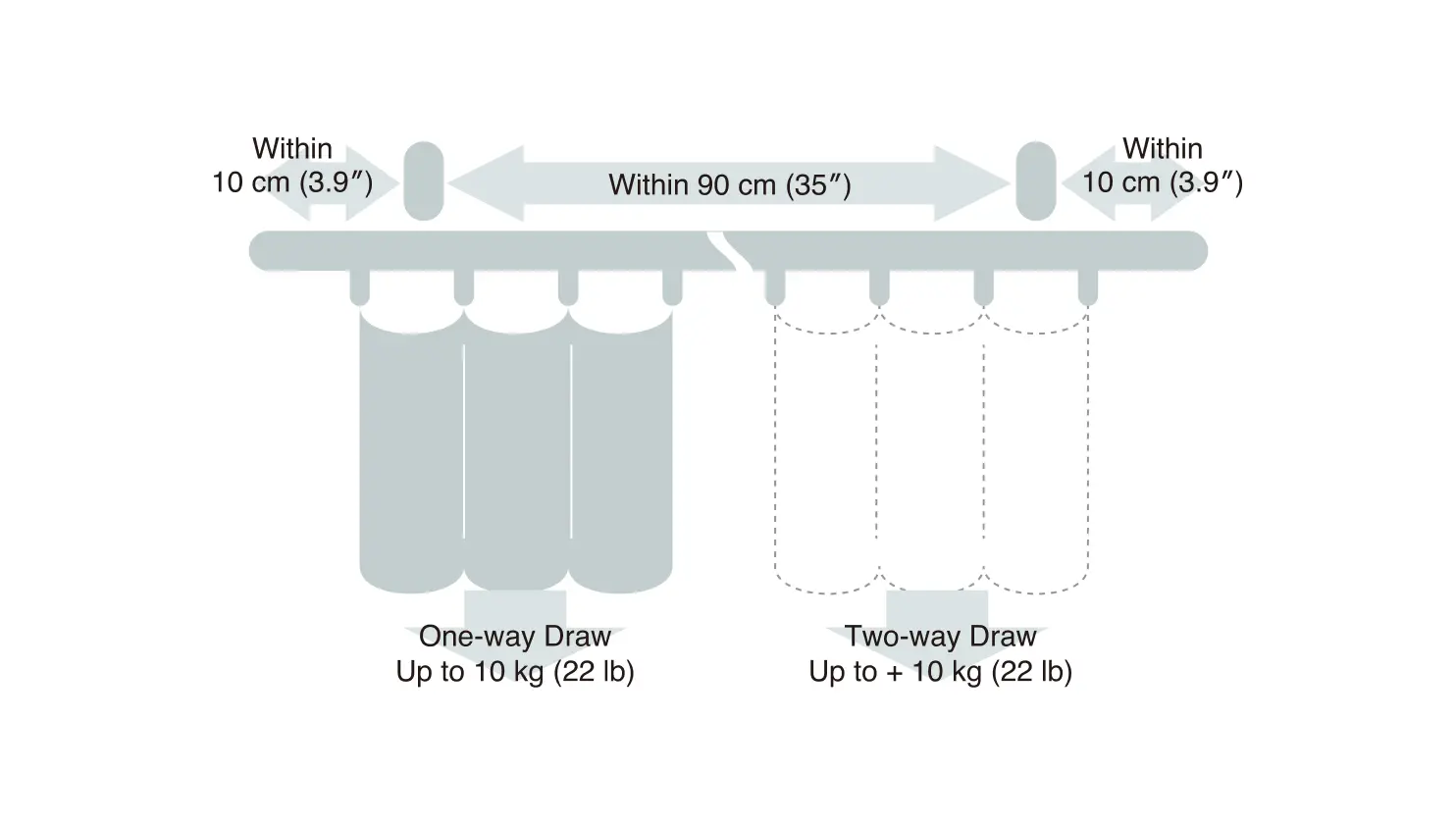

Bracket Installation Interval and Allowable Curtain Load

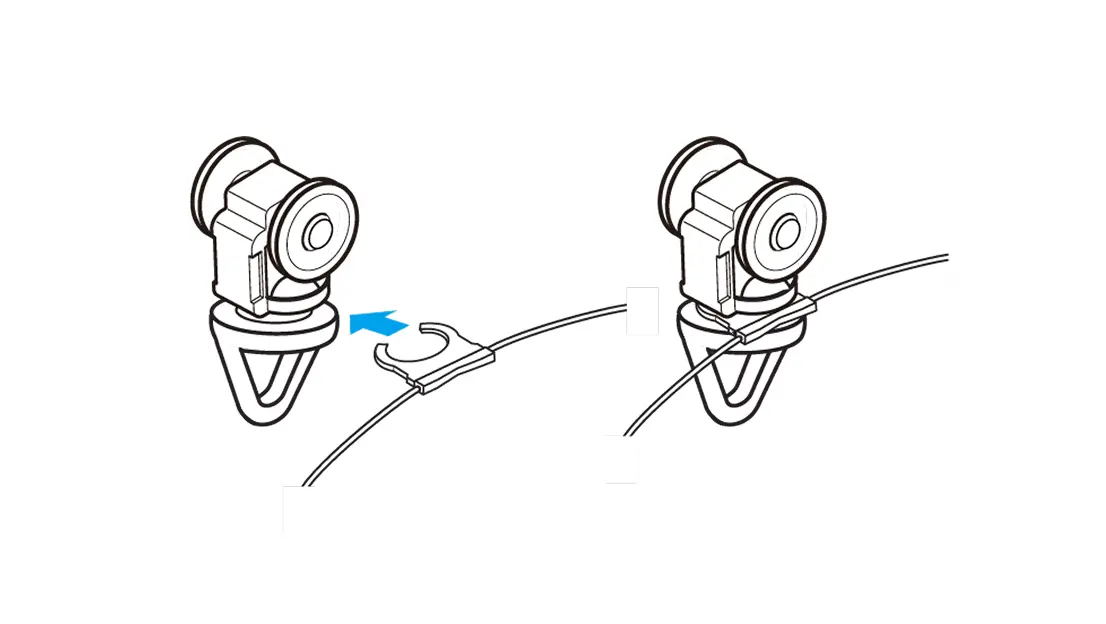

Wave Style Roller and Pleating Cord Installation

Insert the Pleating Cord into the New Delac Wave Style Roller.

Wave Style Roller and Pleating Cord Installation
For more details
