Curtain Tracks Functional

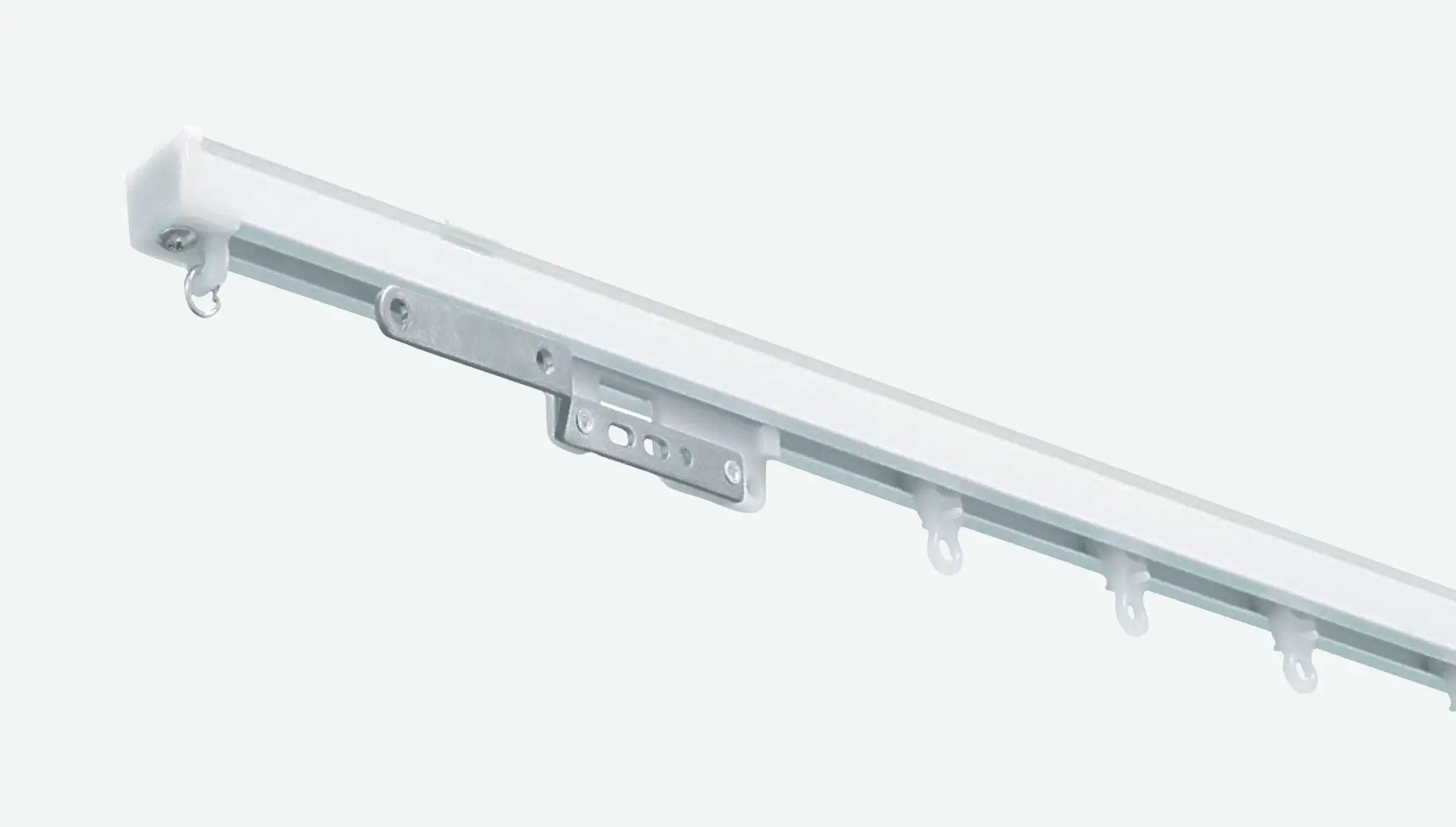

NDL20
- Standard manually operated curtain tracks perfect for residences, hotels, and hospitals.
- Special Wheel-type Rollers for smooth, quiet operation.
- Consistently smooth, quiet operation through over 10,000 open/close cycles.
Feature
High-quality products at reasonable prices
- High-quality at reasonable prices made possible by improvements based on years of manufacturing and installation experience.
- Compact, but still able to support curtain weights up to 20 kg *.
- For two-way draw.
Outstanding performance and quiet operation
- Special Wheel-type Rollers makes smooth, TXLHWSHUIRUPDQFH

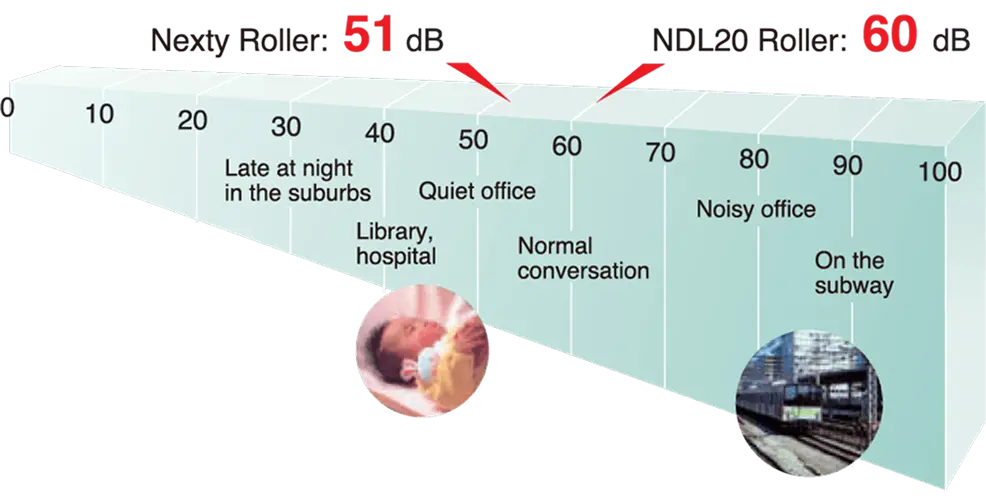

- Quiet operation when used with Nexty Rollers, the noise level is only 51 dB.
Exceptional durability
- Consistently smooth, quiet operation through over 10,000 open/close cycles.

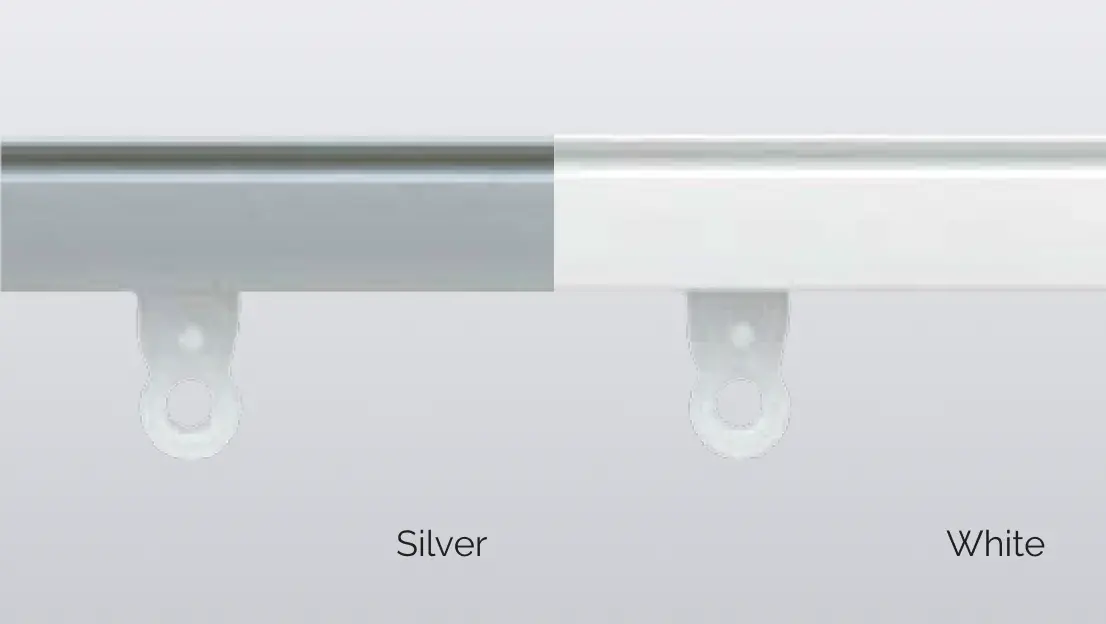

Come in two colors variation
- Come in Silver or White colors for easy application in residences, hotels, hospitals, and other environments.
Structure
For Wave Style
- The Wave Style creates a feeling of naturally flowing fabric.
- The curtains are draped in gentle waves about 1.5-2.2 times the width of window, resulting in a continuity of pattern and texture.
- There is a natural wave in the curtains at intervals of 80 mm (3.2").
- With its tape and accessories, it creates natural, elegant symmetrical waves.
- Pleating cord keeps waves evenly shaped, making the curtain rich and stylish.
- For more details about Wave Style, please refer to the catalog "New Delac with Wave Style Components".
Lineup
Details

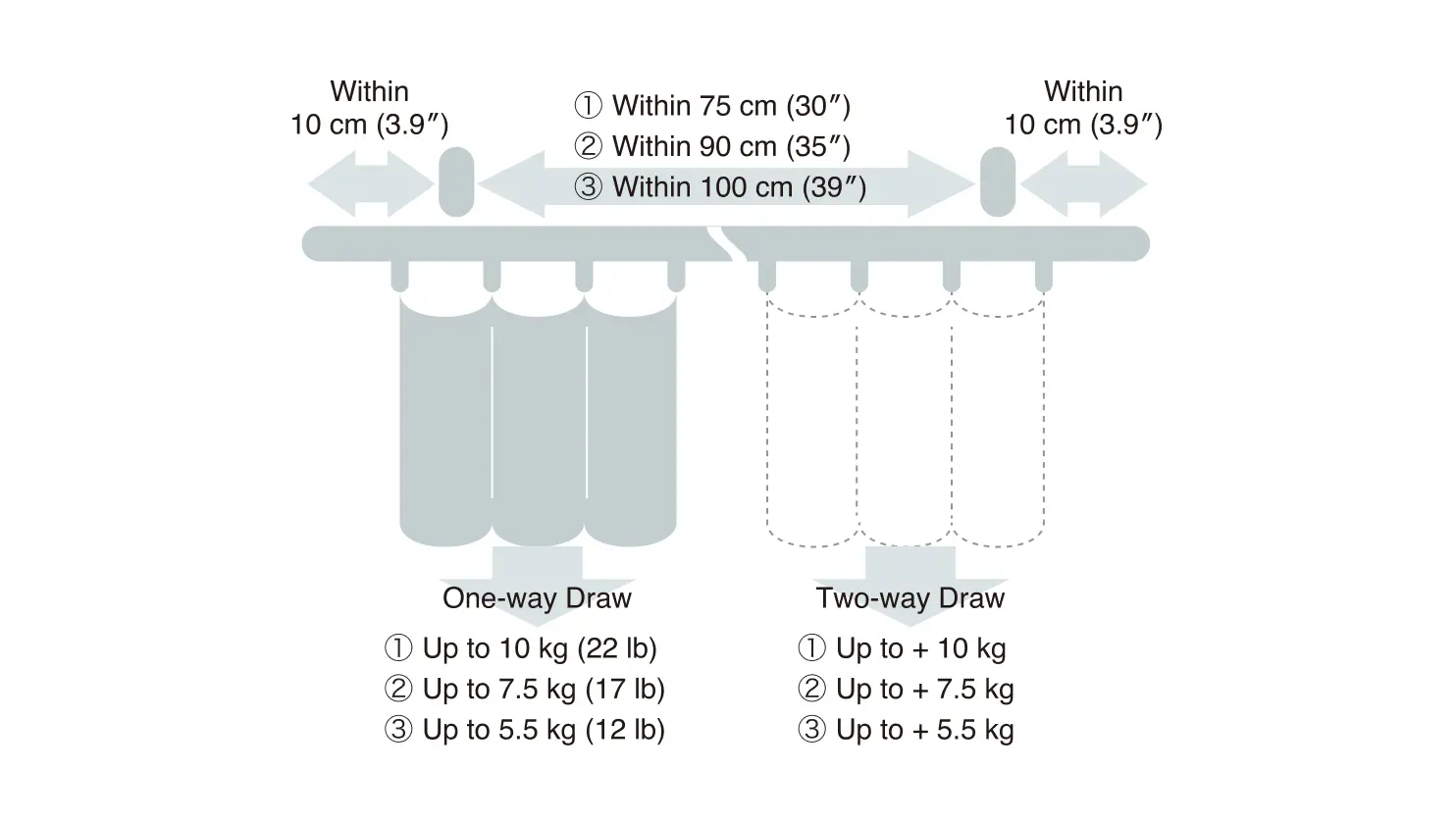

Bracket Installation Interval and Allowable Curtain Load

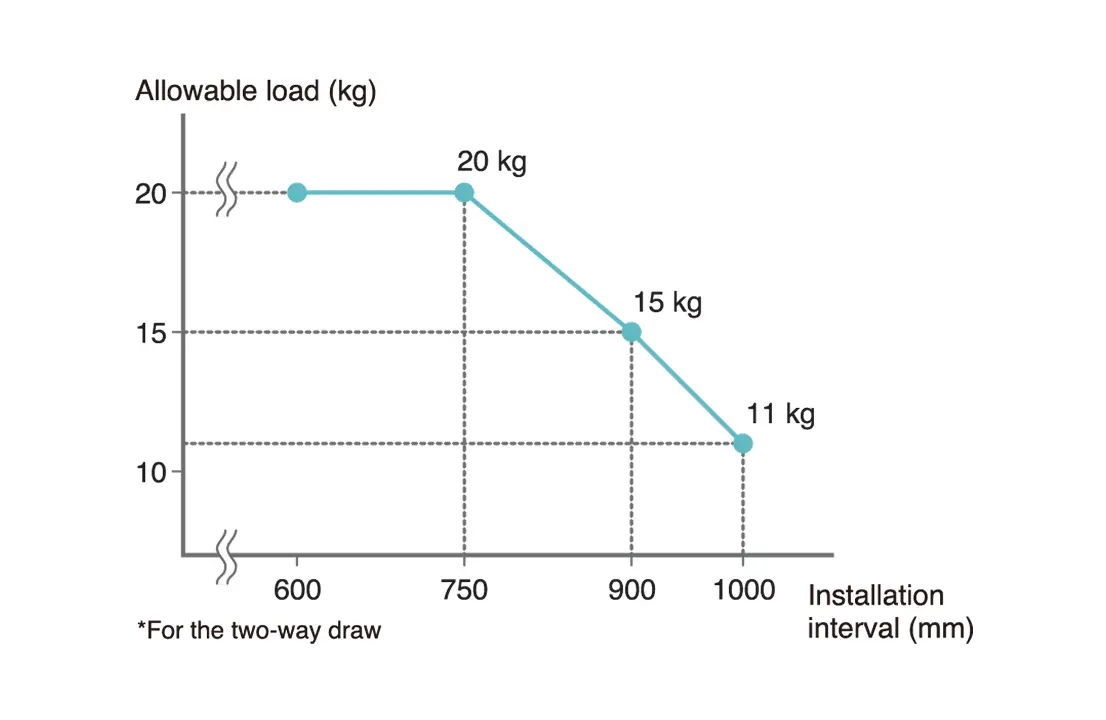

Rail installation interval and allowable load
