Ceiling Curtain Track
Flow
- The sophisticated symmetrical design and simple Fixed Hanger Rod stylishly divide any space.
- A truly noise-less finish—no visible hardware— creates a sense of refined elegance.
- Seamlessly compatible with wave style curtains for a wide range of sophisticated interior arrangements.
Feature

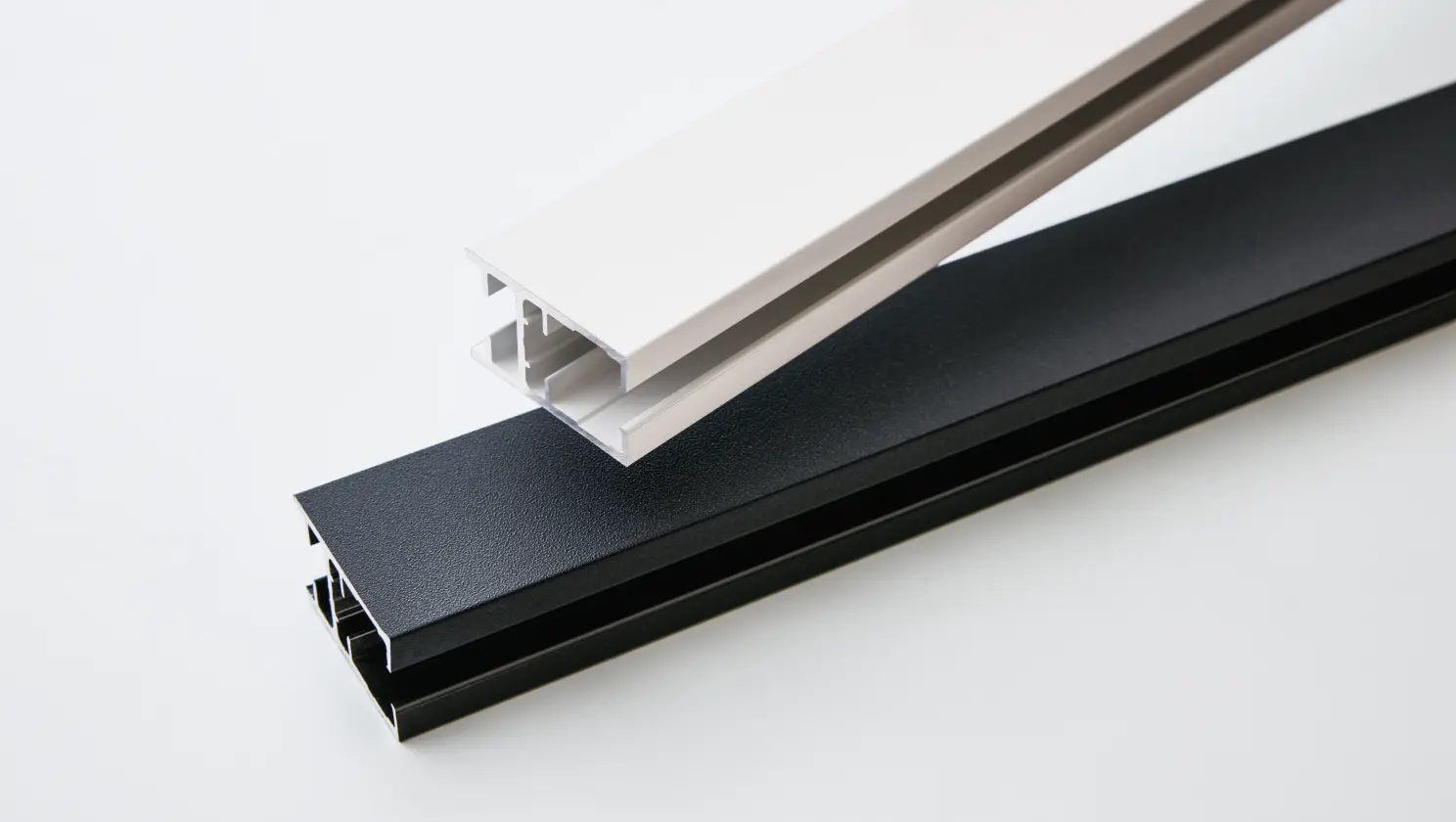

Ideal for partition applications
A clean, symmetrical form with no visual front or back makes this rail ideal for refined space division. The matte finish blends seamlessly into interiors, creating subtle boundaries that enhance the design.

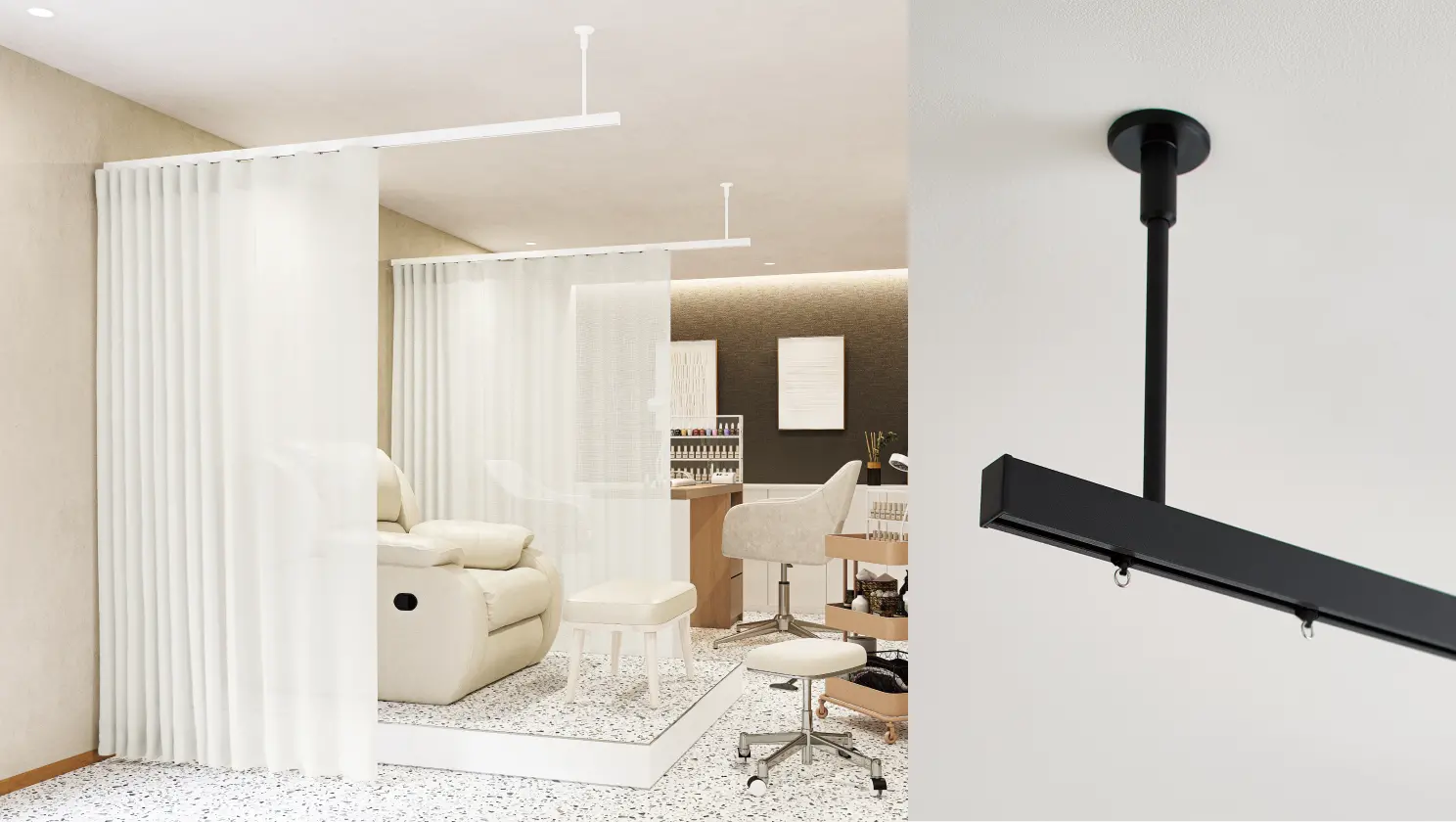

Dedicated support rod with a simple design
Suitable for high-ceiling spaces or areas with sprinkler systems, without interfering with water dispersion.
Flow Fixed Hanger Rod is available in lengths from 250mm to 700mm, and can also be cut to length on-site as needed.

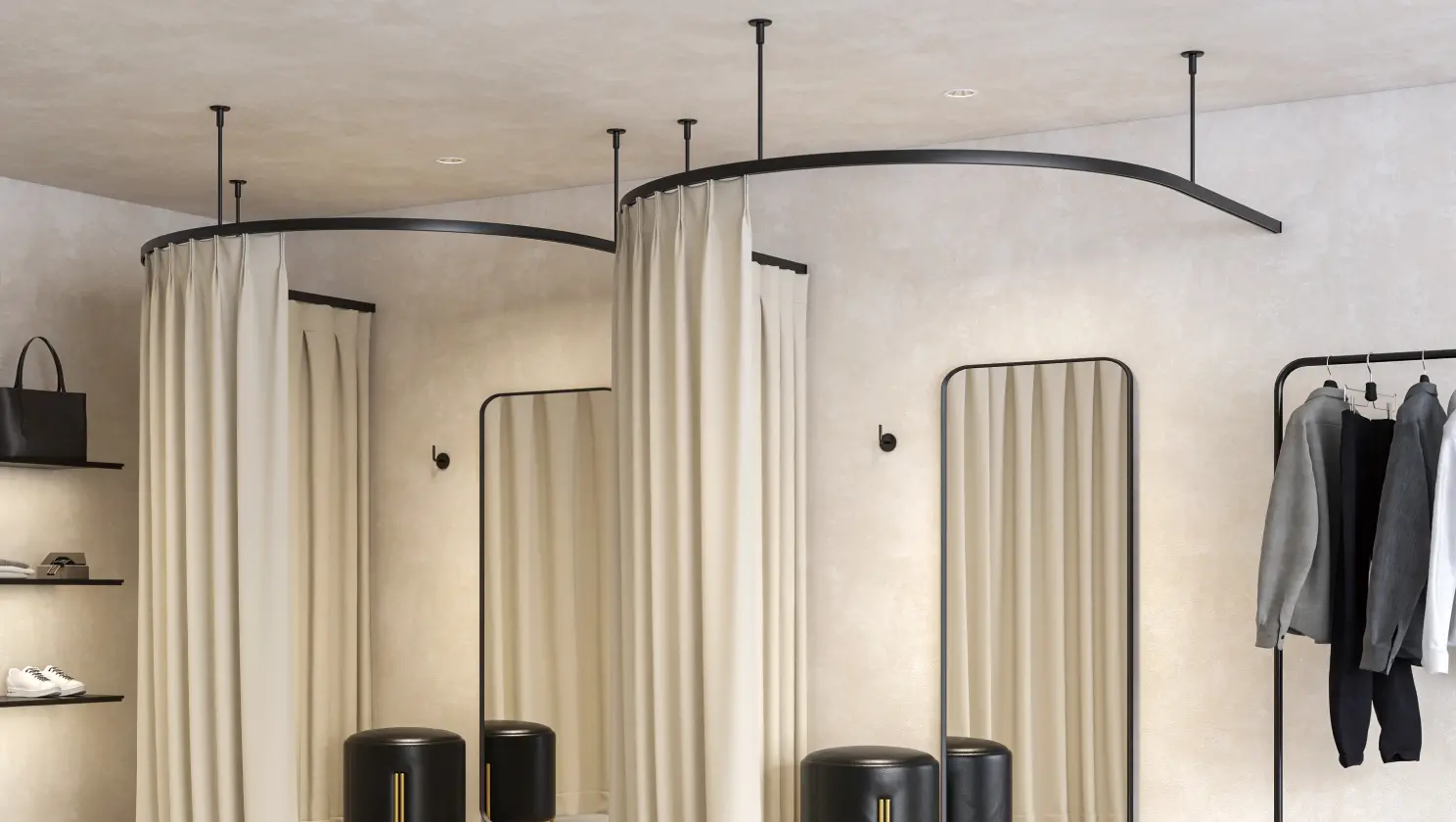

Flexible curves for spatial design
The curtain rail supports both L-shaped and gradual curved configurations, allowing for gentle, flowing space division.

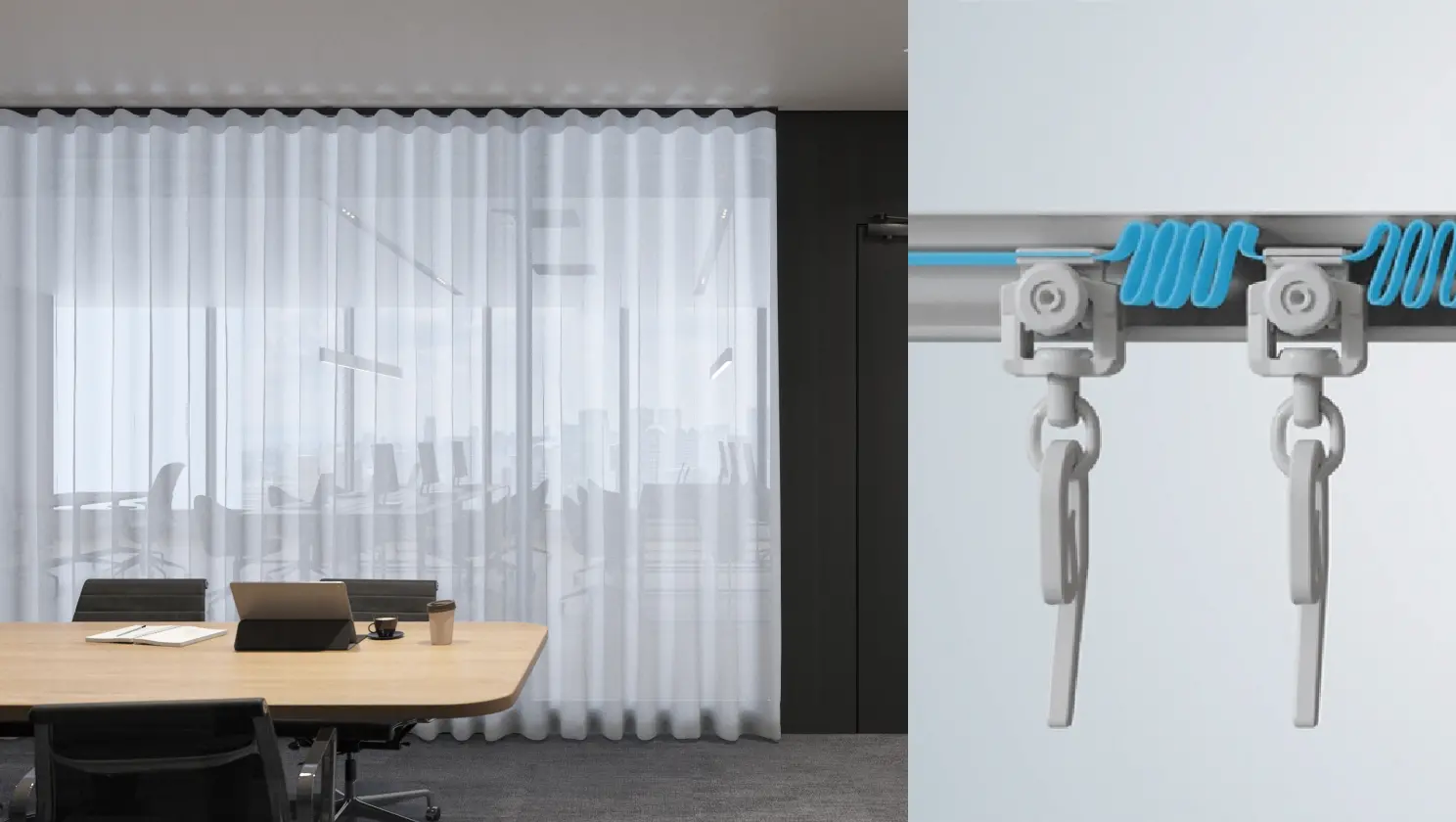

Smart Wave Curtain System
Smart Wave Curtain System is the ideal curtain rail system for creating elegant wave curtains, allowsing for the creation of beautiful wave patternswithout exposing any pitch-keeper tape, preserving the design’ s integrity.
When used as a curtain for glass partitions, it adds a gentle touch thatsoftens the overall space.
The system can be adapted to curved installations as well.
Comfortable curtain operation
Wheeled rollers allow smooth gliding even over joints.
For quieter operation, Nexty Rollers help minimize curtain noise.

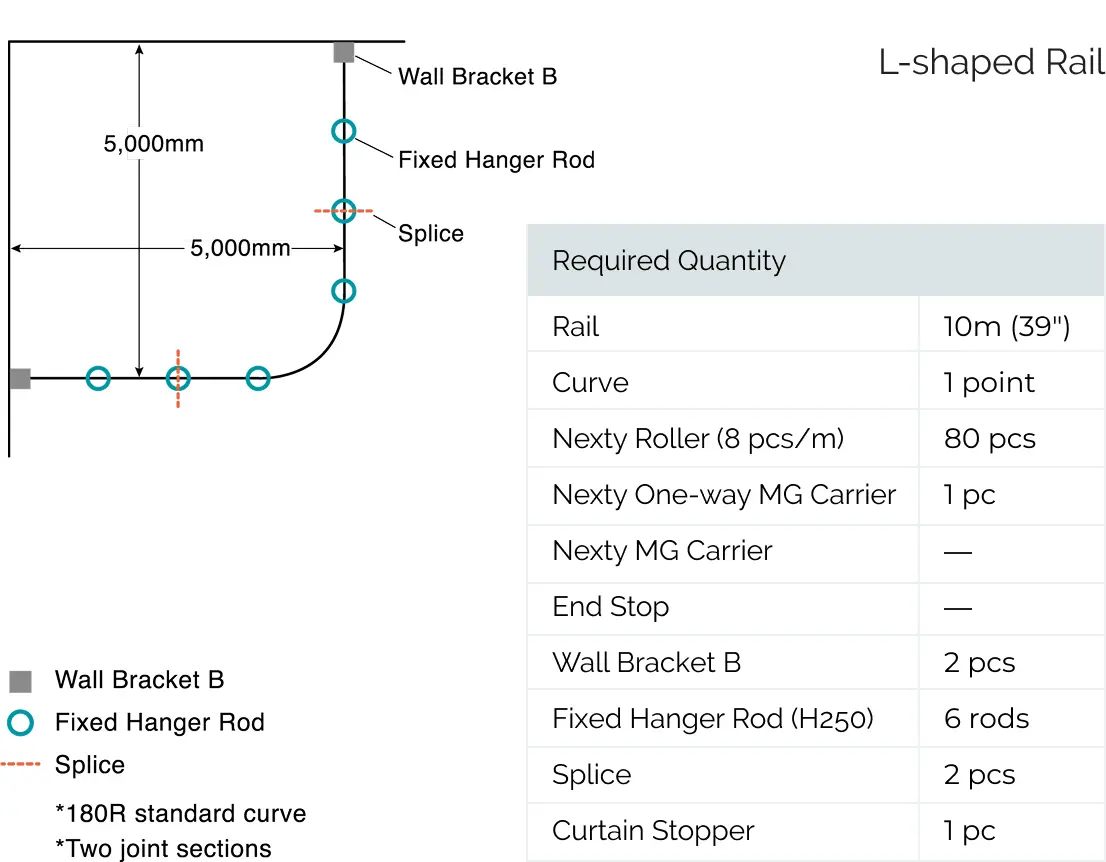

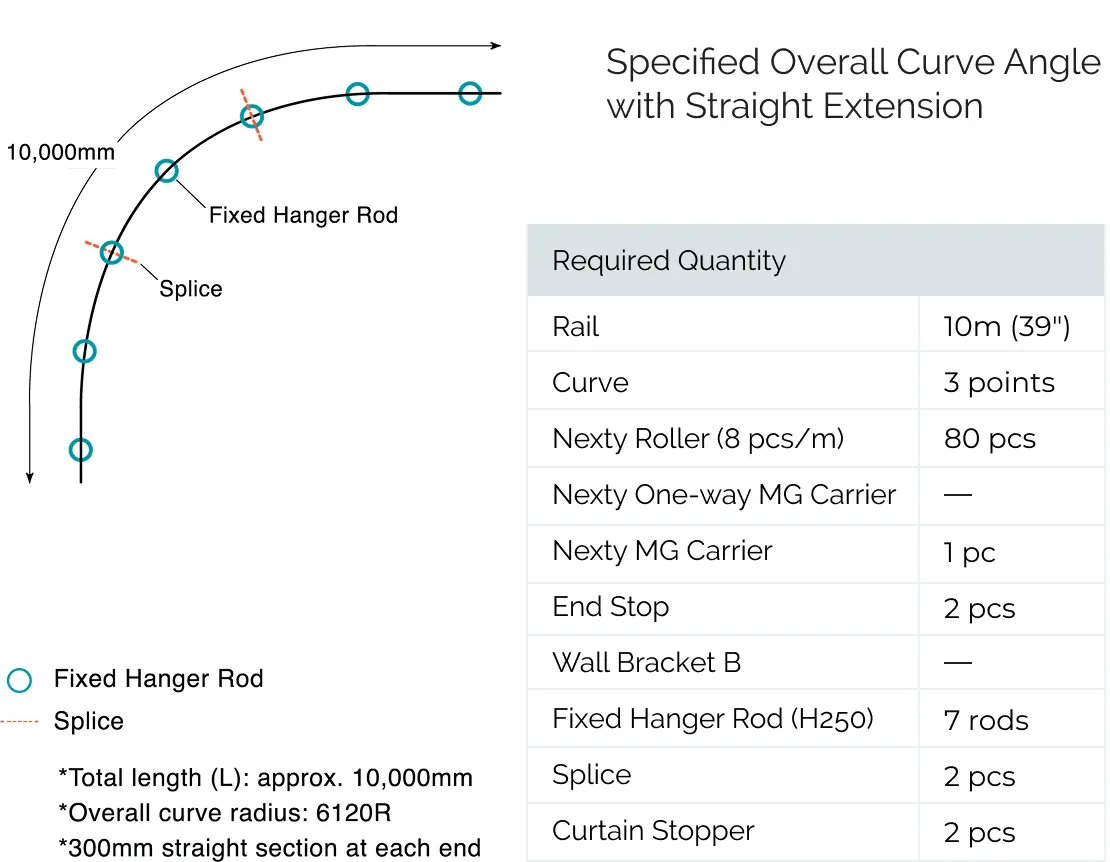

Required Parts and Quantities (For custom curved products )
Lineup
Details
Materials and Finishes
| Parts | Material | Finish | |
|---|---|---|---|
| Rail | Withe | Aluminum alloy extrusion material | Almite white, Olefin resin coating film wrapping vinyl |
| Black | Almite black, Chloride Resin coating wrapping | ||
| Roller (C Type and New Delac are common) |
Plate | Hard polyethylene | - |
| Wheel | Polyester elastomer | ||
| Oval ring | Stainless steel | ||
| End Stop | Body | Acetal resin | - |
| Adsorption plate | Steel | ||
| Wall Bracket A, B | Steel | Coating | |
| Ceiling Single Bracket | Stainless steel | - | |
| Curtain Stopper | Acetal resin.magnet | - | |
| Fixed Hanger Rod | Pipe | Aluminum | Coating |
| Base | ABS resin, Steel | - | |

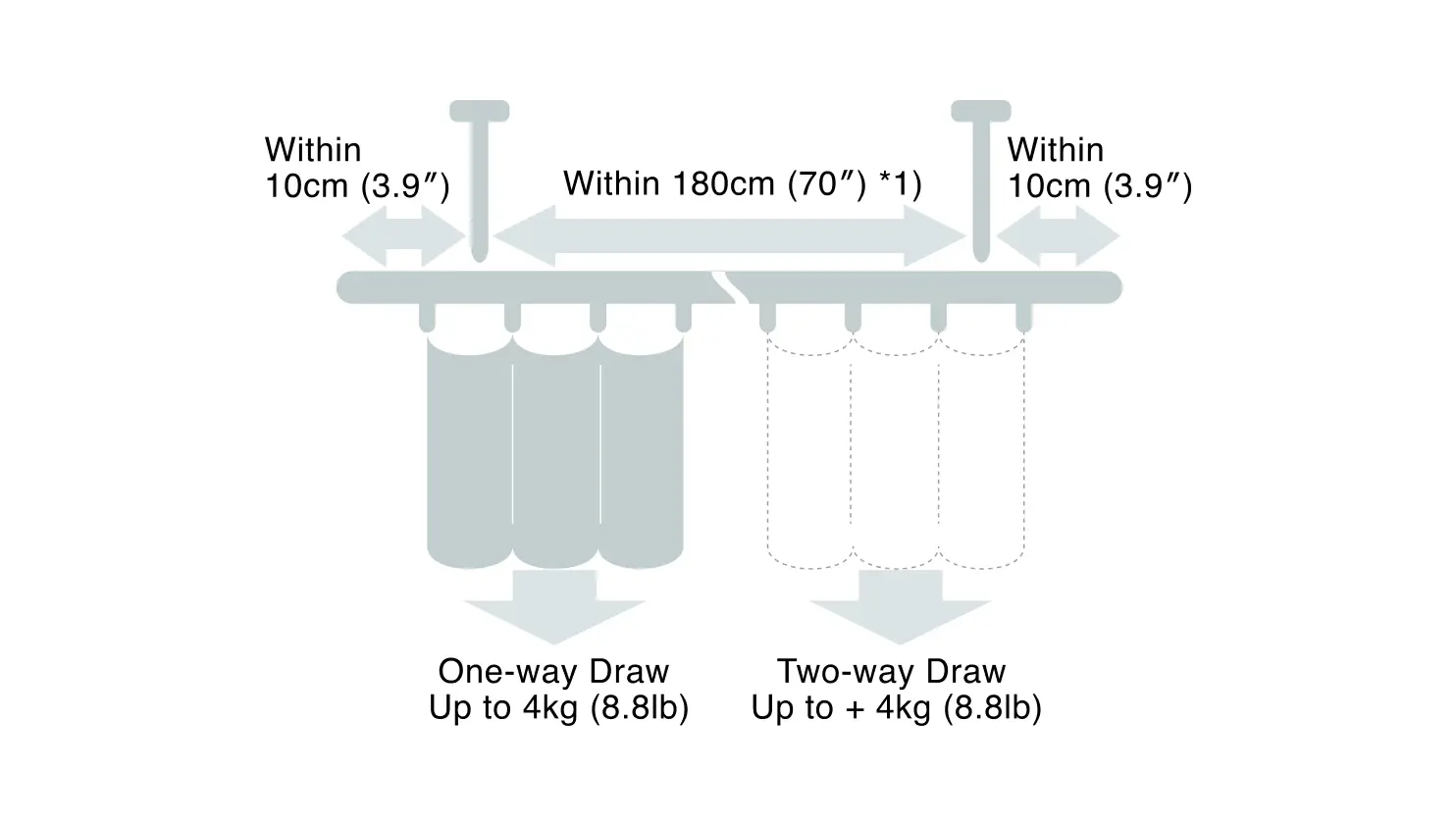

When Using Fixe Hanger Rods

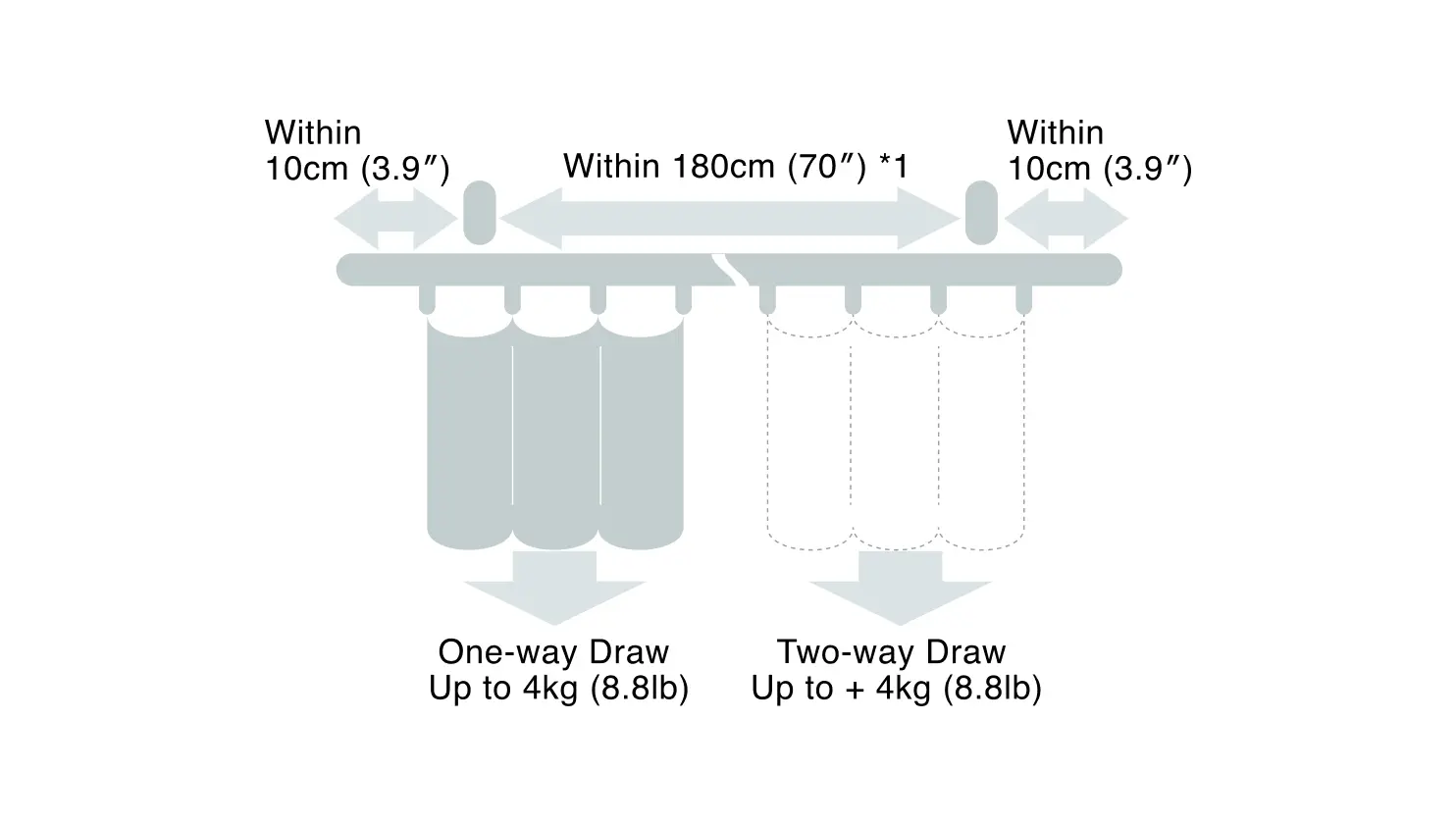

When Using Ceiling Brackets
- Please fix the joint sections using Fixed Hanger Rods or brackets.
- When installing on a system ceiling, ensure that a supporting base is provided.
