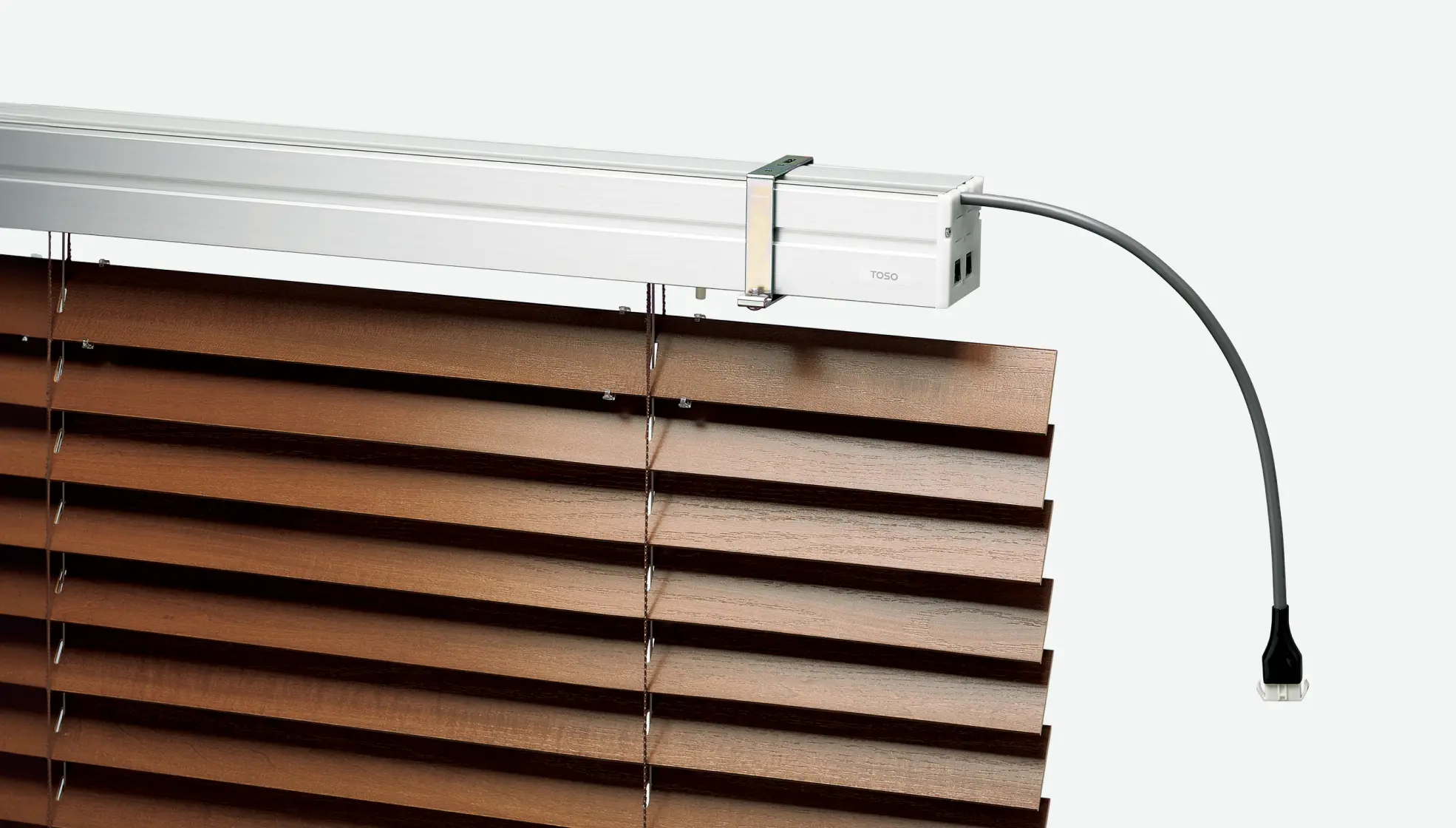

Motorized Wooden Blind
N Venewood AT 50
- This product is originally designed for the Japanese market.
For more details, please contact our local agent.
Feature
- 01
-
Wide size range
Manufacturable up to max width 2,400 mm,
height 3,000 mm, and max area 6 m2. - 02
-
Built-in obstacle-stop limit
During lowering, if the bottom rail hits an obstacle,
operation stops due to the obstacle-stop function. - 03
-
Various control options
Supports conventional contact (dry-contact) switches,FM remote control (wireless), infrared remote control,and communication switches using RS485.
Details
Motor Specifications
| Power Source Voltage | V | AC 100 | |
|---|---|---|---|
| Frequency | Hz | 50 / 60 | |
| Rated Torque | Width: 1,400 mm or less | N.m | 1.47 |
| Width: 1,410 mm or more | N.m | 2.45 | |
| Rated RPM | rpm | 30 | |
| Power Consumption | Operation | W | 38 |
| Standby | W | 0.5 or less | |
| Operating Voltage | V | DC12 | |
| Operating Consumption | mA | 6 | |
| Operating Temperature Range | °C | 0 to 50 (without condensation) | |
| Rated Running Time | sec. | 130 | |
Allowable Size
| Product Name | N Venewood AT50 (Ladder cord type) |
|---|---|
| Slat Width | 50 mm (2.0″) |
| Product Width | 850 - 2,400 mm (33 - 94″) |
| Product Height | 500 - 3,000 mm (20 - 118″) |
| Maximum Area | 6m2 (7.2 yd2) or less |
| Slat Colors | 5 colors (“see Slat Color Samples”) |
