Motorized Roman Shade
Super Liberta 2
- This product is originally designed for the Japanese market.
For more details, please contact our local agent.
Feature
- 01
-
Maximum Product Width: Up to 8 m
The joint configuration enables the production of a
single unit with a width of up to 8 m. - 02
-
Maximum Fabric Weight: Up to 12 kg
Equipped with a high-torque motor to support a
maximum fabric weight of up to 12 kg.
(*Including the weight of sewing components/materials) - 03
-
Neat Appearance

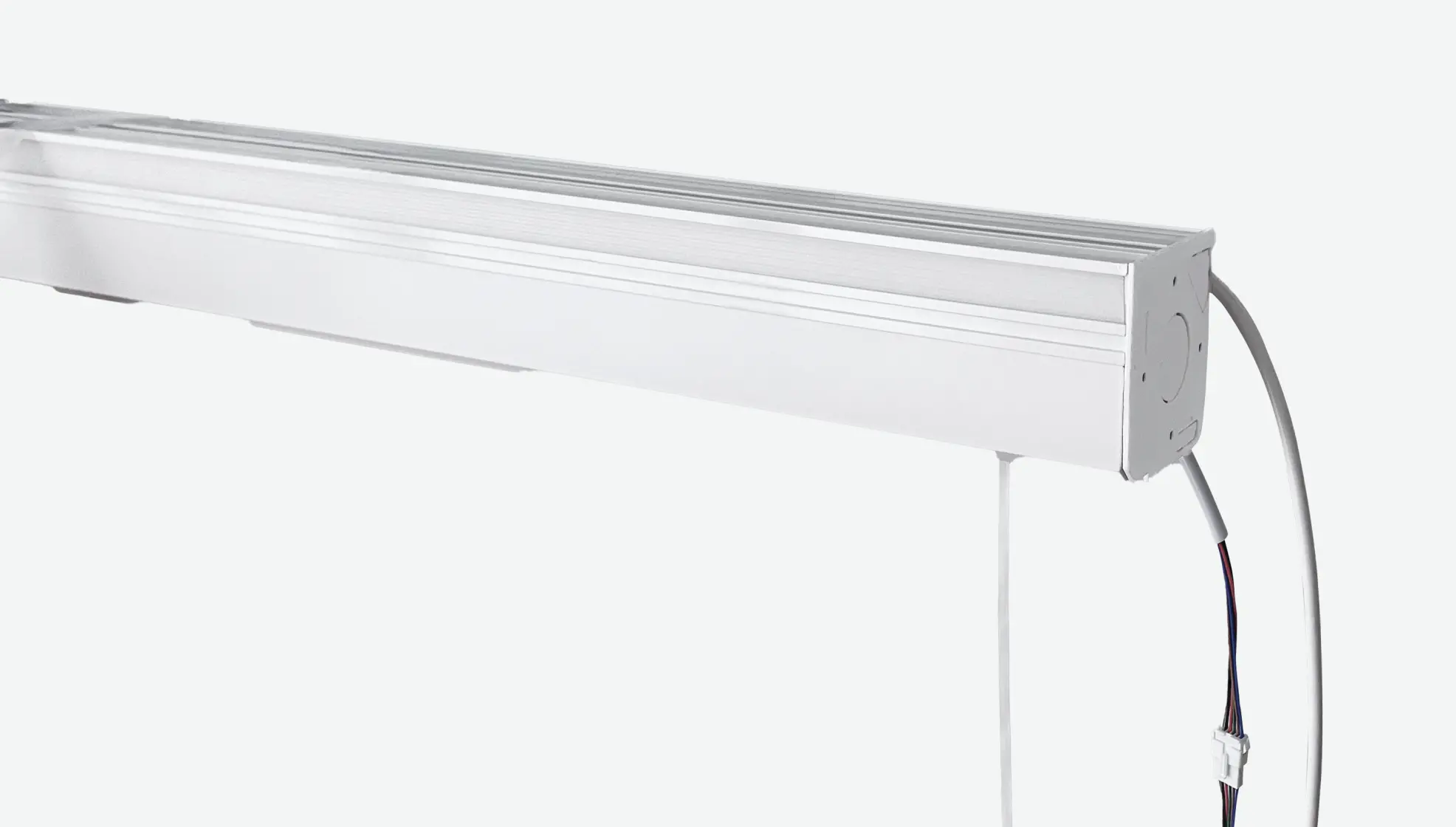

A motor, a controller and other parts do not come into view because all of them are put inside the head rail.
Lineup
Note: The Plain, Sharp (with Rods), and Balloon styles hang flat when lowered.
Details
Motor Specifications
| Power Source Voltage | V | AC100-220 | |
|---|---|---|---|
| Frequency | Hz | 50 / 60 | |
| Current | Operation | A | 0.66 |
| Standby | A | 0.05 | |
| Power Consumption | Operation | W | 65 |
| Standby | W | 1 | |
| Operating Voltage | V | DC12 | |
| Operating Consumption | mA | 7 | |
| Operating Temperature Range | ℃ | 0-50 (without condensation) | |
| Rated RPM | rpm | 30 | |
| Operating Time | sec/m | 17-22 | |
| Continuous Operating Time | sec | 200 | |
