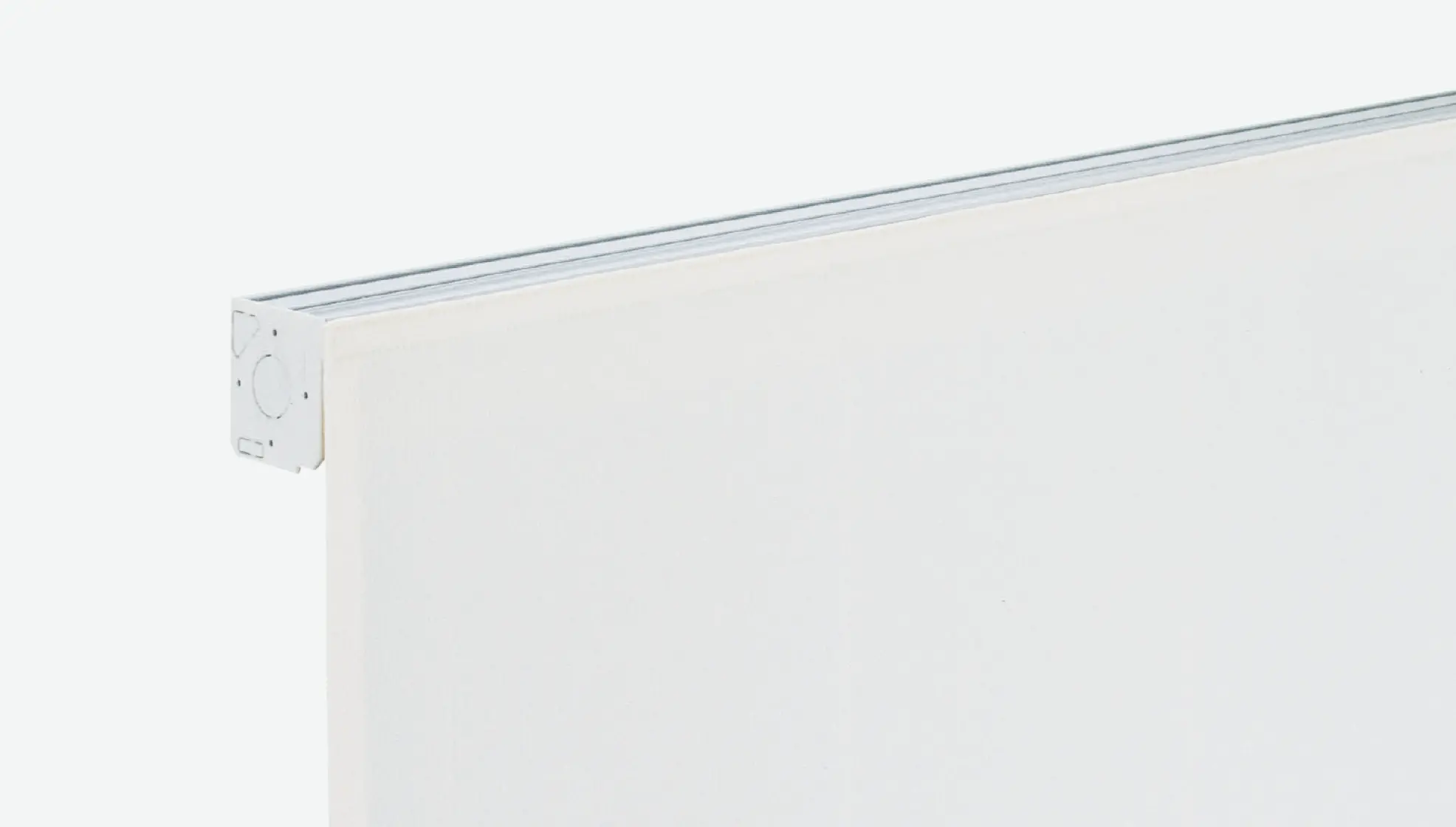

Motorized Roman Shade
Super Liberta
- This product is originally designed for the Japanese market.
For more details, please contact our local agent.
Feature
- 01
-
Super Liberta guarantees a perfect solution for a large window.
- 02
-
Curved windows are available by using Universal Joint.
- 03
-
Its synchronous motors allow different sizes of roman shades to go up and down at the same speed.
- 04
-
With joints, one single big motorized roman shade is possible:up to 10 m (394″) in width and to 9 m (354″) in height.
- 05
-
Maximum weight up to 15 kg (33 lb).
- 06
-
Neat appearance:A motor, a controller and other parts do not come into view because all of them are put inside the head rail.
Lineup
Note: The Plain, Sharp (with Rods), and Balloon styles hang flat when lowered.
Details
Motor Specifications
| Power Source Voltage | V | AC100 * | |
|---|---|---|---|
| Frequency | Hz | 50 / 60 | |
| Current | Operation | A | 0.66 |
| Standby | A | 0.05 | |
| Power Consumption | Operation | W | 66 |
| Standby | W | 5 | |
| Operating Voltage | V | DC12 | |
| Operating Consumption | mA | 7 | |
| Operating Temperature Range | ℃ | 0-50 (without condensation) | |
| Rated RPM | rpm | 40±15% | |
| Operating Time | sec/m | 10-15 | |
| Rated Running Time | min. | 5 | |
- AC100 V only. Please contact our local agent about the plug.
