Motorized Curtain Track

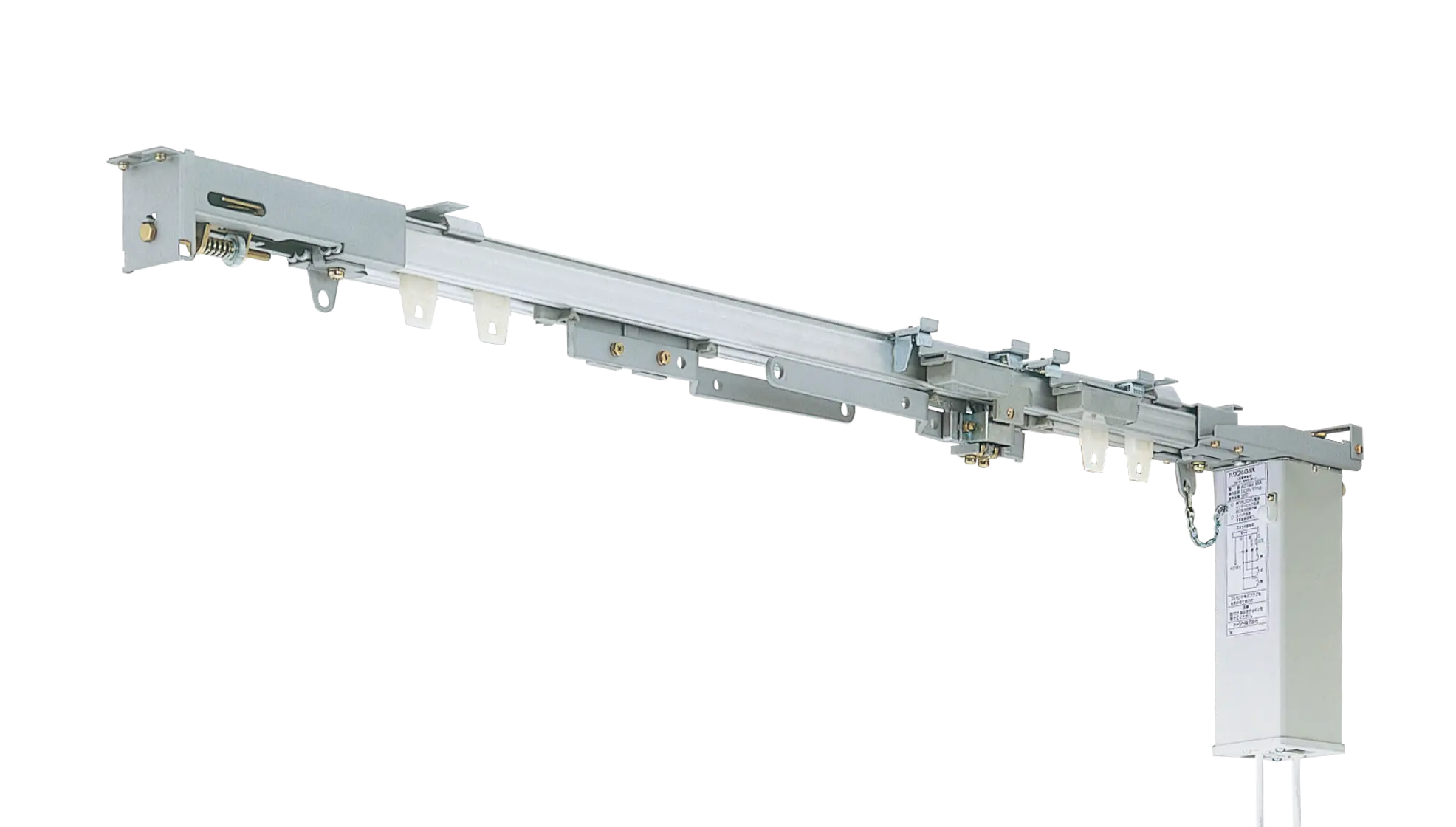

Powerful+Theatrac
- Motorized rail for heavy draperies in locations such as theate
- Available for an installation hung from a pipe.
Feature
- 01
-
Exceptionally durable wire used for motor drive transmission.
- 02
-
Passed a 10,000 cycle open-close test.
- 03
-
Ready for draperies up to 20 m (787") long with 120 kg (265 lb) in weight.
Lineup
Details
Motor Specifications
| Item | Powerful 3L series | Powerful 4P series | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Powerful 3L 220 V |
Powerful 3L- HM 220 V |
Powerful 3L- HL 220 V |
Powerful 4P 220 V |
Powerful 4P- HM 220 V |
|||||||
| Rated power voltage | VAC | 220 | 220 | 220 | 220 | 220 | |||||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Power consumption | W | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Operating voltage | VAC | Same as power source |
Same as power source |
Same as power source |
Same as power source |
Same as power source |
|||||
| Operating current | A | ||||||||||
| Time rating | min. | 5 | 5 | 5 | 5 | 5 | |||||
| Overheat protection operating temperature |
̊C | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | |||||
Applicable Range
| Type of curtain track |
Theatrac
|
|---|---|
| Installation pattern | Straight |
|
|
| Power transmission type | Wire type |
*Maximum curtain weight is for a two-way draw.
