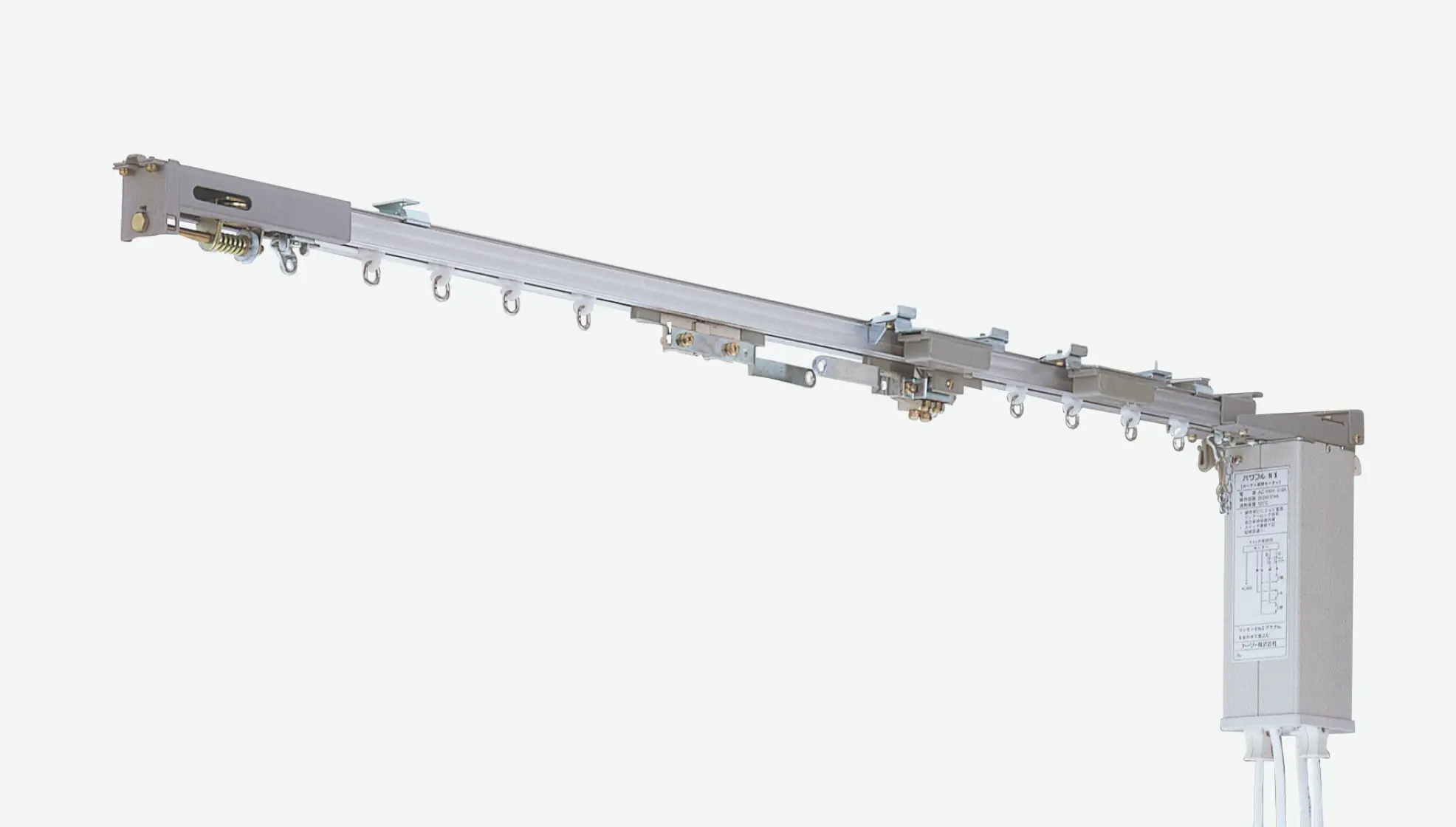

Motorized Curtain Track
Powerful+Supertrac
- Motorized curtain rail suitable for medium weight draperies.
- Available for straight, curve, skylight and slope windows.
Feature
Powerful + Supertrac’s Unique Features
- 01
-

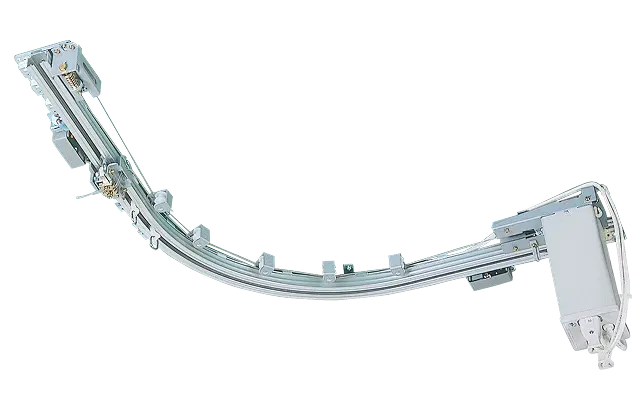

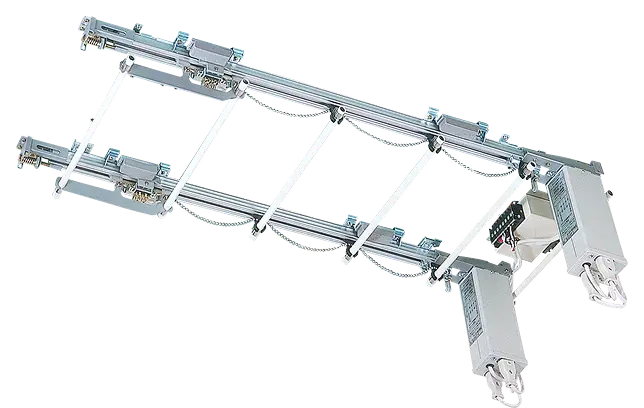

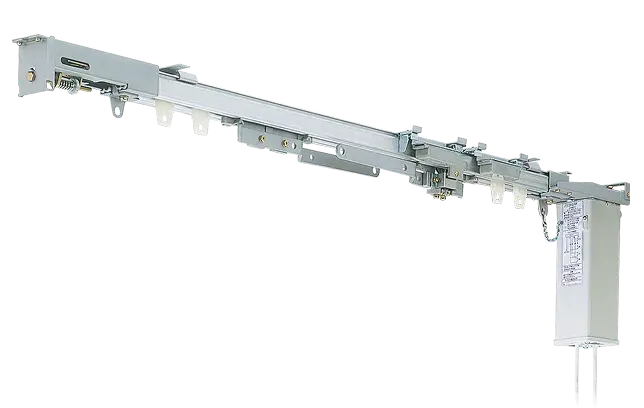

Available for straight, curve, skylight and slope windows.
- 02
-
Exceptionally durable wire used for motor drive transmission.
Passed a 10,000 cycle open-close test. - 03
-
Ready for draperies up to 20 m (787") long with 80 kg (176 lb) in weight.
Lineup
Details
Motor Specifications
| Item | Powerful 3L series | Powerful 4P series | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Powerful 3L 220 V |
Powerful 3L- HM 220 V |
Powerful 3L- HL 220 V |
Powerful 4P 220 V |
Powerful 4P- HM 220 V |
|||||||
| Rated power voltage | VAC | 220 | 220 | 220 | 220 | 220 | |||||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Power consumption | W | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Operating voltage | VAC | Same as power source |
Same as power source |
Same as power source |
Same as power source |
Same as power source |
|||||
| Operating current | A | ||||||||||
| Time rating | min. | 5 | 5 | 5 | 5 | 5 | |||||
| Overheat protection operating temperature |
̊C | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | |||||
Applicable Range
| Type of curtain track |
Supertrac
|
|||
|---|---|---|---|---|
| Installation pattern | Straight | Curve | Slope window | |
|
|
|
||
| Power transmission type | Wire type | Wire type | Wire type | |
| Single curve |
Two curves/ Overall curve half |
|||
Applicable Range
| Type of curtain track |
Supertrac
|
|
|---|---|---|

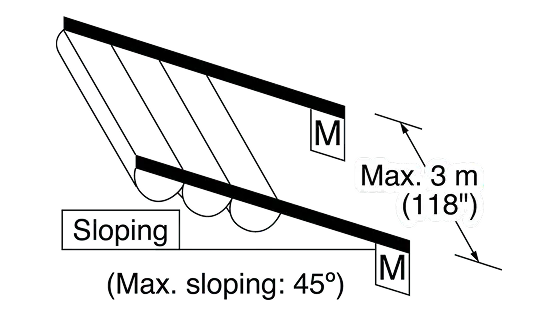

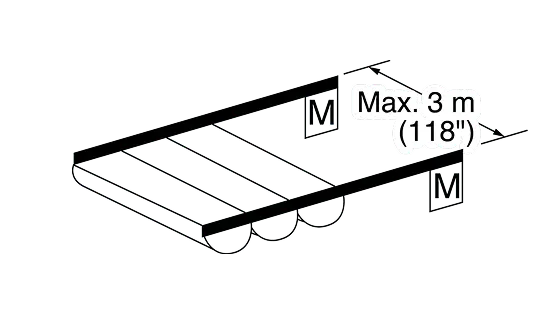

| Installation pattern | Skylight | Slope skylight |
|
|
|
| Power transmission type | Wire type | Wire type |
