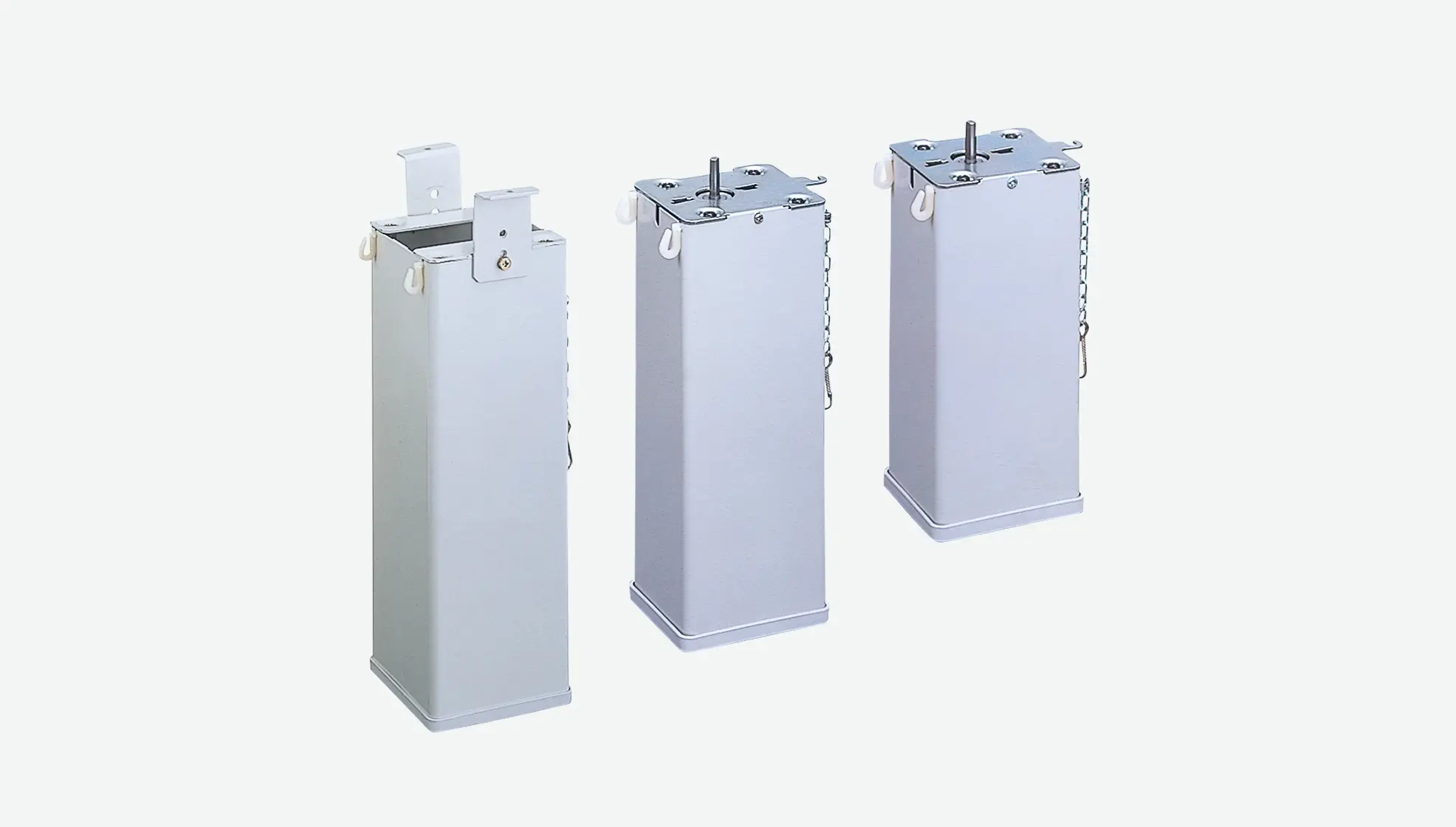

Motorized Curtain Track
Powerful
- Powerful series are a standard motorized system for basic TOSO functional tracks.
- Combined with other parts, Powerful offers a wide variety of fitting solutions.
Feature
- 01
-
Curtain track motors designed for wide applications.
- 02
-
Ranging from light to heavy duty, a combination of a Powerful and an appropriate track can cover almost all draperies.
- 03
-
Optional parts are available for many types of needs:from curved and skylight windows to slope ones.
Details
Powerful Series
| Product Name | Spec | Product Code |
|---|---|---|
| Powerful 3L | *Power cord length 0.6 m (24") (W 80 mm x H 170 mm x D 70 mm) (W 3.2" × H 6.7" × D 2.8") | 00510060 |
| Powerful 3L-HM | *Power cord length 0.6 m (24") (W 80 mm x H 170 mm x D 70 mm) (W 3.2" × H 6.7" × D 2.8") | 00510233 |
| Powerful 3L-HL | *Power cord length 0.6 m (24") (W 80 mm x H 170 mm x D 70 mm) (W 3.2" Å~ H 6.7" Å~ D 2.8") | 00510286 |
| Powerful 4P | *Power cord length 0.6 m (24") (W 80 mm x H 170 mm x D 70 mm) (W 3.2" Å~ H 6.7" Å~ D 2.8") | 00510208 |
| Powerful 4P-HM | *Power cord length 0.6 m (24") (W 80 mm x H 170 mm x D 70 mm) (W 3.2" × H 6.7" × D 2.8") | 00510232 |
Motor Specifications
| Item | Powerful 3L series | Powerful 4P series | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Powerful 3L 220 V |
Powerful 3L- HM 220 V |
Powerful 3L- HL 220 V |
Powerful 4P 220 V |
Powerful 4P- HM 220 V |
|||||||
| Rated power voltage | VAC | 220 | 220 | 220 | 220 | 220 | |||||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Power consumption | W | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Operating voltage | VAC | Same as power source |
Same as power source |
Same as power source |
Same as power source |
Same as power source |
|||||
| Operating current | A | ||||||||||
| Time rating | min. | 5 | 5 | 5 | 5 | 5 | |||||
| Overheat protection operating temperature |
̊C | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | 120 ± 5 | |||||
Applicable Range
| Type of curtain track |
Supertrac
|
|||
|---|---|---|---|---|
| Installation pattern | Straight | Curve | Slope window | |
|
|
|
||
| Power transmission type | Wire type | Wire type | Wire type | |
| Single curve |
Two curves/ Overall curve half |
|||
Applicable Range
| Type of curtain track |
Supertrac
|
Theatrac
|
|
|---|---|---|---|

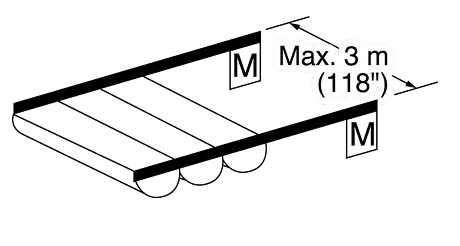

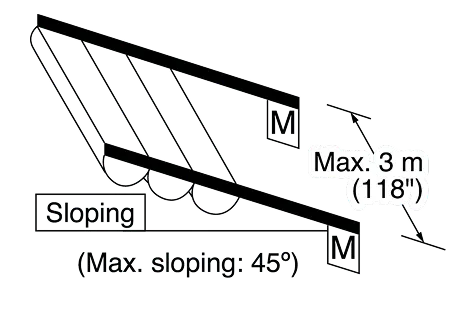

| Installation pattern | Skylight | Slope window | Straight |
|
|
|
|
| Power transmission type | Wire type | Wire type | Wire type |
