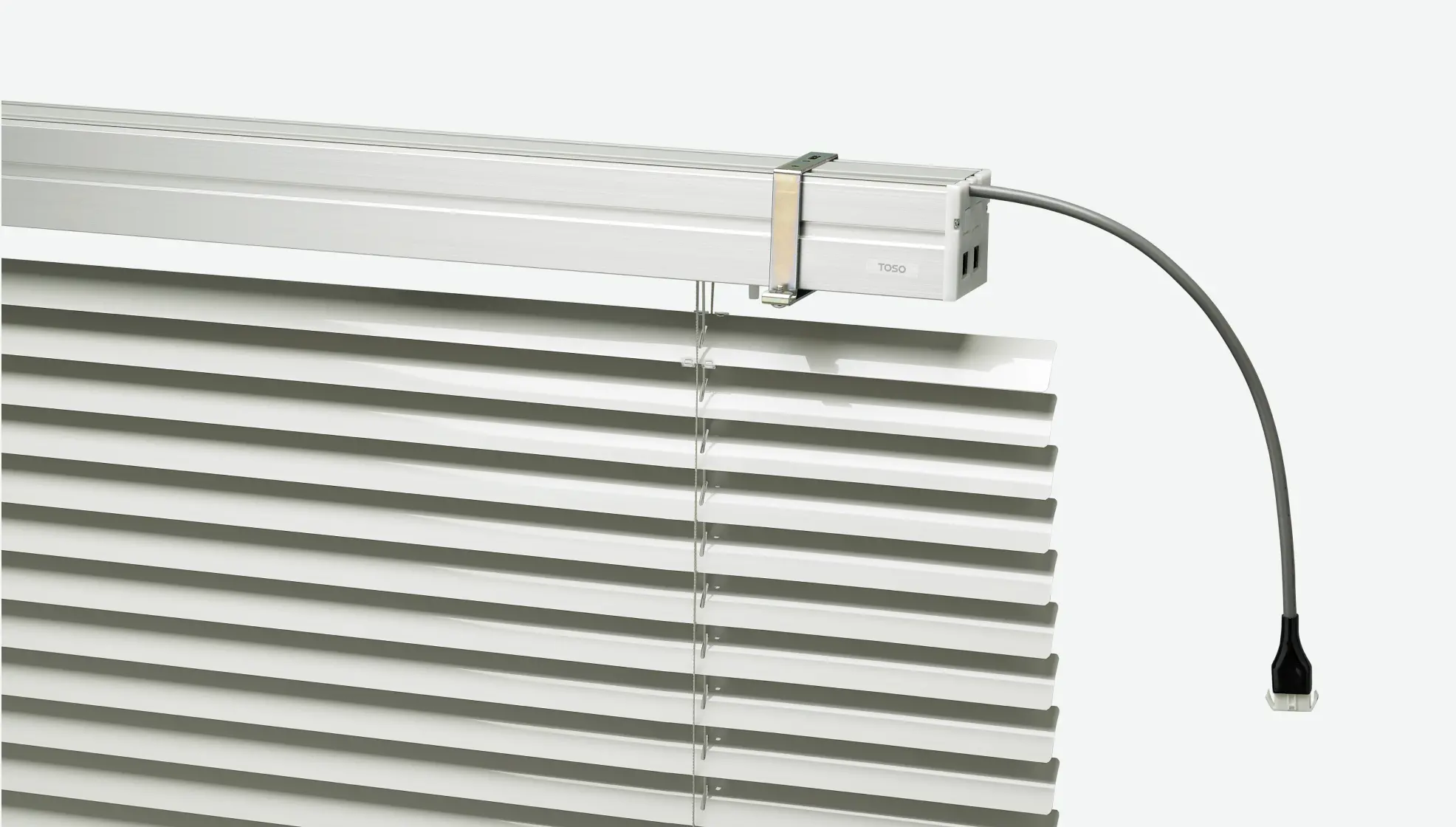

Motorized Venetian Blind
N Intest SW
- Exceptional Quiet Performance
Equipped with a low-noise motor, this model delivers smooth, whisper-quiet operation. - Versatile Color Options: 86 Slat Colors (65 Heat-Reflective)
Choose from a rich palette—including elegant wood-grain finishes—and an extensive lineup of heat-shielding slats to complement any interior style. - Versatile Control Options
Supports traditional contact switches, FM wireless remotes, and infrared remotes—and can also be equipped with an RS-485 communication switch for networked control.
Feature

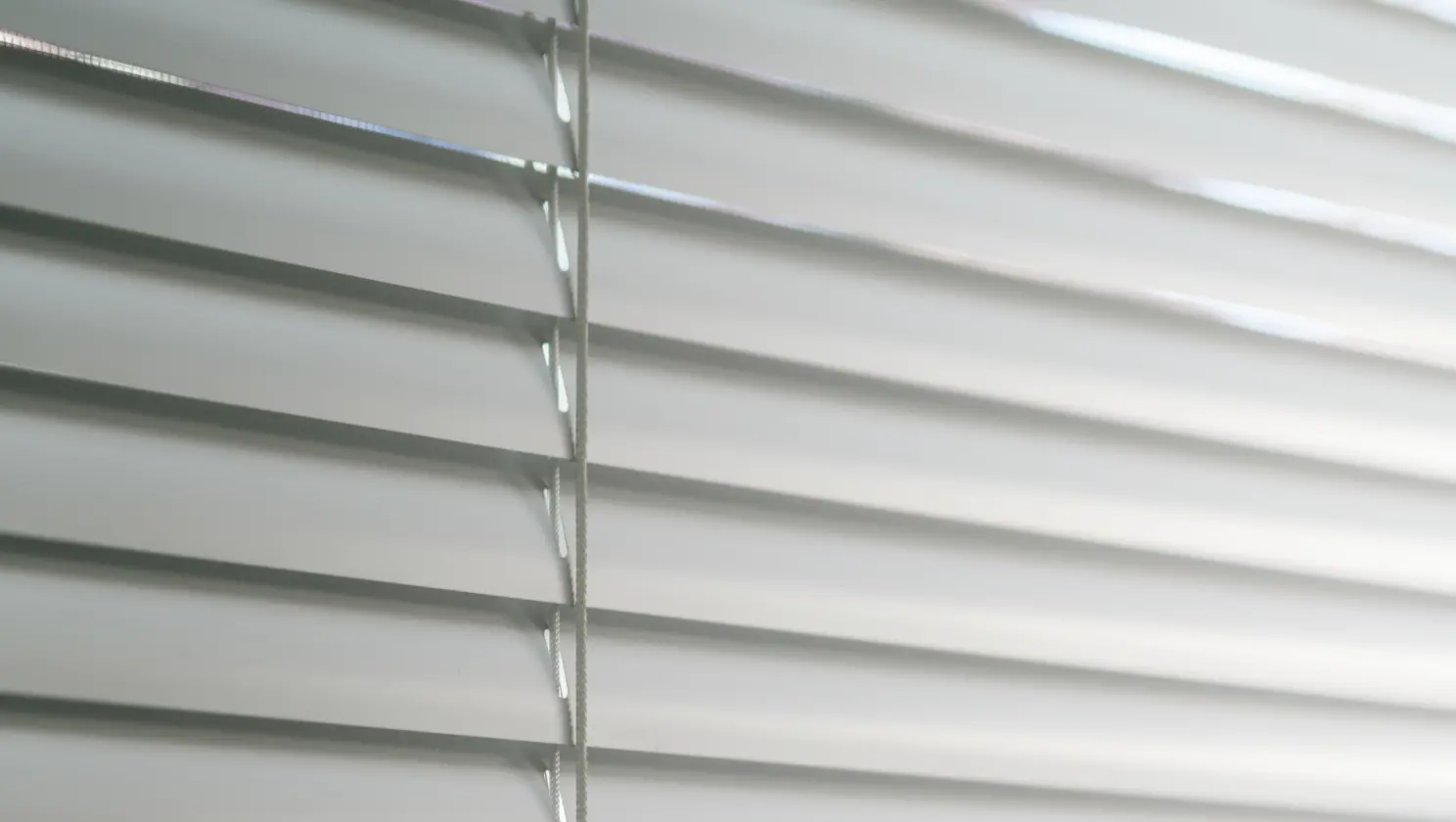

Heat-Reflective Slats
These slats are treated with a specialized, infrared-reflective coating that bounces back heat rays, minimizing both heat generation and infiltration. By using them, you can lower cooling loads and enhance indoor energy efficiency.
Details
Motor Specifications
| Power Source Voltage | V | AC100 | |
|---|---|---|---|
| Frequency | Hz | 50/60 | |
| Rated Torque | Product width 2,050 mm or less | N・m | 1.47 |
| Product width 2,050 mm or | N・m | 2.45 | |
| Rated RPM | rpm | 30 | |
| Power Consumption | Operation | W | 38 |
| Standby | W | 0.5 or less | |
| Operating Voltage | V | DC 12 | |
| Operating Consumption | mA | 6 | |
| Operating Temperature Range | °C | 0 to 50 (without condensation) | |
| Rated Running Time | sec. | 130 | |
For more details (Coming soon)
