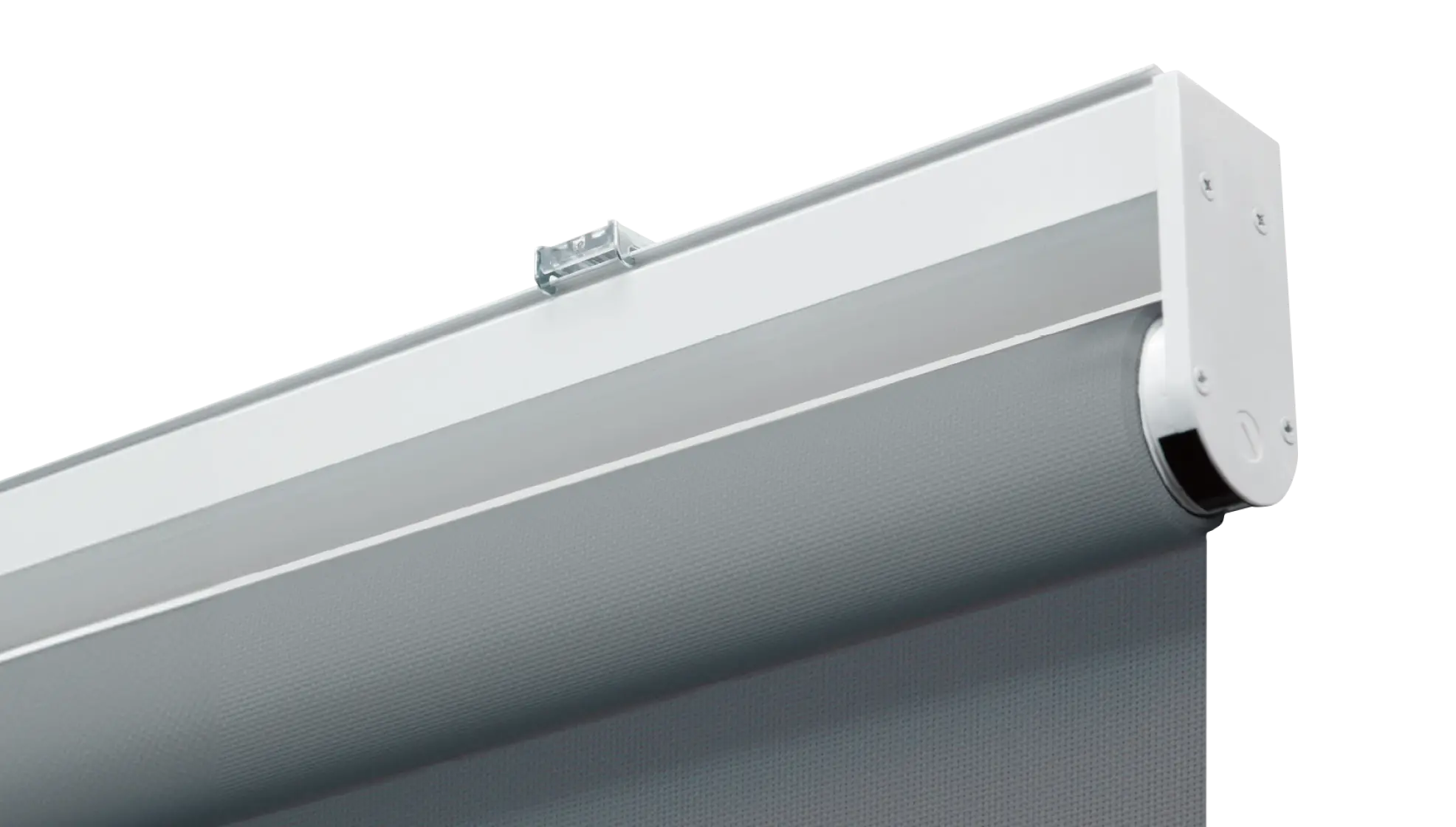

Motorized Roller Blind
Mytec AT-K
- Motorized roller blind with ultra-quiet operation.
- Synchronos operation enables perfect alignment even side by side units.
- The small gap (14 mm per side) between the screen and main body.
- The snap bracket is available for easy installation and removal.
Feature
- 01
-
The motorized Roller Blind, Mytec AT-K operates noiselessly.
(35 dB or less in a no-load state). - 02
-
The Controller and Infra-red Remote-control Receiver are built into the Set Bar for high visual appeal.
- 03
-

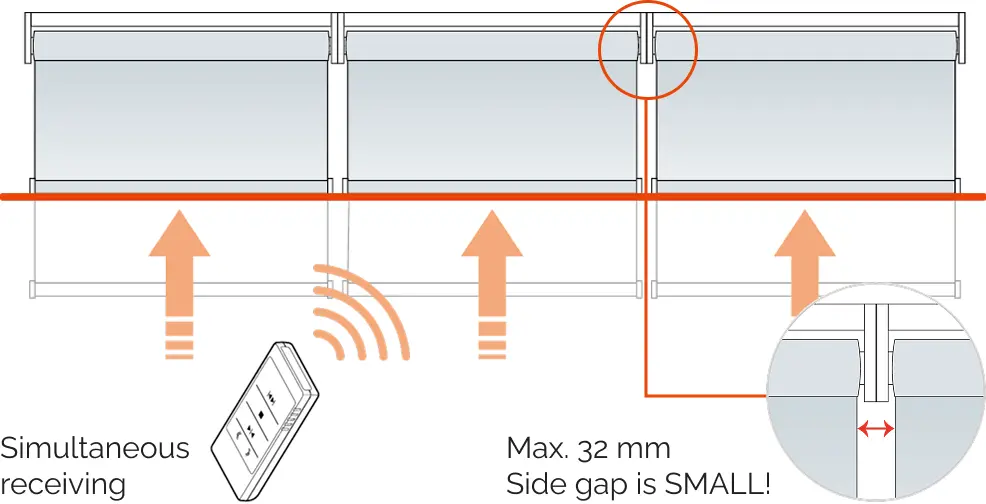

The small gap (14 mm per side) between the screen and main body simplifies the design.
- 04
-
Synchronized operation—When operating shades of the same height side by side, each shade synchronize in the same height and speed.
- 05
-
Less than 25 W power consumption per unit.
- 06
-
The main unit is easily installed with the snap bracket.
dB: A unit of loudness. To the human ear,
a reduction of 10 dB is perceived as an approximately 50 percent reduction of loudness.
Mytec AT-K
All Screens stop at the same position without disturbance.
Other product
It is unsightly, because unstoppable at the same position.
Details
Motor Specifications
| Rated voltage | AC100 - 240V | |
|---|---|---|
| Rated frequency | 50/60Hz | |
| Power consumption | During standby 0.5W | During operation 25W |
| Operating voltage | DC12V | |
| Operating current | 1mA | |
| Rated frequency | 28.0rpm | |
| Working temperature range | 0 - 50°C (No condensation) | |
| Rated time | Continuous operation 2 minutes | |
