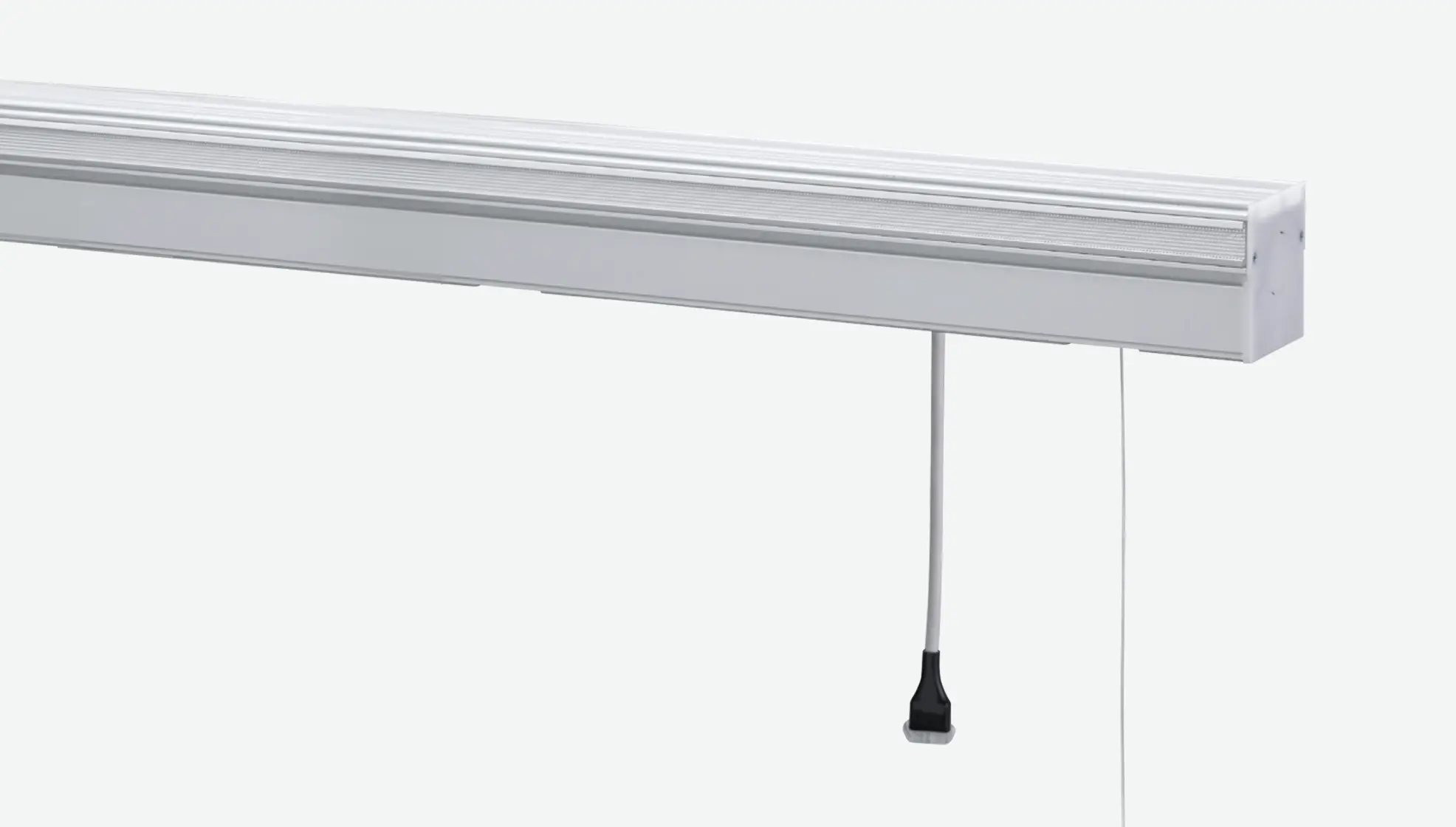

Motorized Roman Shade
Liberta Plus
- The compact design fits neatly into a small curtain box.
- Synchronous operation enables perfect alignment even side by side units.
- Maximum fabric weight is up to 10 kg (22 lb). (Recommend to residence or hotel guest room)
Feature

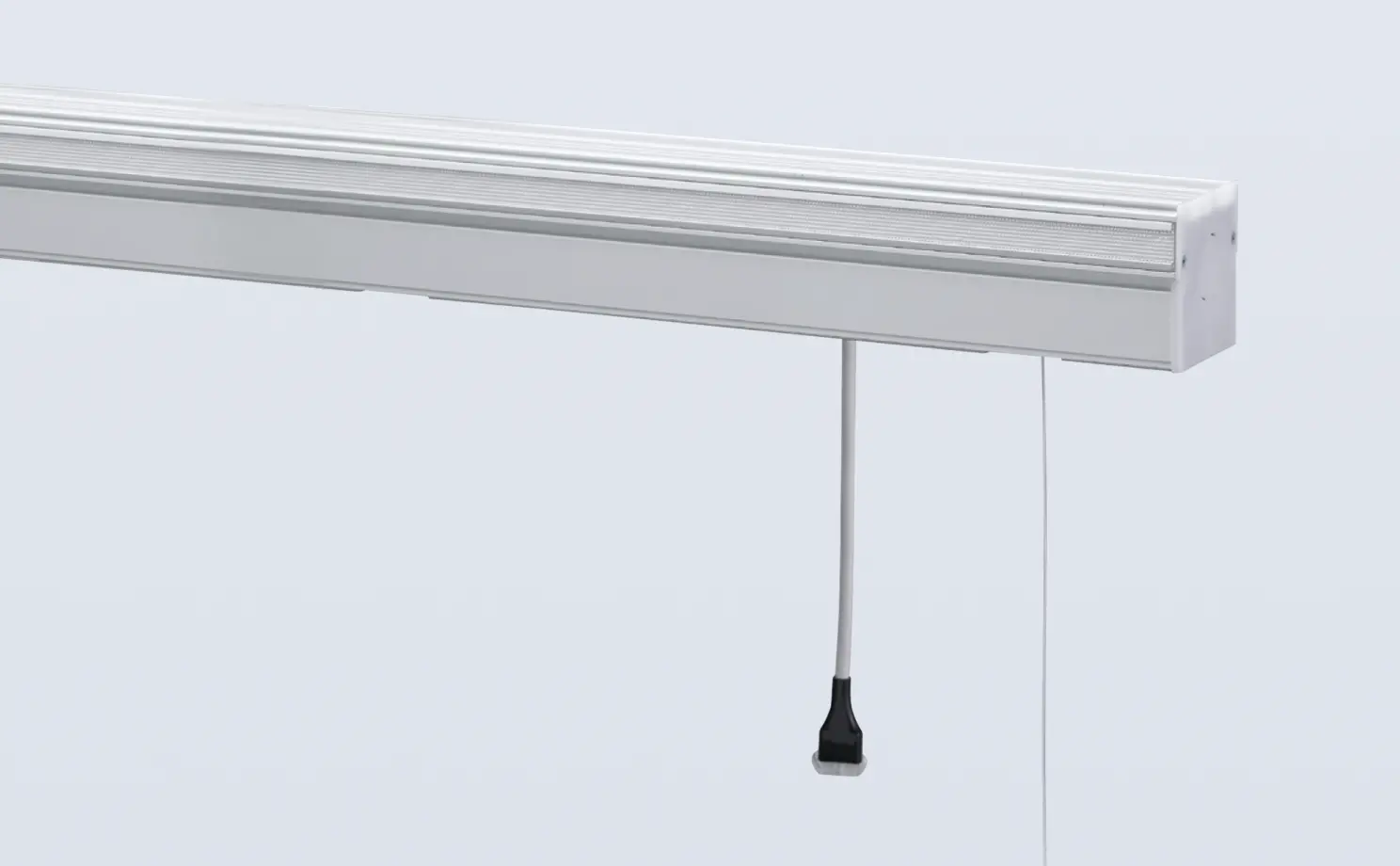

The compact design fits neatly into a small curtain box.
All the necessary parts are uilt-in to the compact head rail so that it does not interfere with the interior design and can be fitted in a narrow curtain box.
Liberta Light
All Screens stop at the same position without disturbance.
Other product
It is unsightly, because unstoppable at the same position.
Maximum fabric weight is up to 10 kg (22 lb),
the maximum size is up to 4.0 m (157″).
Joint specification is available up to 6.0 m (balloon style up to 4.0 m only).
Suitable size and specification for residence or hotel guest rooms especially.
Single-point Coiling Drum
The Single-point Coiling Drum prevents entanglement when winding the Lift Cord.
As the shades move up and down, they do not move from side to side, so they move straight.
Lineup
Note: The Plain, Sharp (with Rods), and Balloon styles hang flat when lowered.
Details
Motor Specifications
| Power Source Voltage | V | AC100–220 | |
|---|---|---|---|
| Frequency | Hz | 50/60 | |
| Rated Torque | Nm | 2.45 | |
| Power Consumption | Operation | W | 38 |
| Standby | W | 0.3 | |
| Operating Voltage | V | DC 12 | |
| Operating Consumption | mA | 6 | |
| Operating Temperature Range | °C | 0 to 50 (without condensation) | |
| Rated RPM | rpm | 30 | |
| Operating Time | sec./m | 30 | |
| Rated Running Time | sec. | 130 | |
