Motorized Roman Shade

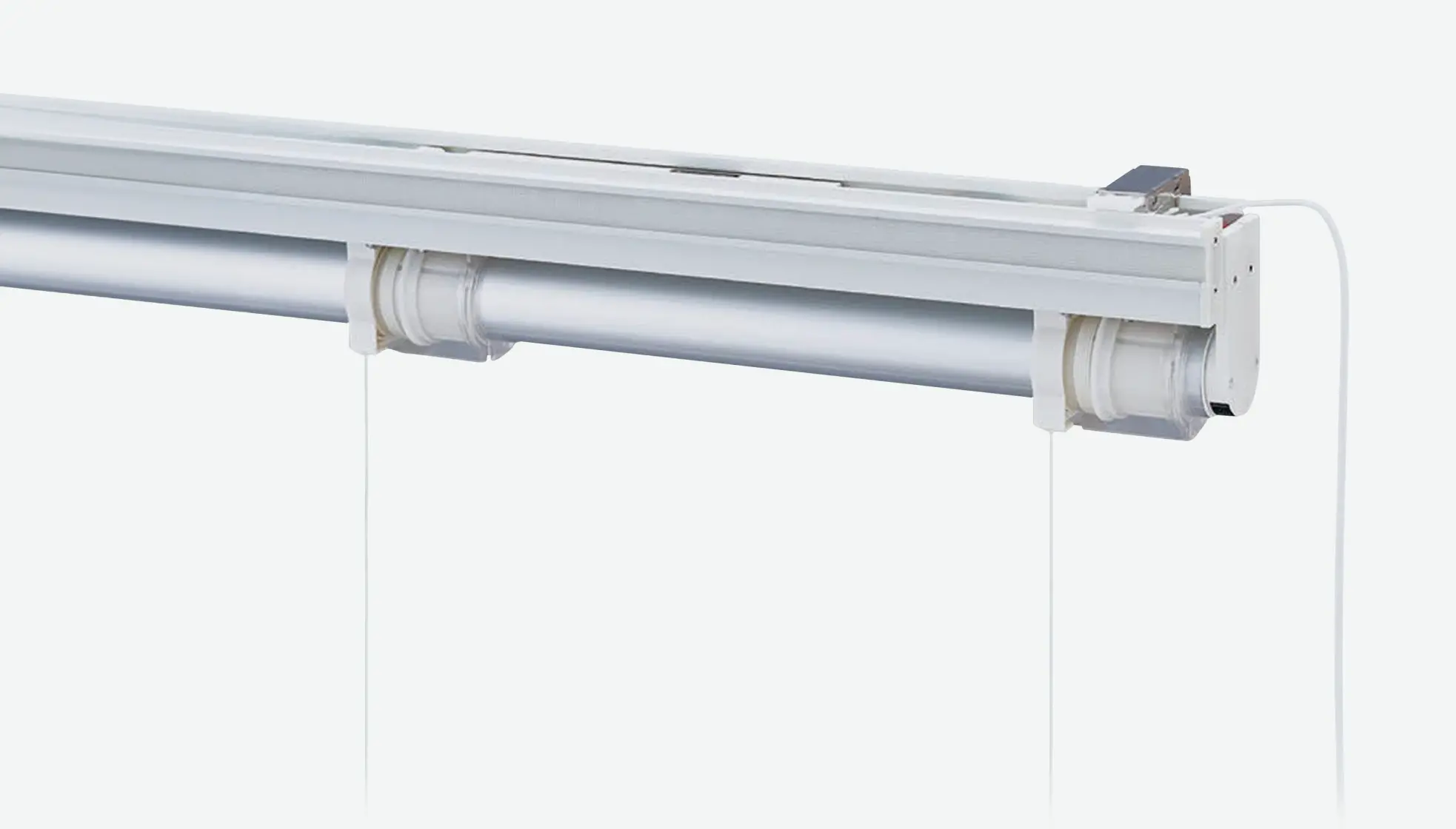

Liberta Light
- The compact design fits neatly into a small curta box.
- Quiet operation as 36 dB.
- Synchronous operation enables perfect alignment even side units.
Feature

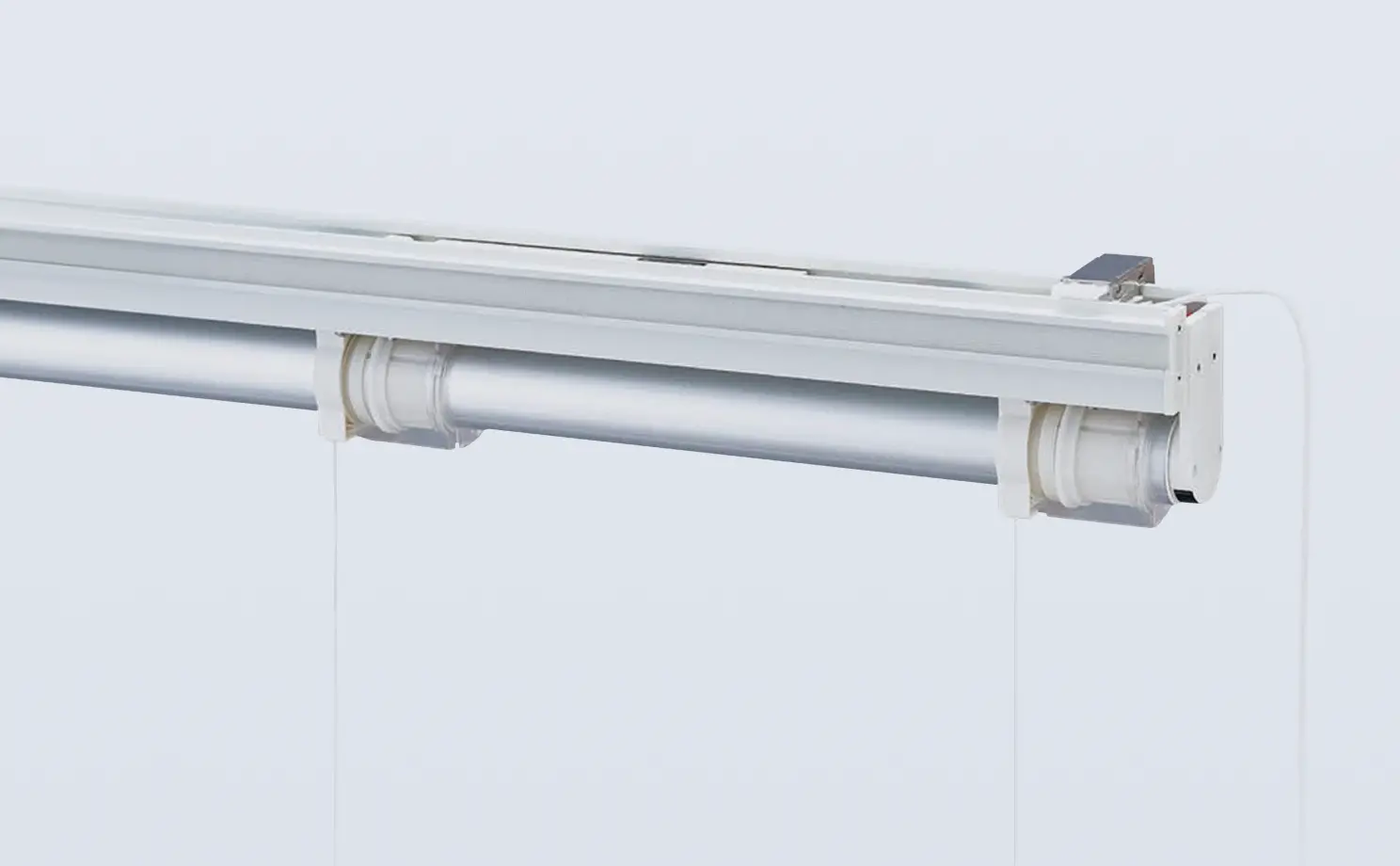

Compact design with a minimum width of 500 mm (19.7″).
Due to the compact design of the Head Box, the minimum width is 500 mm (19.7″). Possible to install on small windows.
Very quiet operation sound: 36 dB
High quietness is suitable for bedrooms.
dB: A unit of loudness. To the human ear,
a reduction of 10 dB is perceived as an approximately 50 percent reduction of loudness.
Neat Appearance

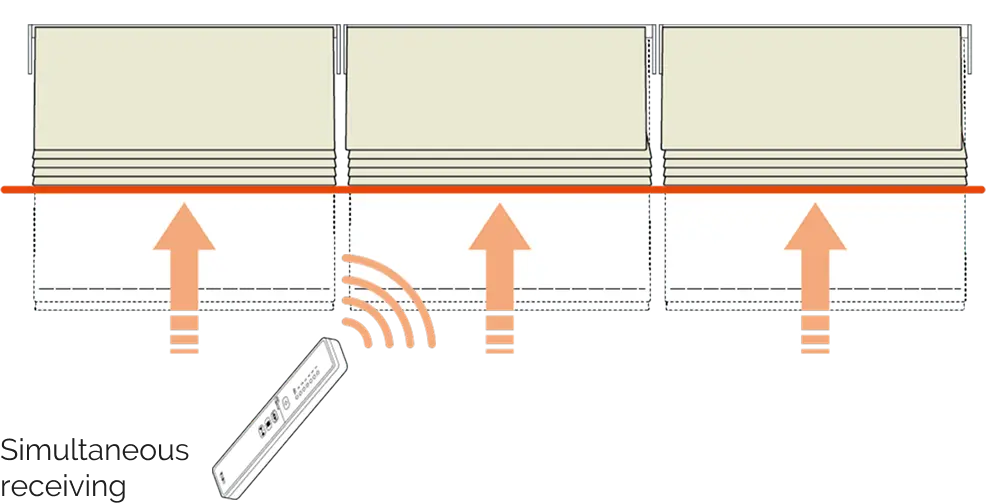

Synchronized operation
When operating shades of the
same height side by side,
each shade synchronize in the
same height and speed.
Liberta Light
All Roman Shades stop at the same position without disturbance.

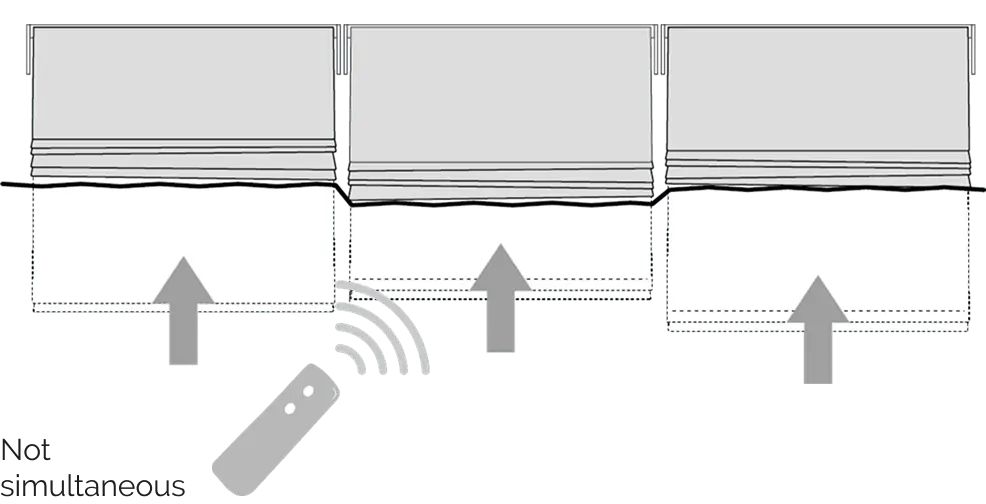

Other product
It is unsightly, because unstoppable at the same position.

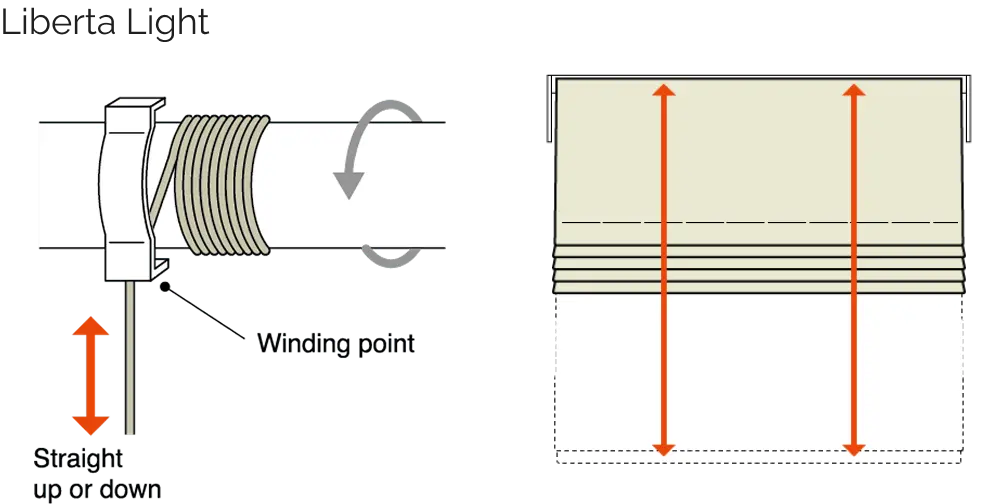

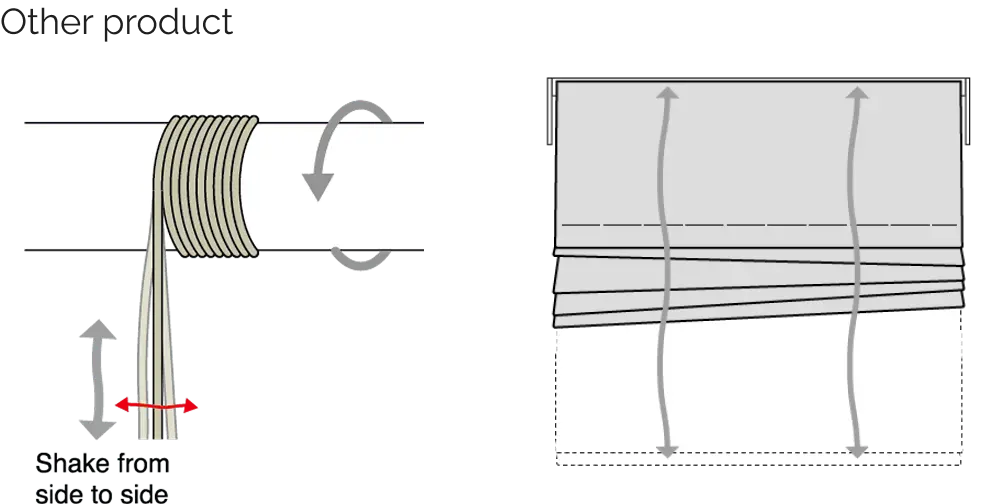

Single-point Coiling Drum
The Single-point Coiling Drum prevents entanglement when winding the Lift Cord.
As the shades move up and down, they do not move from side to side, so they move straight.
Lineup
Note: The Plain, Sharp (with Rods), and Balloon styles hang flat when lowered.
Details
Motor Specifications
| Power Source Voltage | V | AC100 - 240 | |
|---|---|---|---|
| Frequency | Hz | 50 / 60 | |
| Rated Torque | Nm | 0.94 | |
| Power Consumption | Operation | W | 25 |
| Standby | W | 0.5 | |
| Operating Voltage | V | DC 12 | |
| Operating Consumption | mA | 1 | |
| Operating Temperature Range | ℃ | 0 to 50 (without condensation) | |
| Rated RPM | rpm | 28 (default setting) | |
| Operating Time | sec./m | 13.7 (default setting) | |
| Rated Running Time | sec. | 120 | |
