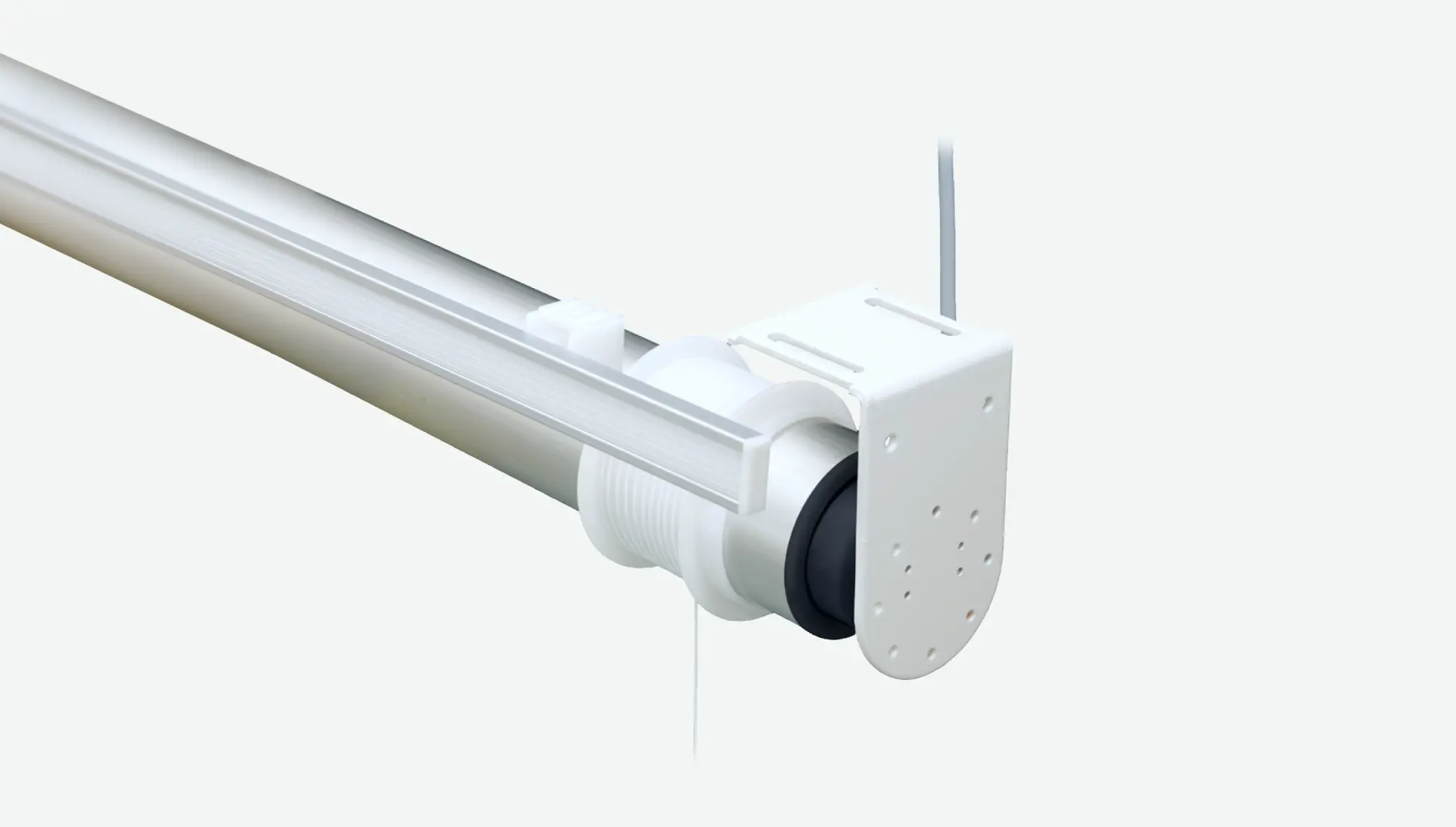

Motorized Roman Shade
ATF45-RS
- Perfect fit for large and high windows.
- 4,000 mm (158″) wide is possible with Intermediate Bracket.
- Switch operation type and FM remote type are available.
Feature
- 01
-
Quiet operation less than 40 dB.
- 02
-
Fit for a large or high window: up to 4 m (158″) in width or 4 m (158″) in height.
- 03
-
Switch operation type and FM remote type (built-in FM Receiver) are available.
Details
Motor Specifications
| Power Source Voltage | V | AC220 - 230 |
|---|---|---|
| Frequency | Hz | 50 / 60 |
| Current | A | 0.485 |
| Power Consumption | W | 115 |
| Rated Torque | Nm | 4 |
| Rated RPM | rpm | 23 |
| Rated Running Time | min | 4 |
| Ambient Temperature | ℃ | -10 to 40 |
- Since this is not synchronized motor, RPM is vary depending on fabric weight.
