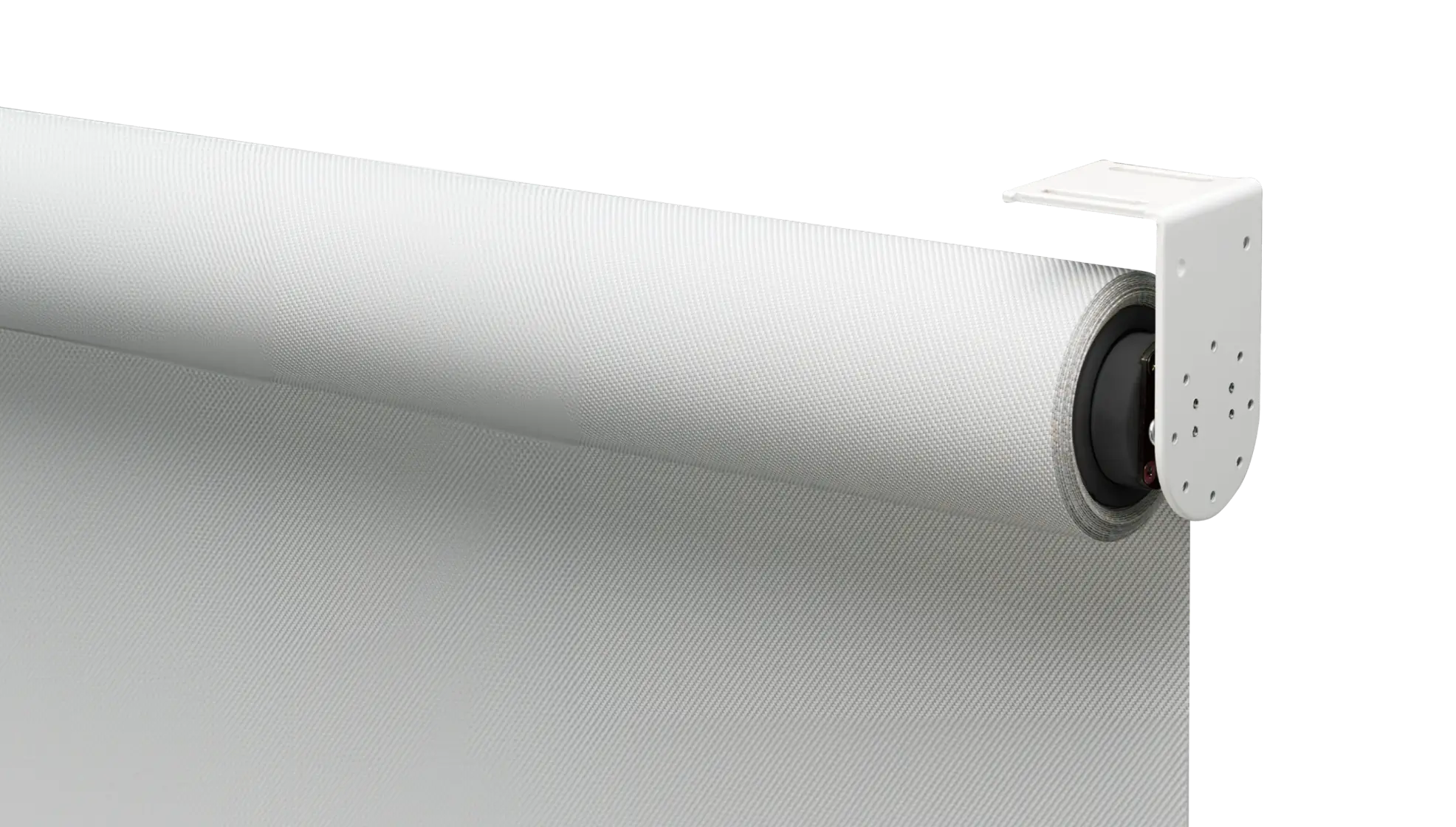

Motorized Roller Blind
ATF45-RB
- Perfect fit for large and high windows.
- Black-out operation is also available with Side Rails.
- Switch operation type and FM remote type are available.
Feature
- 01
-
Quiet operation less than 40 dB.
- 02
-
A black-out type is available with Side Rails.
- 03
-
Fit for a large or high window: up to 2.5 m (98″) in width or 5 m (197″) in height.
- 04
-
Switch operation type and FM remote type (built-in FM Receiver) are available.
Details
Motor Specifications
| Power Source Voltage | V | AC220 - 230 |
|---|---|---|
| Frequency | Hz | 50/60 |
| Current | A | 0.485 |
| Power Consumption | W | 115 |
| Rated Torque | Nm | 4 |
| Rated RPM | rpm | 23 |
| Rated Running Time | min. | 4 |
| Ambient Temperature | °C | -10 to 40 |
*Since this is not synchronized motor, RPM is vary depending on fabric weight.
