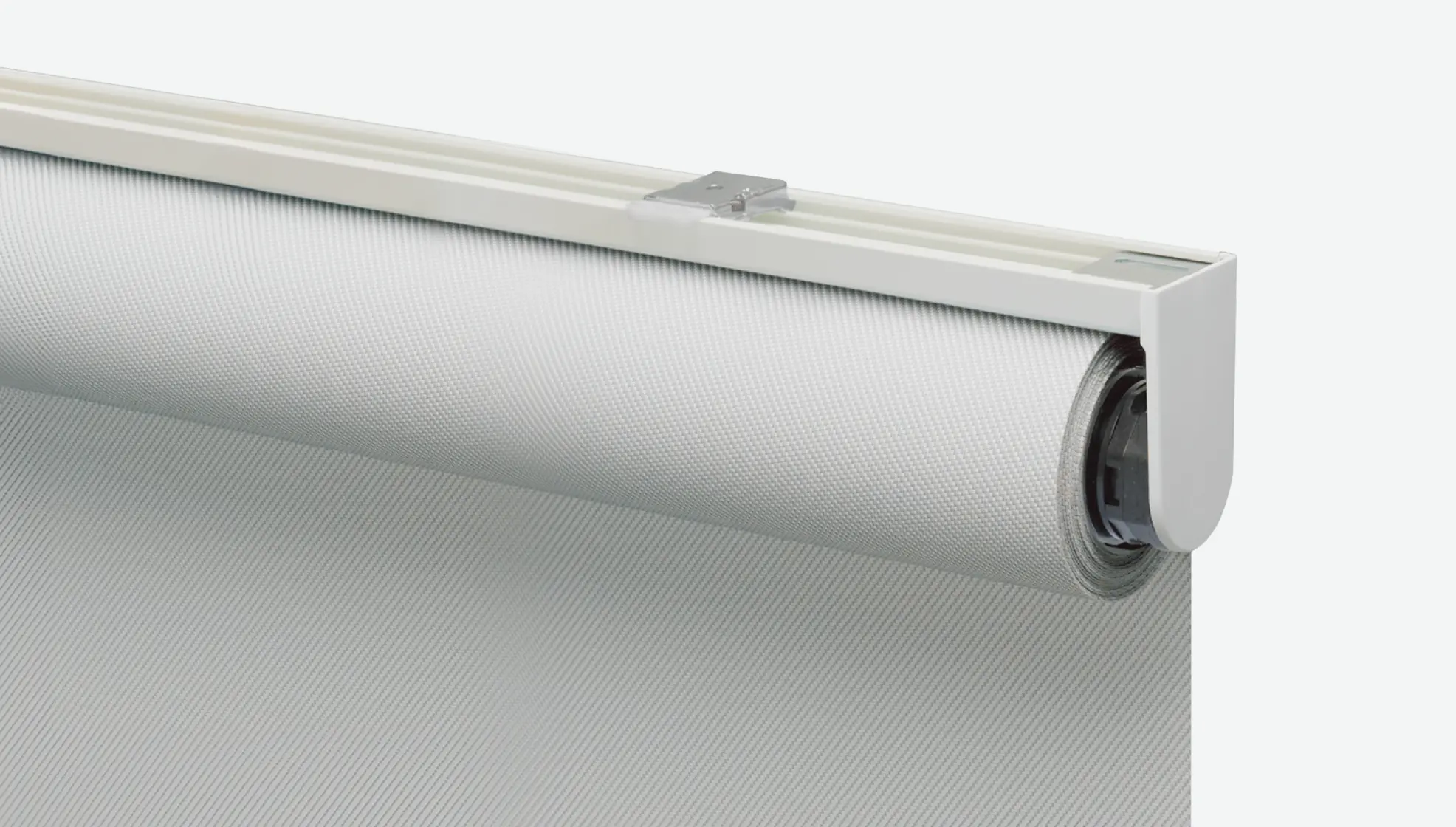

Motorized Roller Blind
ATF35-RB
- Exceptionally compact motorized roller blind.
- Two installation options are available: a neatly-fixed option, Side Bracket type or an easy-to-install option, Set Bar type.
- Sitch operation type and FM remote type are available.
Feature
- 01
-
This compact design motorized roller blind offers a variety of uses:
from commercial to home. - 02
-
ATF35 tubular motor realizes quiet operation. (less than 40 dB)
- 03
-
Motor for switch operation and motor (built-in FM Receiver) are avilable.
- 04
-
Easy Snap Bracket is available for easy installation and removal. (Set Bar type)
- 05
-
At the Set bar type, the gap between Side Brackets and a screen is small.
Details
Motor Specifications
| Power Source Voltage | V | AC220 - 230 |
|---|---|---|
| Frequency | Hz | 50/60 |
| Current | A | 0.485 |
| Power Consumption | W | 115 |
| Rated Torque | Nm | 4 |
| Rated RPM | rpm | 23 |
| Rated Running Time | min. | 4 |
| Ambient Temperature | °C | - 10 to 40 |
*Since this is not synchronized motor, RPM is vary depending on fabric weight.
