Curtain Tracks Functional
Partrac II

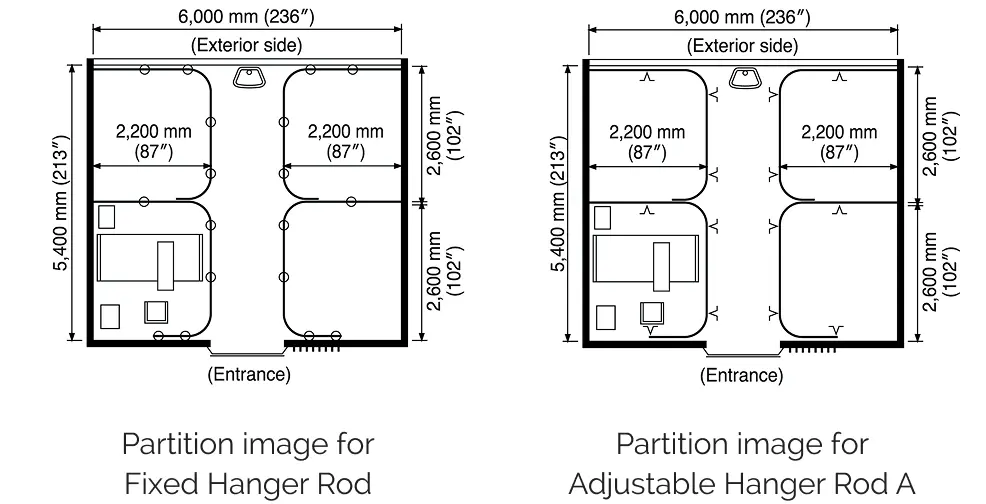

- Ideal for use as hospital cubicle rails.
- A wide variety of components offers an optimal solution to installation challenges.
- Wheel-type rollers assure smooth operation.
Feature

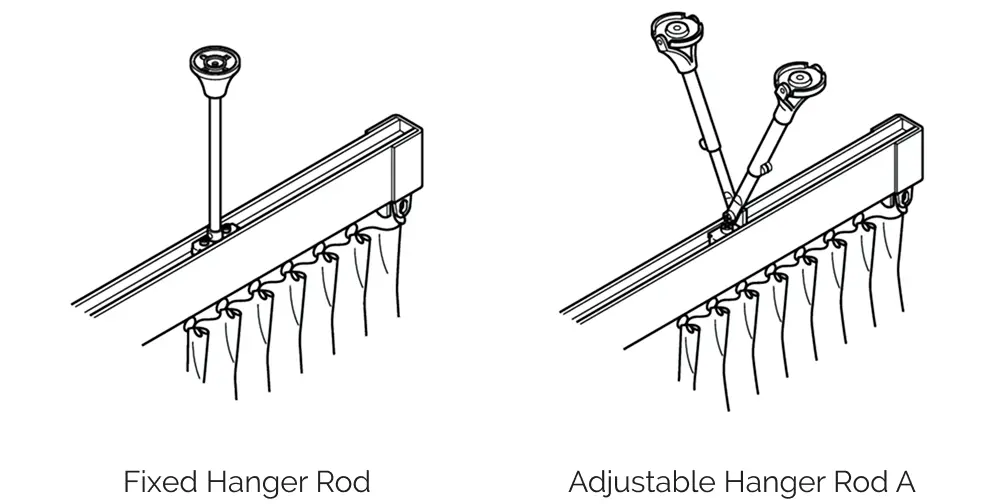

Application versatility with the Fixed Hanger Rod and Adjustable Hanger Rod A.
Two types of hangers are available. The Fixed Hanger Rod provides a neat appearance while the Adjustable Hanger Rod A offers extra convenience when hanging directly above the rail is not possible.
- The Fixed Hanger Rod includes a base, cover and hanger rod.
- Available in two colors: white or natural.

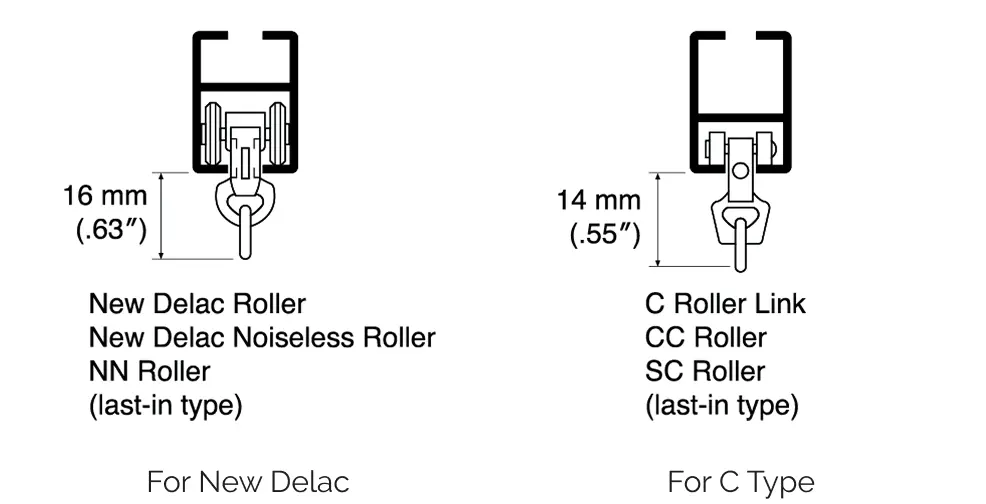

New Delac and
C Type rollers can be used.
Being able to use different types of rollers enables more efficient use of stock.
New Delac IV Rollers can not be used.

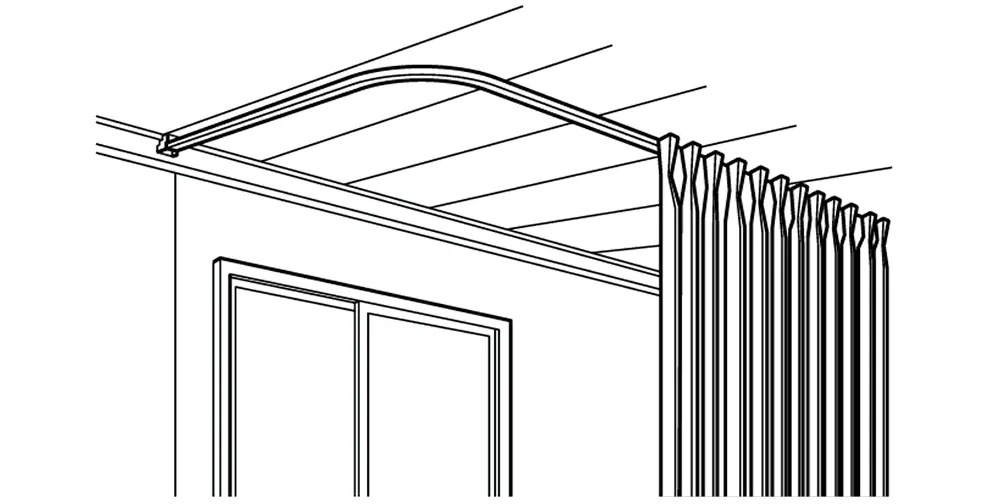

Standard curve rails and customized rails are available.
Because of short delivery time, standard curved rails are recommended when installation is urgent.
Delivery of customized curved rails takes a little longer but they offer advantages in terms of strength and price.
- Standard curved rails
0.5 m × 0.5 m (20″ × 20″) and 1.0 m × 1.0 m (39″ × 39″) rails are available.
- Customized curved rails A single rail can be up to 5.0 m (197″) long.
- The bending method used differs depending on whether New Delac or C Type Rollers are used. Be sure to specify which rollers are to be used when you order.
Lineup
