Curtain Tracks Functional

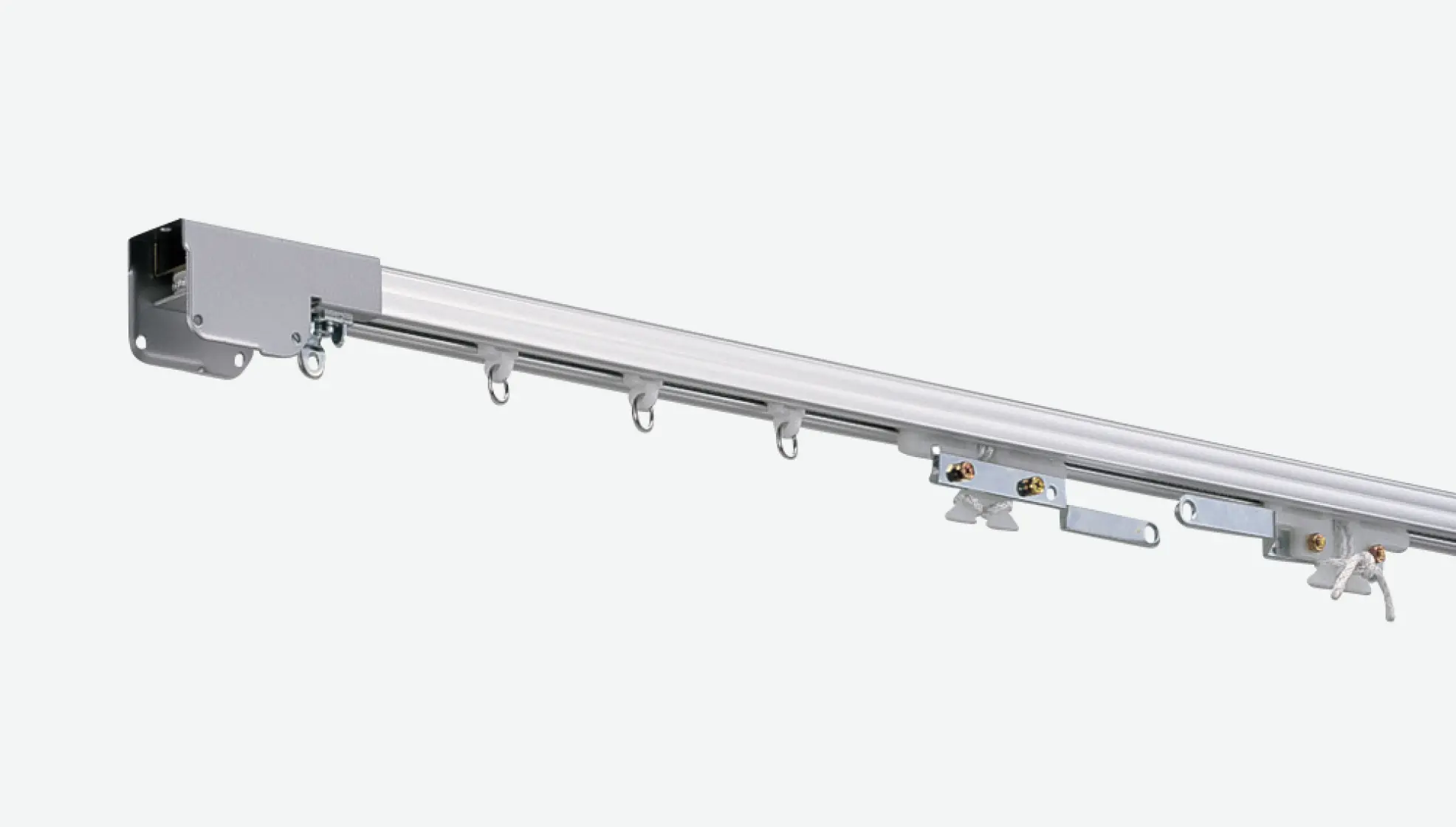

Cord Draw Components

Rails can be selected to match curtain weight and size.
All rails use wheel-type rollers for smooth operation.
Parts are available for curved, skylight and overlap rails as well as straight rails.

Feature

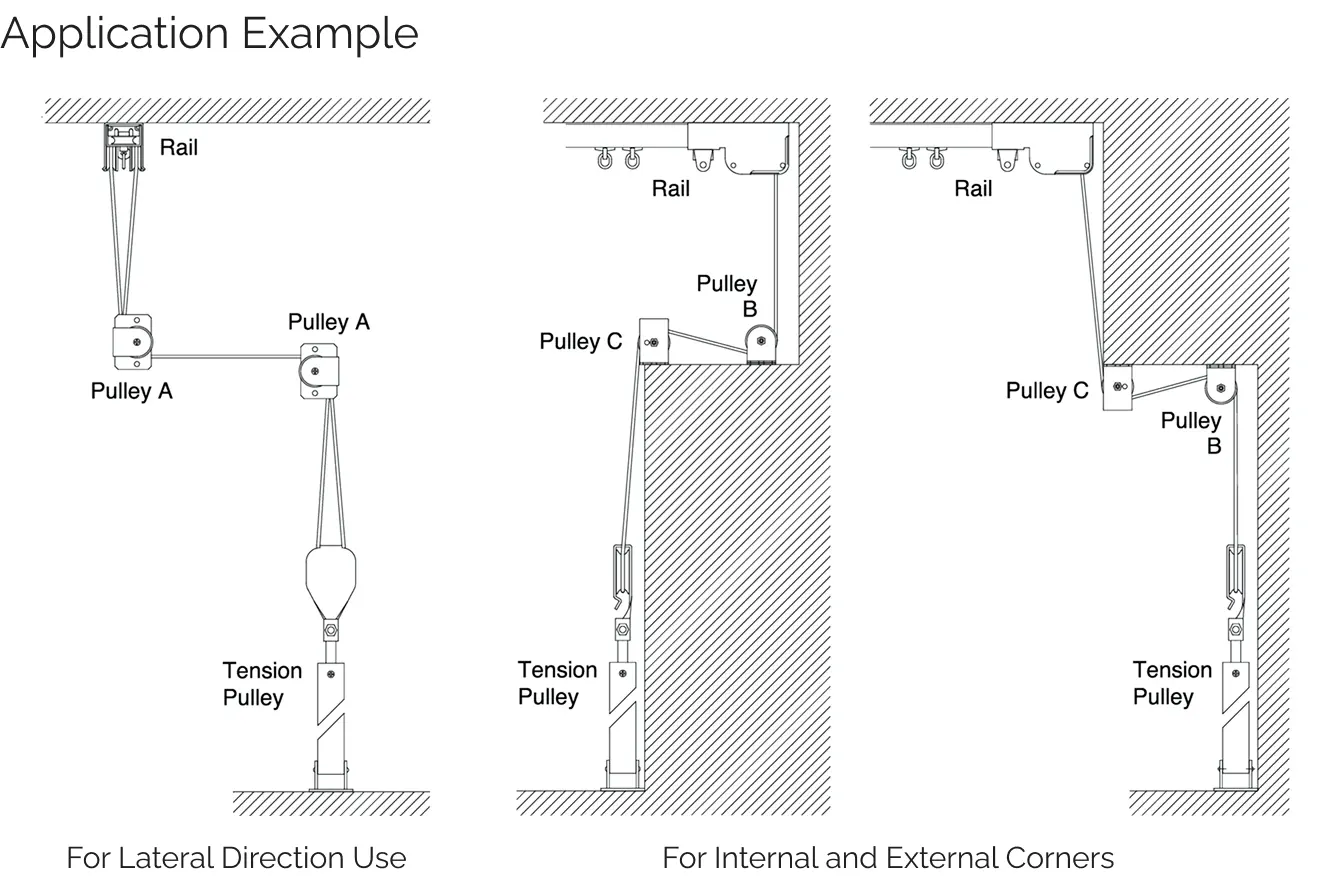

Support pulleys can be used for guiding Traverse Cords to avoid obstructions, or to change the operating location of stage curtains or skylights.

Cord Specifications for Different Rails

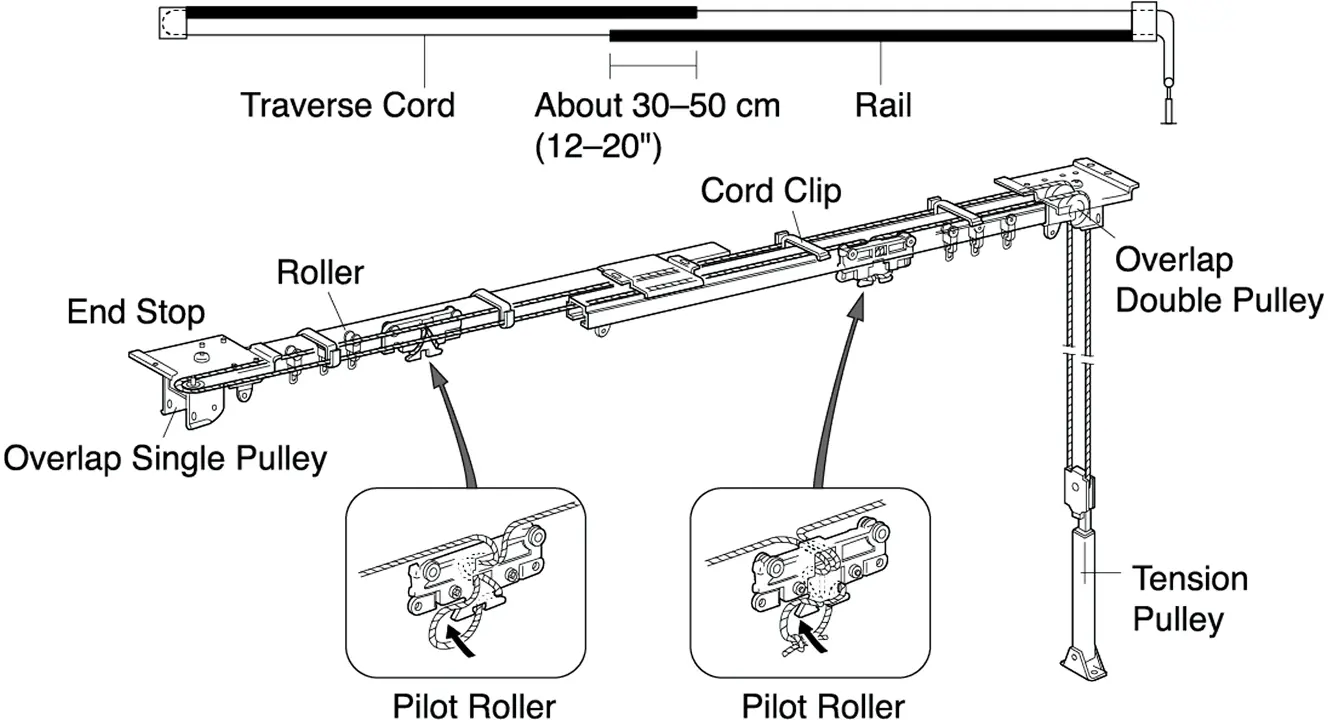

Products	Straight (Two-way Draw, One-way Draw)	Overlap Rail	Curve	Skylight
New Delac	〇	〇	－	〇
Supertrac	〇	〇	〇	〇
Theatrac	〇	〇	－	－
CM2000	〇	－	－	－
Super Selfie Cord Draw	〇	－	〇	〇

Refer to the each catalog.
