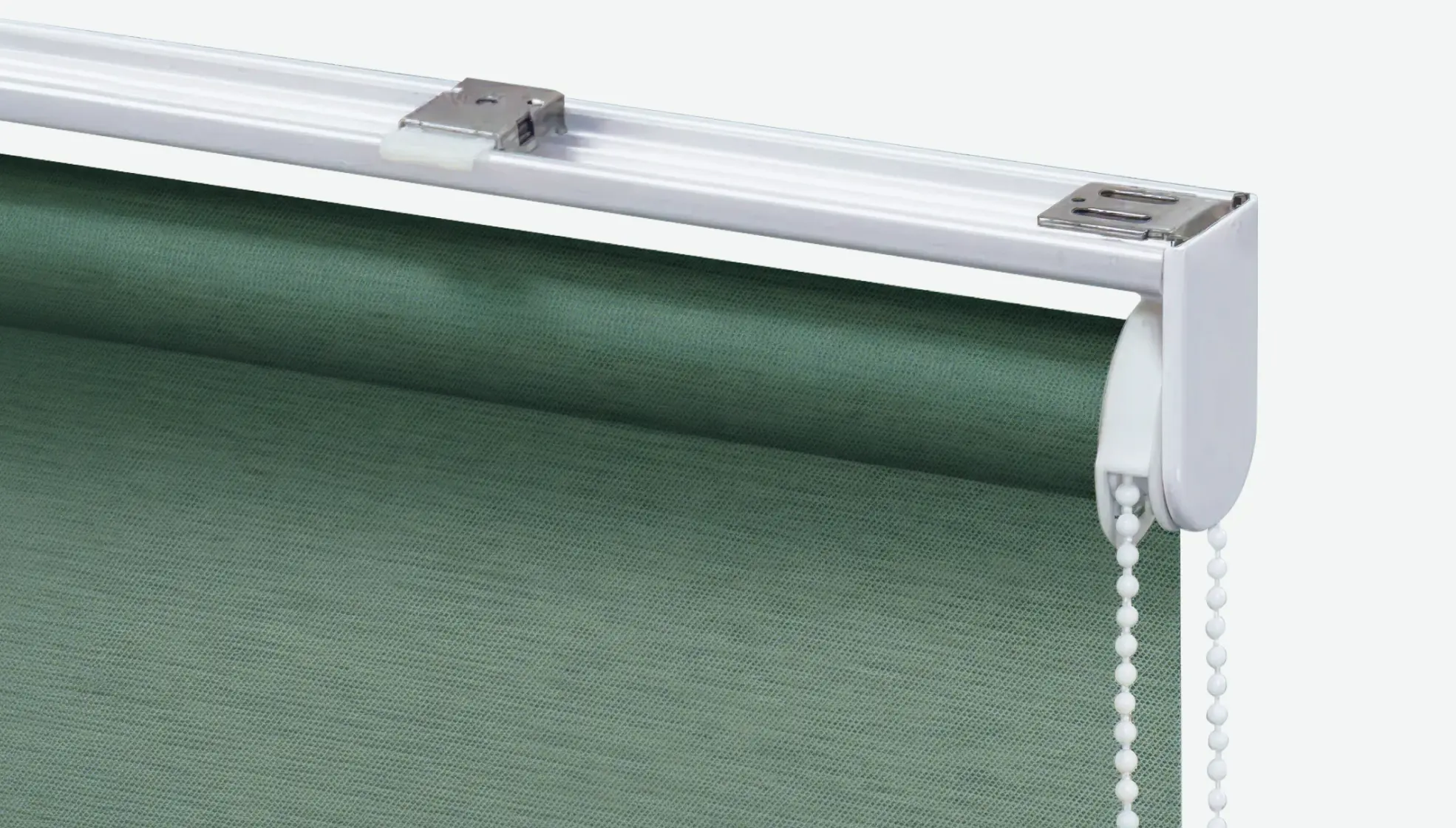

Roller Blind
Ti-1029B/S
- Two standard systems are available.
Ti-1029B: the Ball Chain Drive System
Ti-1029S: the Spring Drive System - The Ti-1029B/S, these are simple and functional roller blinds.
- Blinds up to 2000 mm (79'') width and 2500 mm (98'') height with 2.0 kg (4.4 lb) screen weight are possible.
Feature
Light and smooth operation.
Ti-1029B, operates with the Ball Chain.
Ti-1029S equips the speed adjustment dial with its Spring Drive System.
These two systems enable light and smooth operation of the blind.

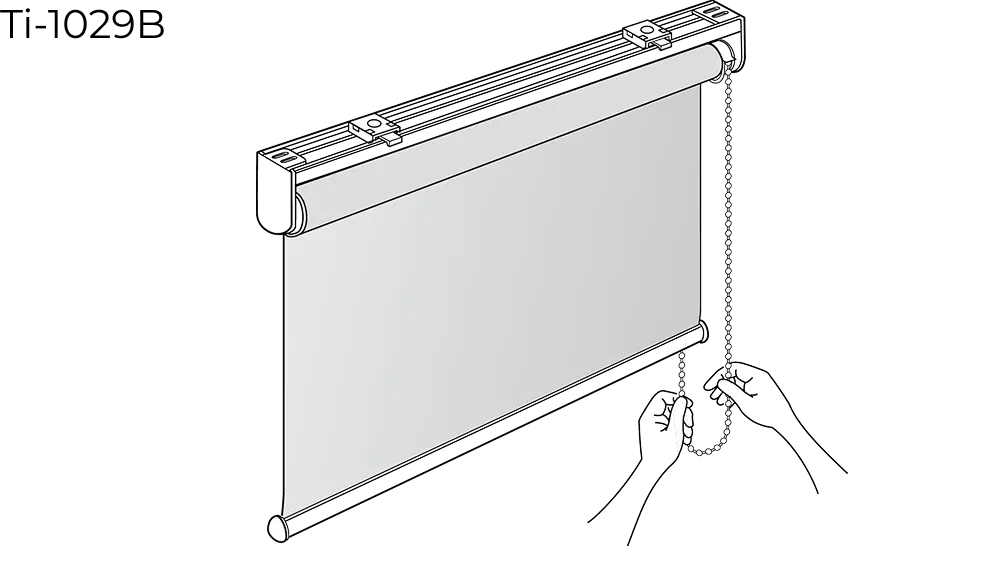

Ball Chain Drive System
- It is available for small or large window at a wide range.
- Ti-1029B has Set Bar or Side Bracket types.

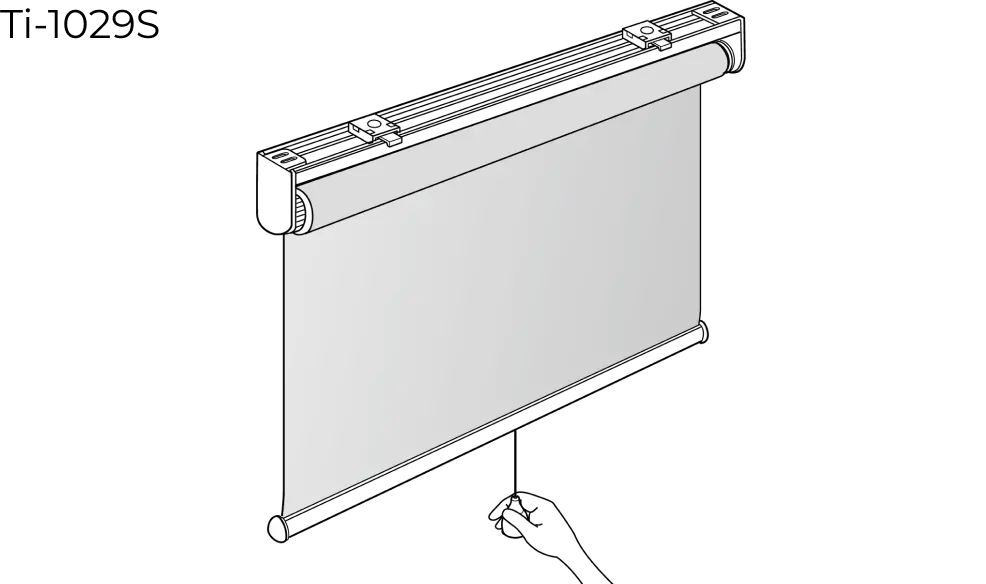

Spring Drive System
- Just pull down the pull set, and the blind stops at anywhere you want. To raise the screen, pull the pull set just a little. The blind rolls up at the same speed without acceleration.
- Speed adjustable for roll up screen.
- Ti-1029S has Set Bar type only.

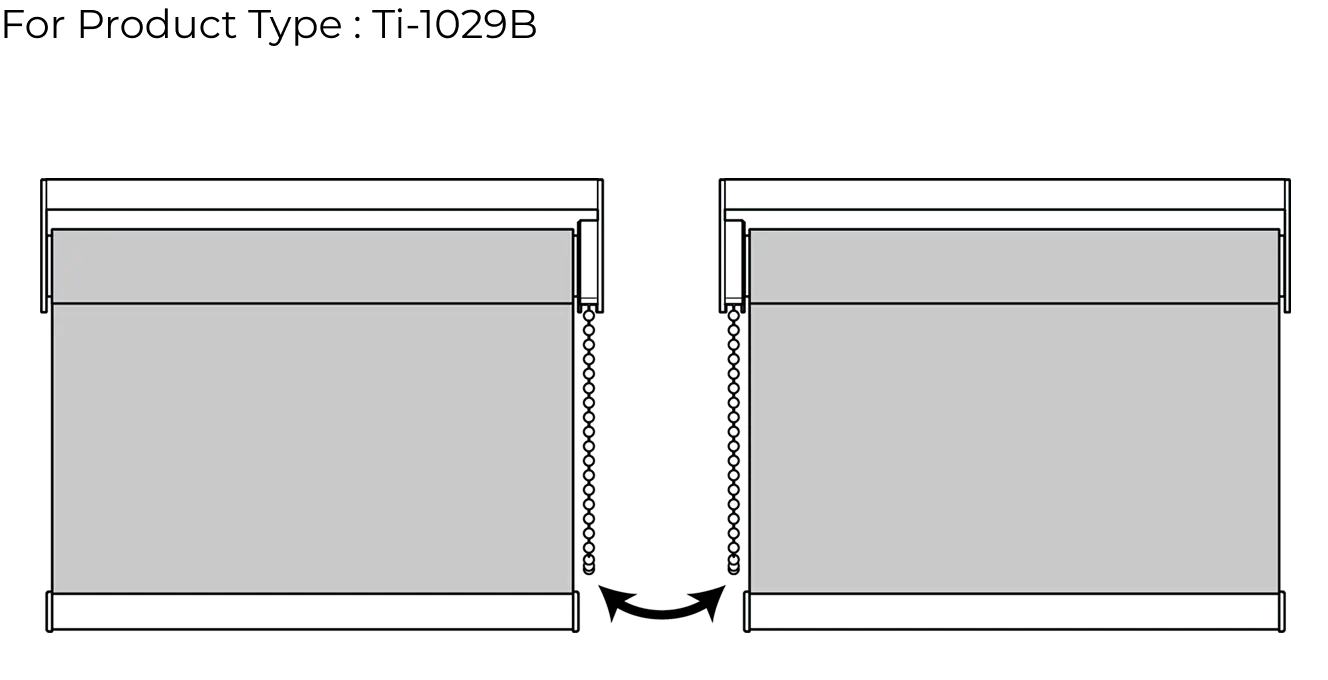

Operation position changing at right or left
- Operation position is possible to change at right or left, because mounting parts are common at both types.
Speed adjustment dial
- The speed adjustment dial, which is provided as standard equipment, makes it possible to adjust how fast the screen rises, without using any tools and without detaching the roller blind.
- Speed adjustable for roll up screen.
- Ti-1029S has Set Bar type only.
How to use the speed adjustment dial
To make the screen rise more quickly
Stop the screen at the halfway up (or down) position and turn the dial as if rolling it toward you.
To make the screen rise more slowly
Stop the screen at the halfway up (or down) position and turn the dial as if rolling it away from you.

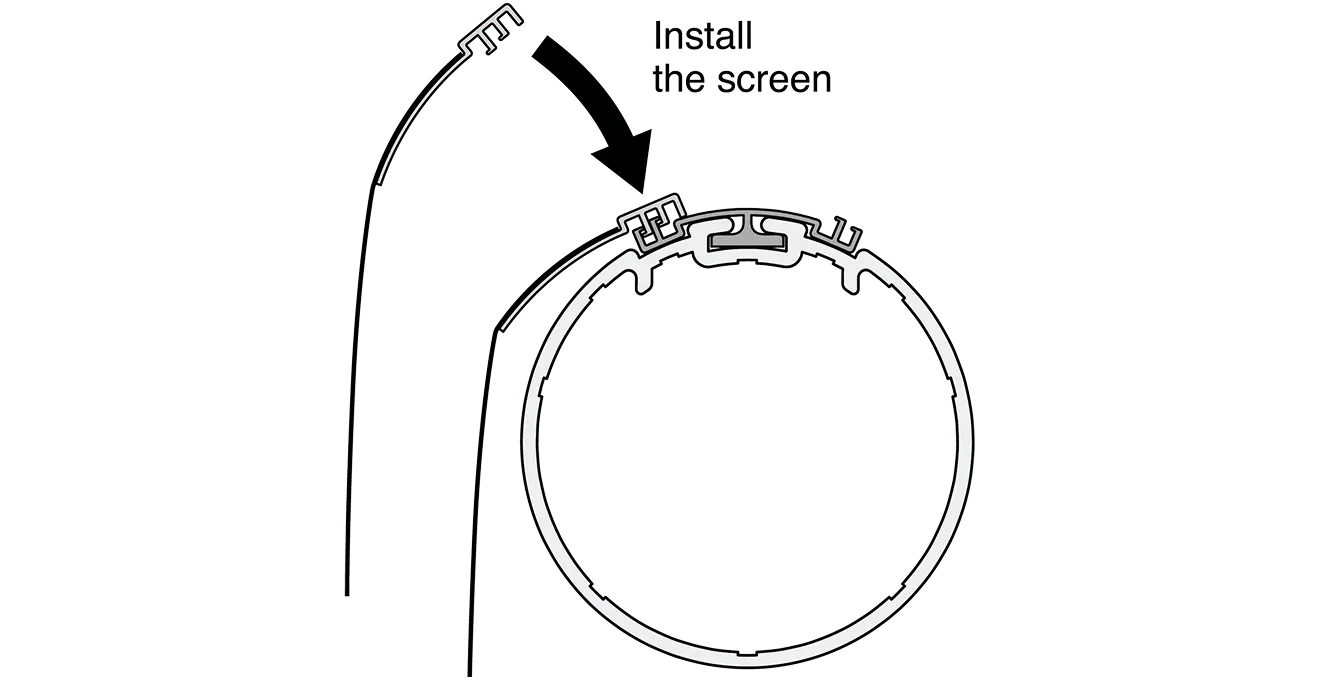

Fastening Plate (Option)
- Exchange of screen is possible by Fastening Plate.
- It is possible to remove from the unit, and screen can be washed. (For the washable type screen.)
Lineup

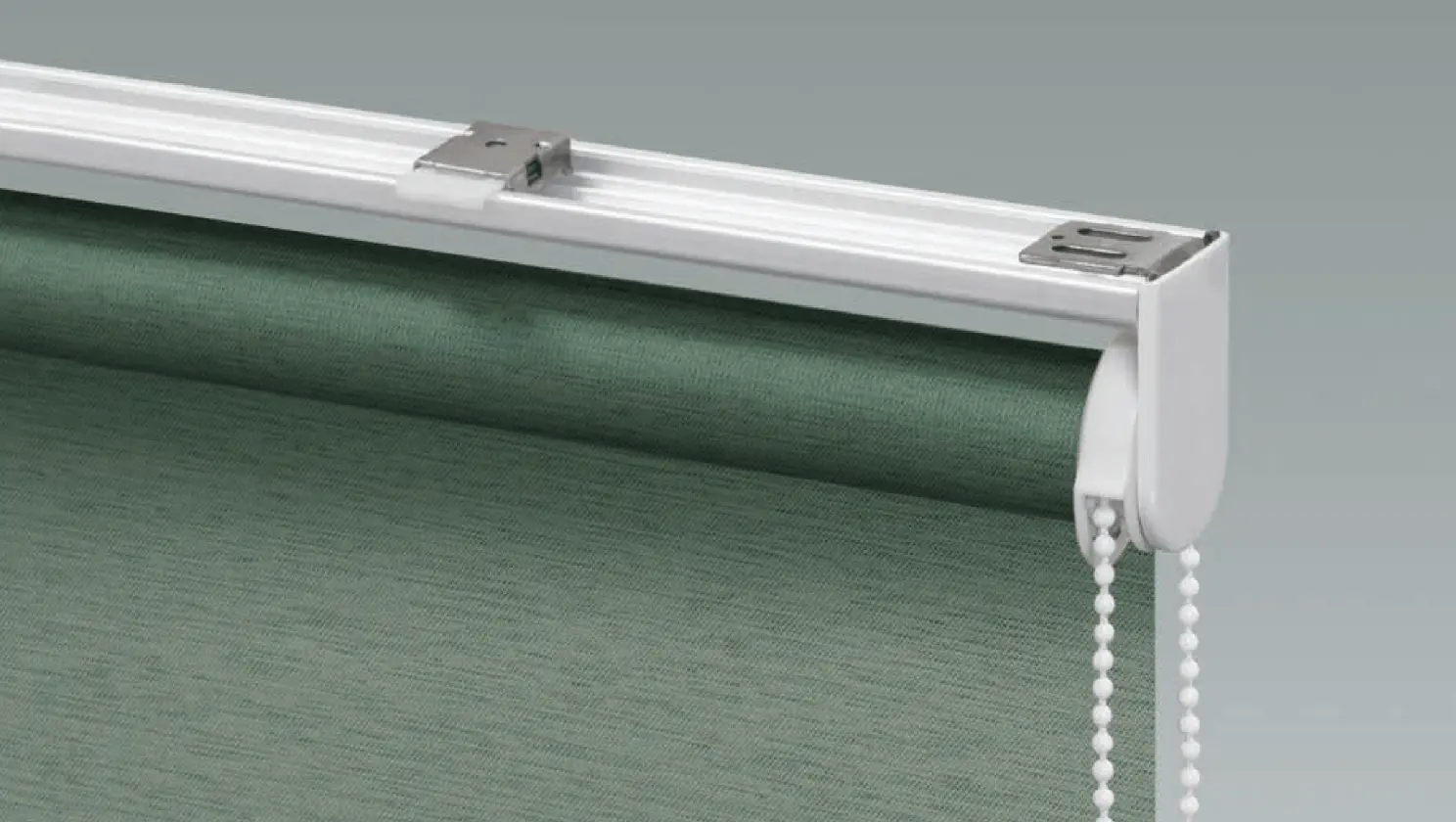

Ti-1029B
Set Bar Type
- The bracket can be obscured by installing the bracket back and forth opposite, when setting it up.

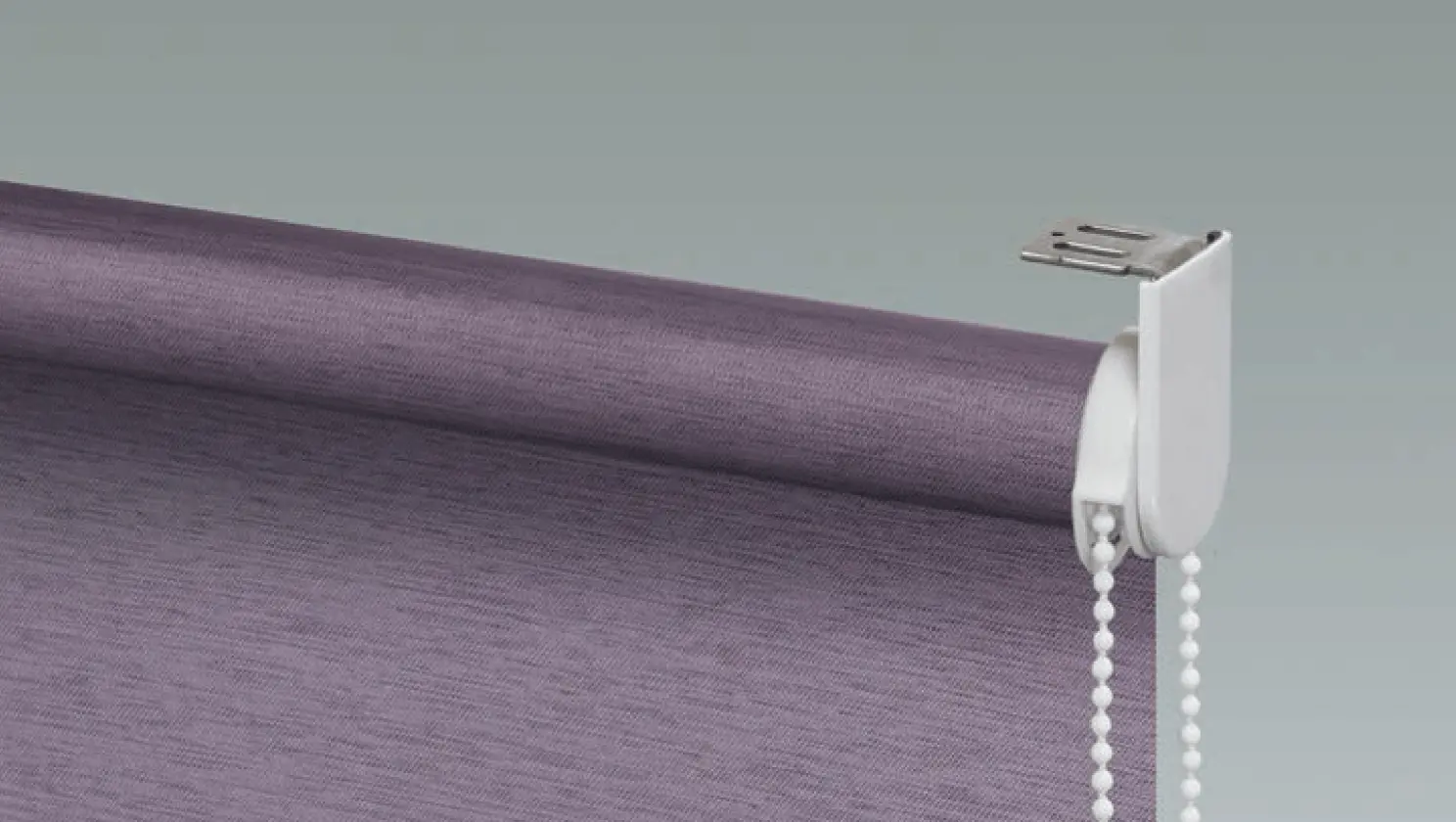

Ti-1029B
Side Bracket Type
- Blinds up to 2000 mm (79″) width and 2500 mm (98″) height with 2.0 kg (4.4 lb) screen weight are possible.
- With Set Bar type, installation is very simple.
Mounting the brackets first and then snap the blind onto the brackets.

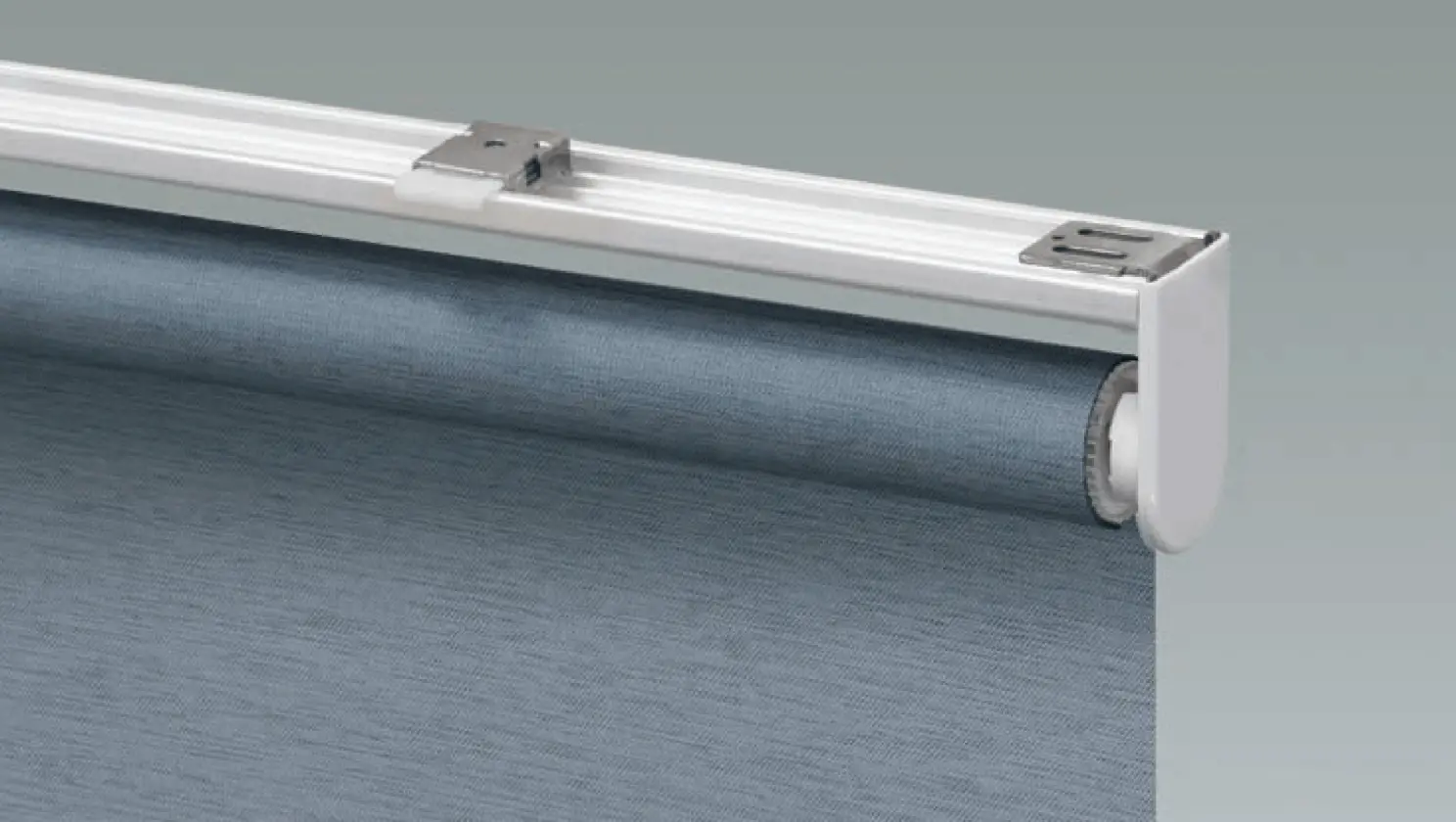

Ti-1029S
Set Bar Type
- No irritation to stop the blind. The mechanism assures you to stop the blind anywhere as you want.
- With Set Bar type, installation is very simple.
Mounting the brackets first and then snap the blind onto the brackets.
