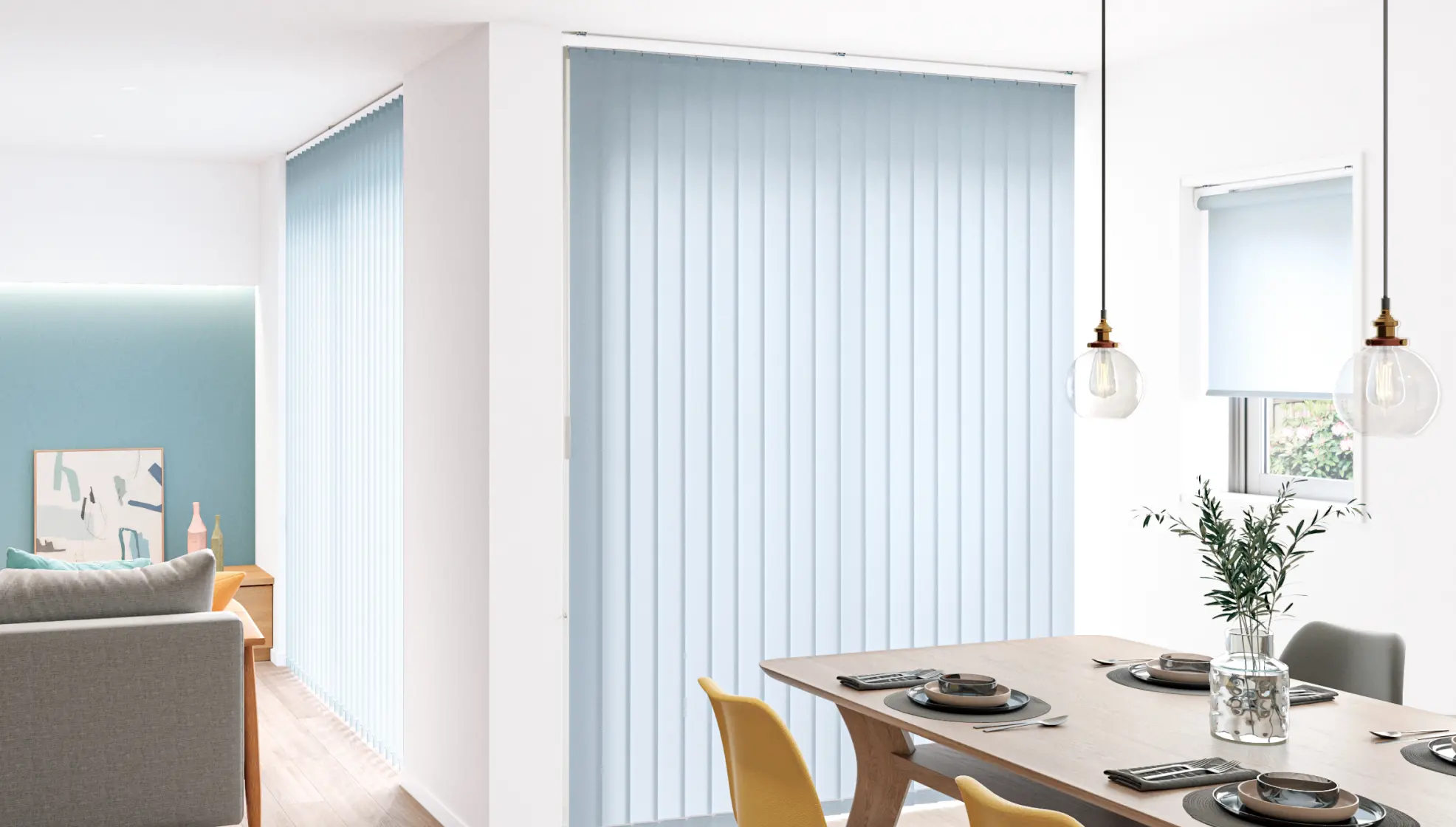

Vertical Blinds

Dual

Lineup

Product Name	DUAL		DUAL SHAPE		DUAL OVERLAP

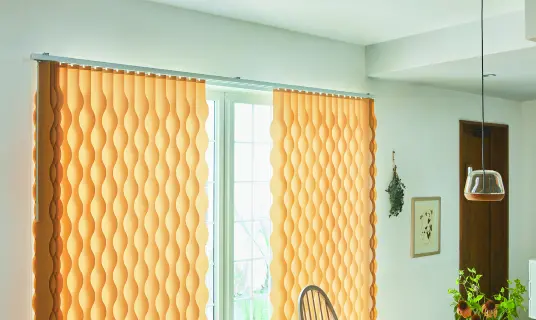

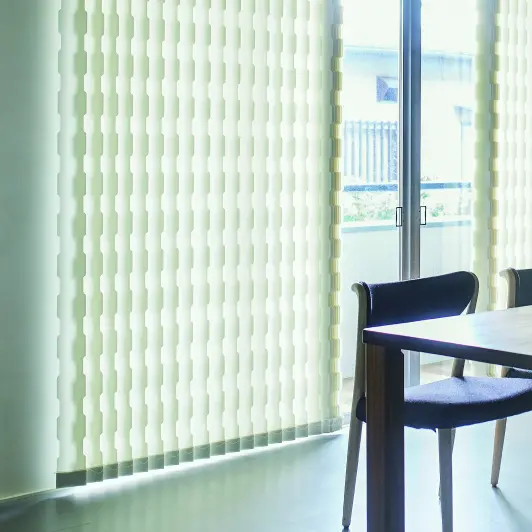

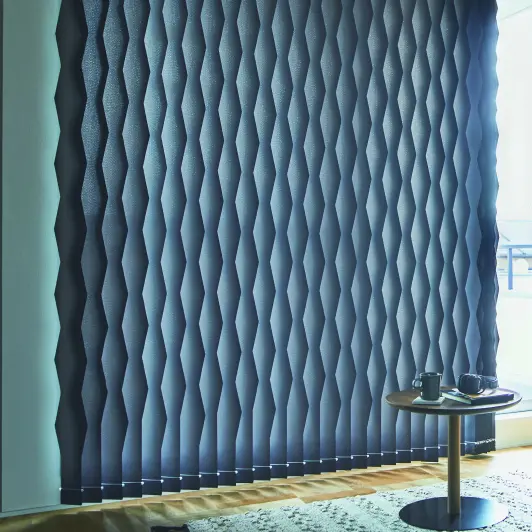

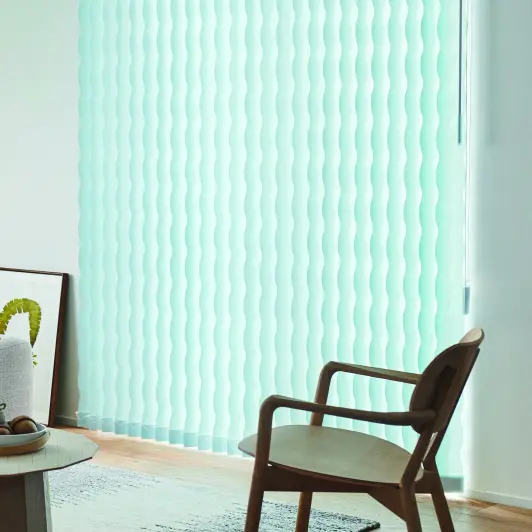

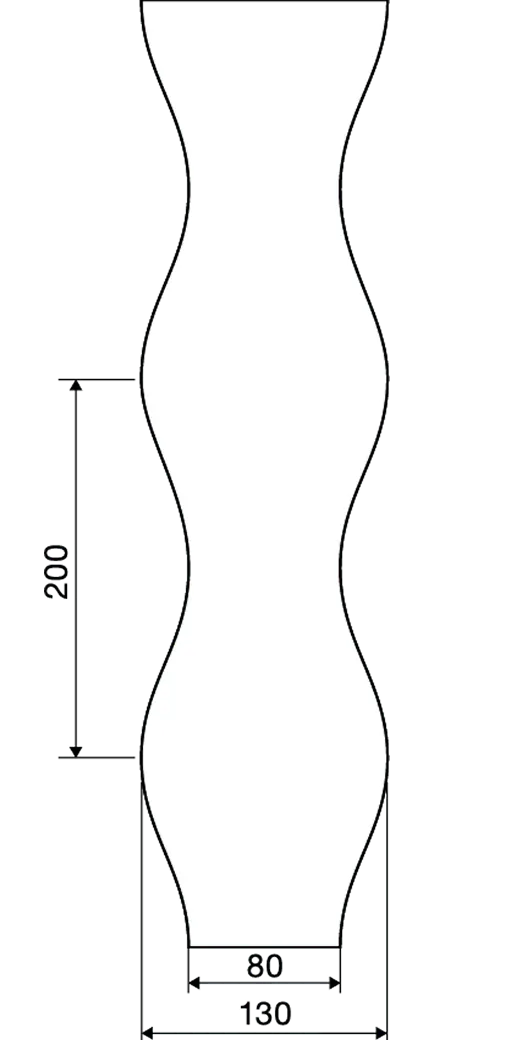

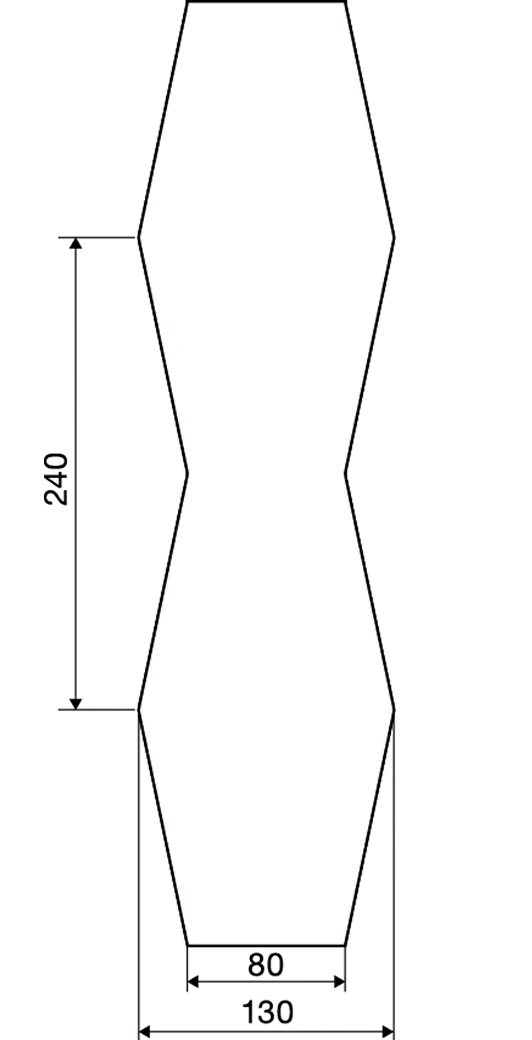

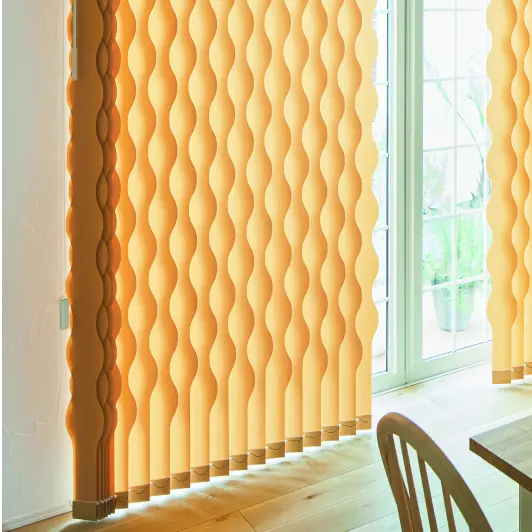

Features	Standard type of Vertical Blinds. Widely available for ordinary windows and large sliding doors.		A type, adding special cutting to both end of the Louvers. Widely available for ordinary windows and large sliding doors.		The wider type of the Louver's overlapping width. Widely available for ordinary windows and large sliding doors.
Louver Width	100 mm / 80 mm *Corresponding Louver width differs by Louver.		─		100 mm
Allowable Size	Product Width	300 - 4,000 mm (5,000 mm)	Product Width	300 - 4,000 mm (5,000 mm)	Product Width	300 - 4,000 mm (5,000 mm)
	Product Height	500 - 6,000 mm	Product Height	500 - 3,000 mm	Product Height	500 - 6,000 mm
	Maximum Area	12 m²	Allowable size differs by design type. Headrail-to-floor height of wand type (option) is up to 3,000 mm. ( ) is the case of the jointed track.		Maximum Area	12 m²
	Allowable size differs by Louver. Headrail-to-floor height of wand type (option) is up to 3,000 mm. ( ) is the case of the jointed track.				Allowable size differs by Louver. Headrail-to-floor height of wand type (option) is up to 3,000 mm. ( ) is the case of the jointed track.

Parts Color

Part color: White

Sample image is cord & wand type.

Part color: Brown

Sample image is cord & wand type.

Part color: Greige

Sample image is cord & wand type.

Part color: Black

Sample image is cord & wand type.

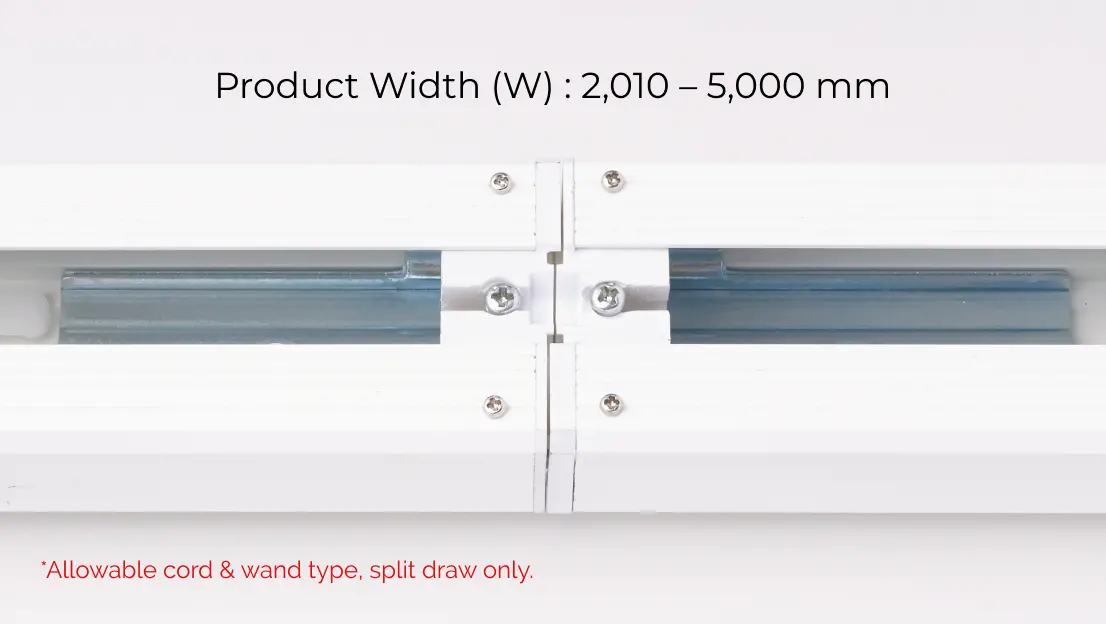

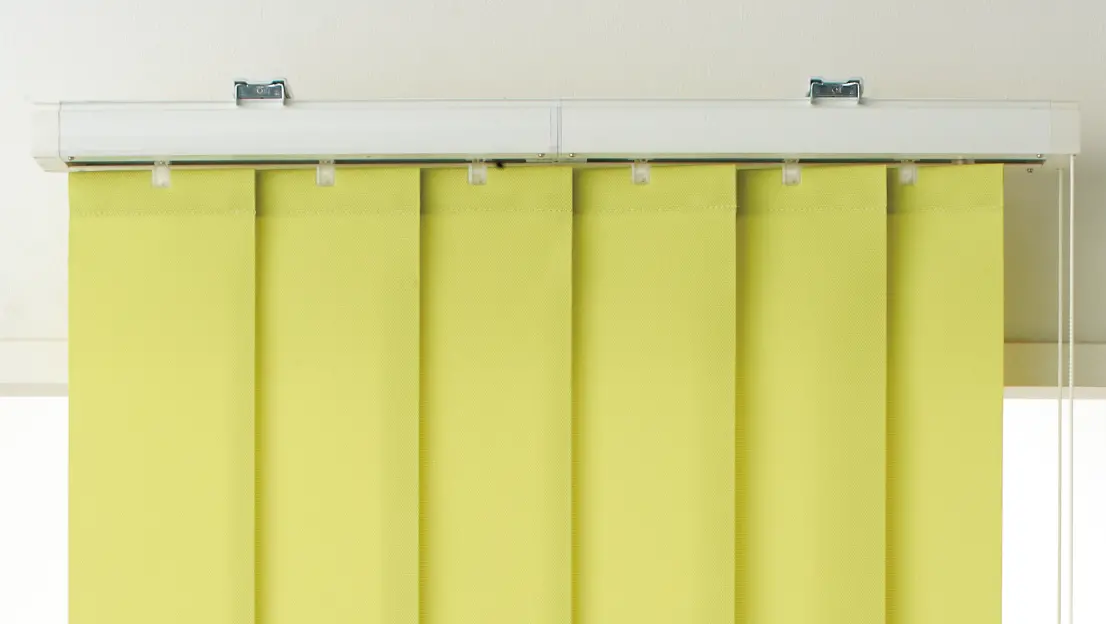

DUAL with A Jointed Track

Jointed track part

Not a noticeable design from the front

It is a type that the Track has been divided into two pieces and you can connect them at construction sites.
Easily to carry and construct, at a place where a long Track is impossible to carry by the elevator such as high-rise floors of apartments and buildings.

Operation System

	Operation Method
Cord &Wand Type (Standard)	Use the drive cord to open/close the Louver, and adjust the angle with the operation wand. The drive cord is useful for opening/closing wide windows.	WandType（No additional charge）	Opening/closing and angle adjustment of the louver can be performed only with the operation wand. The operation method is simple. Because there is no drive code, the operation unit is compact and beautiful. Not allowable if the product height3,010 mm or more. Not allowable Jointed Track.
POINT DUAL allows you to "open a little" using Wand. The Cord & Wand Type can be opened/closed with just the wand without using a Cord. Easy to open/close so you can get in and out. When the product height and installation height are 3,010 mm closing operations are not possible with the wand. Only the Louver angle adjustment can be operated with the Wand.

Operation Method

Cord &Wand Type (Standard)

Use the drive cord to open/close the Louver, and adjust the angle with the operation wand.
The drive cord is useful for opening/closing wide windows.

WandType（No additional charge）

Opening/closing and angle adjustment of the louver can be performed only with the operation wand. The operation method is simple.
Because there is no drive code, the operation unit is compact and beautiful.

Not allowable if the product height3,010 mm or more.
Not allowable Jointed Track.

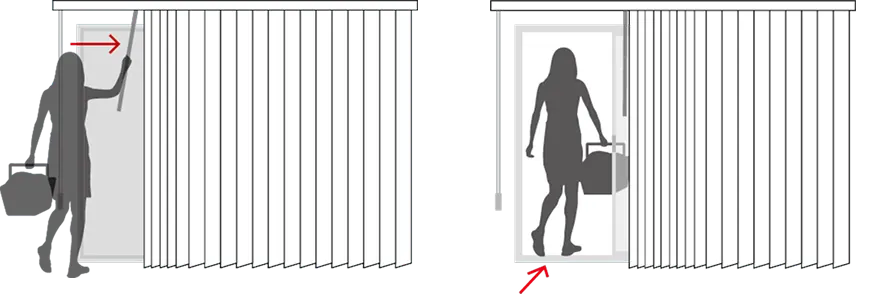

POINT

DUAL allows you to "open a little" using Wand.

The Cord & Wand Type can be opened/closed with just the wand without using a Cord. Easy to open/close so you can get in and out.

When the product height and installation height are 3,010 mm closing operations are not possible with the wand. Only the Louver angle adjustment can be operated with the Wand.
